Setting Up Your System Hardware
2 - 21

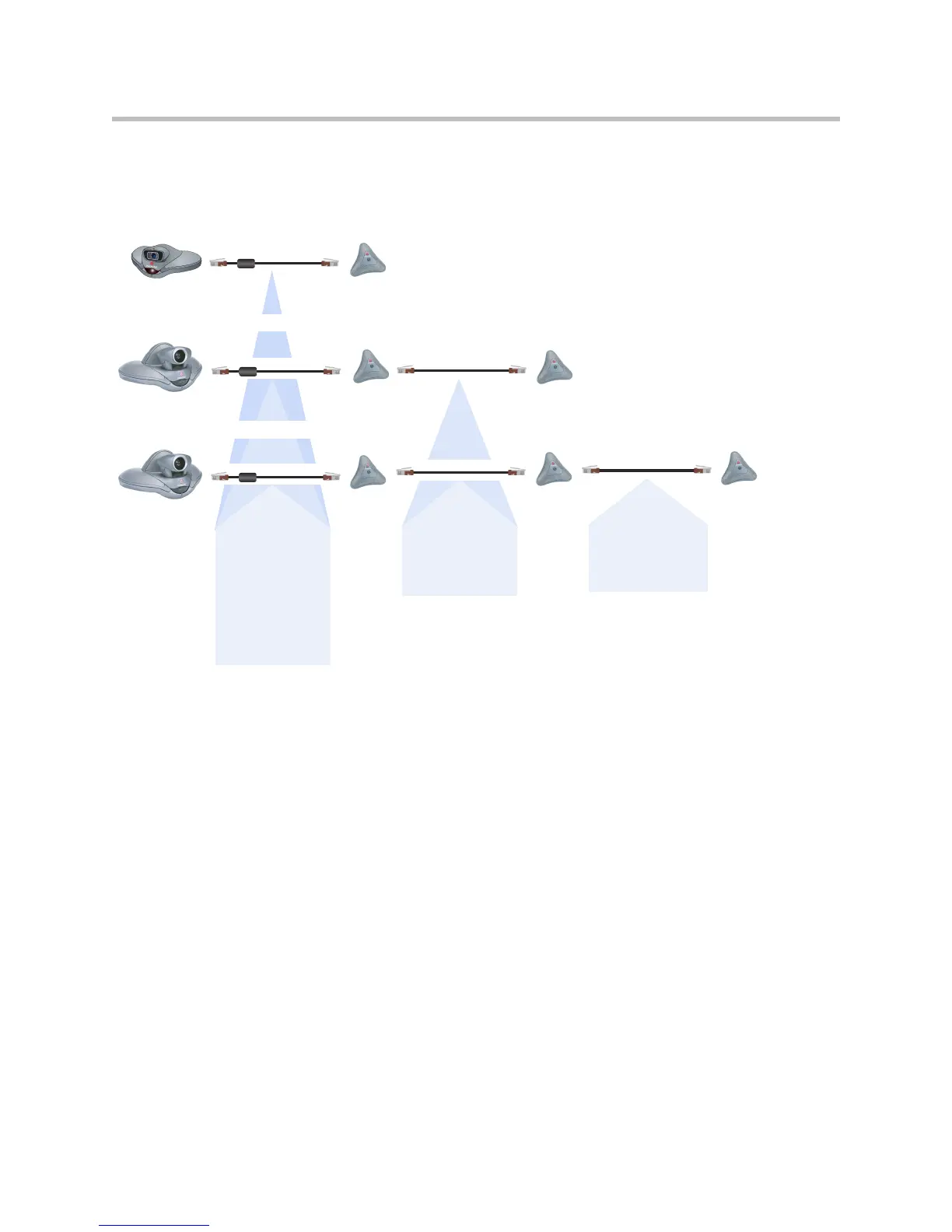

The following diagram shows microphone connection options for VSX set-top
systems.
.
Any set-top or component system
VSX 7000 or any component system
VSX 7000 or any component system
50 ft (15 m)
2457-20910-050
or 30 ft (9 m)
2457-20910-001
The ferrite bead
must be at the
end connected
to the system.
30 ft (9 m)
2457-20910-003
or 10 ft (3 m)
2457-20910-002
30 ft (9 m)
2457-20910-003
or 10 ft (3 m)
2457-20910-002
