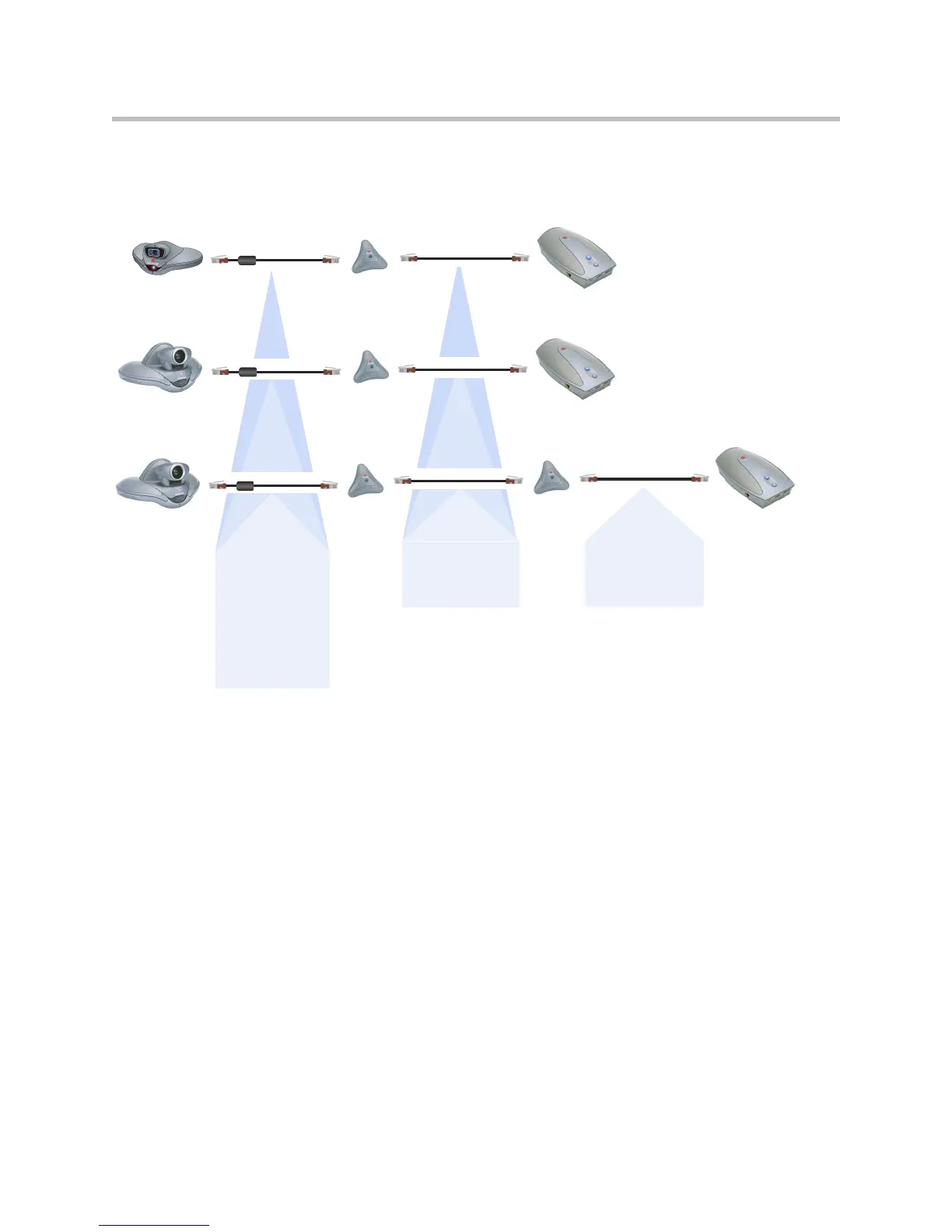

The following diagram shows supported cable configurations for connecting
a Visual Concert VSX with one microphone or two microphones.
.
50 ft (15 m)
2457-20910-050
or 30 ft (9 m)
2457-20910-001
The ferrite bead
must be at the
end connected
to the system.
VSX 5000
VSX 6000
VSX 6000A
VSX 7000
VSX 7000s
30 ft (9 m)
2457-20910-003
or 10 ft (3 m)
2457-20910-002
30 ft (9 m)
2457-20910-003
or 10 ft (3 m)
2457-20910-002
The Visual Concert VSX
and microphones may be
connected in any order.
