- 37 -
Utilisation
Water connection

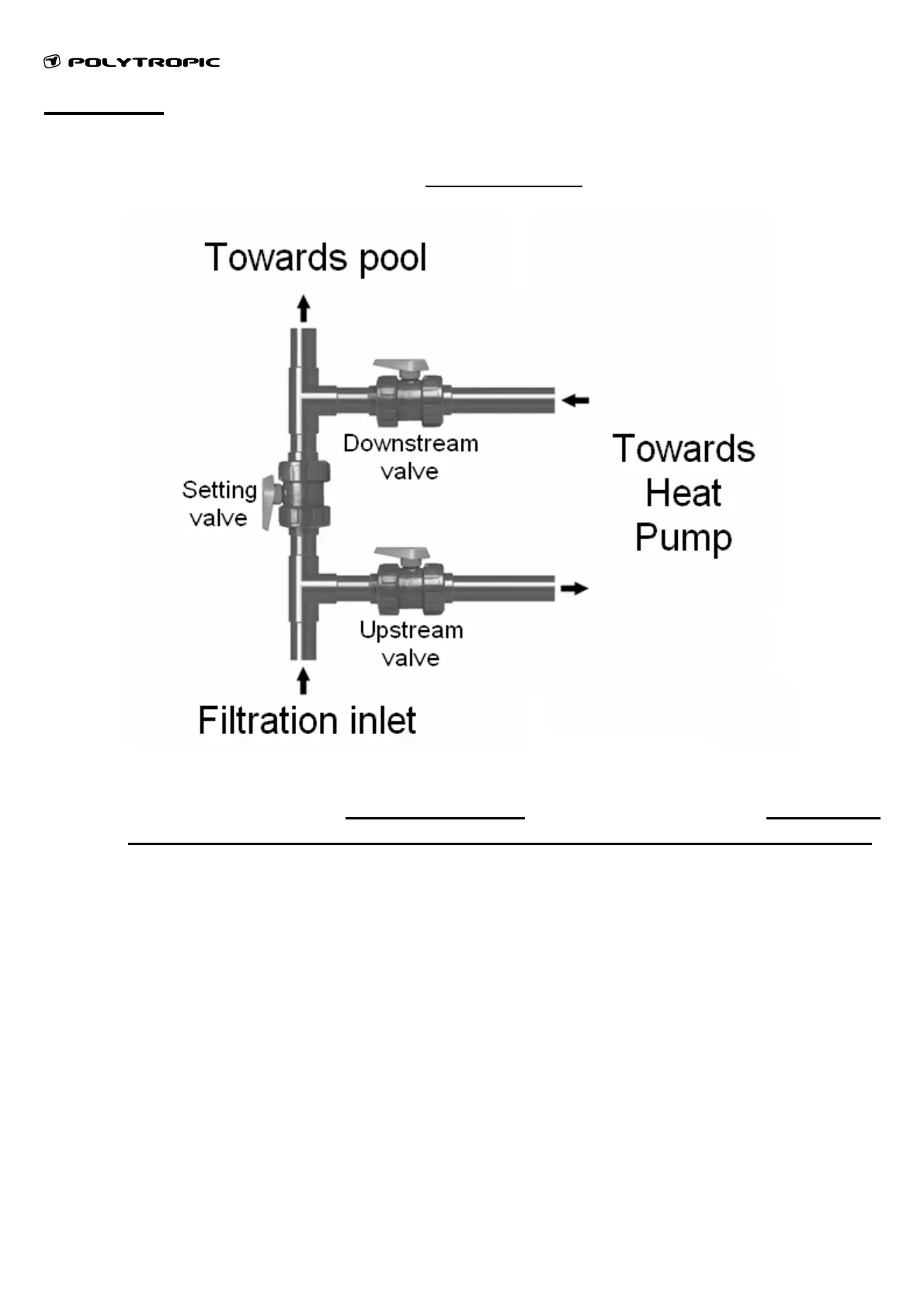

By-pass diagram
Warning, the by-pass must be fixed on a wall or on a support, so that by-
pass and tubes weight are not supported by the heat pump connexions!
After connecting water to the pool system, complete with a suitable by-pass and
electrical connections by a qualified engineer.
Be sure that:
• Appliance is horizontal and on a solid ground.
• Water circuit is well connected (no leaks and no chance of injury due to
badly fitted hydraulic couplings).
• Electrical circuit is well connected (all cables tightened correctly at
terminals and intermediate circuit breaker), insulated and earthed correctly.
• The installation requirements described previously are strictly adhered to.
