POMCube iCAN NetZero - Solar Controller Functions; BCMS Module Overview

13
11
B1-
Battery bus negative (-) #1.
12
B2-
Battery bus negative (-) #2.
13
B3-
Battery bus negative (-) #3.
14
B1+
Battery bus positive (+) #1.
15
B2+
Battery bus positive (+) #2.
16
B3+
Battery bus positive (+) #3.
(5) BCMS Module

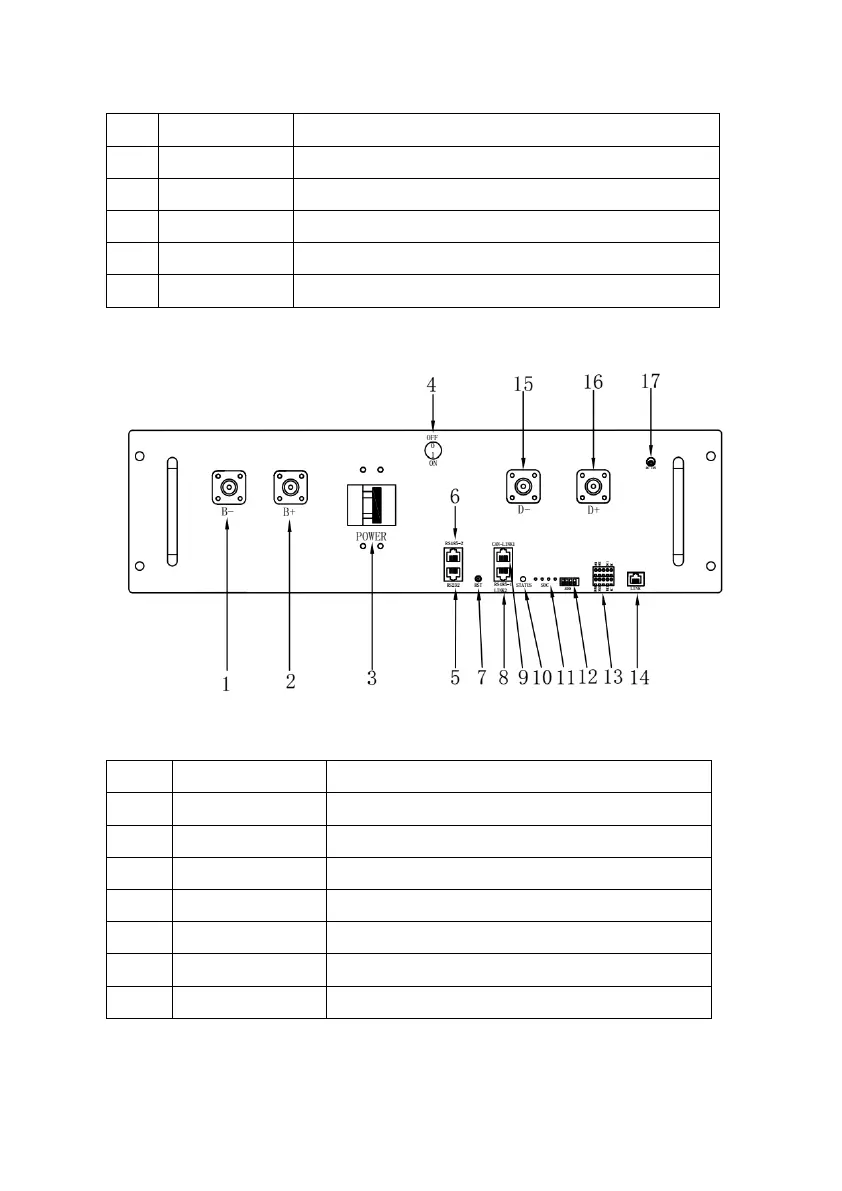

Figure 4.4.5: BCMS Front View
Table 4.4.5: BCMS Parts
No.
Parts
Functions
1
B-
Battery bus positive (-).
2
B+
Battery bus negative (+).
3
POWER
Power switch.
4
Power Switch
Reserved.
5
RS232
For the manufacturer’s debugging.
6
RS485-2
Reserved, RJ45 port, follow RS485 protocol.
7
RST
Reset BCMS module.
