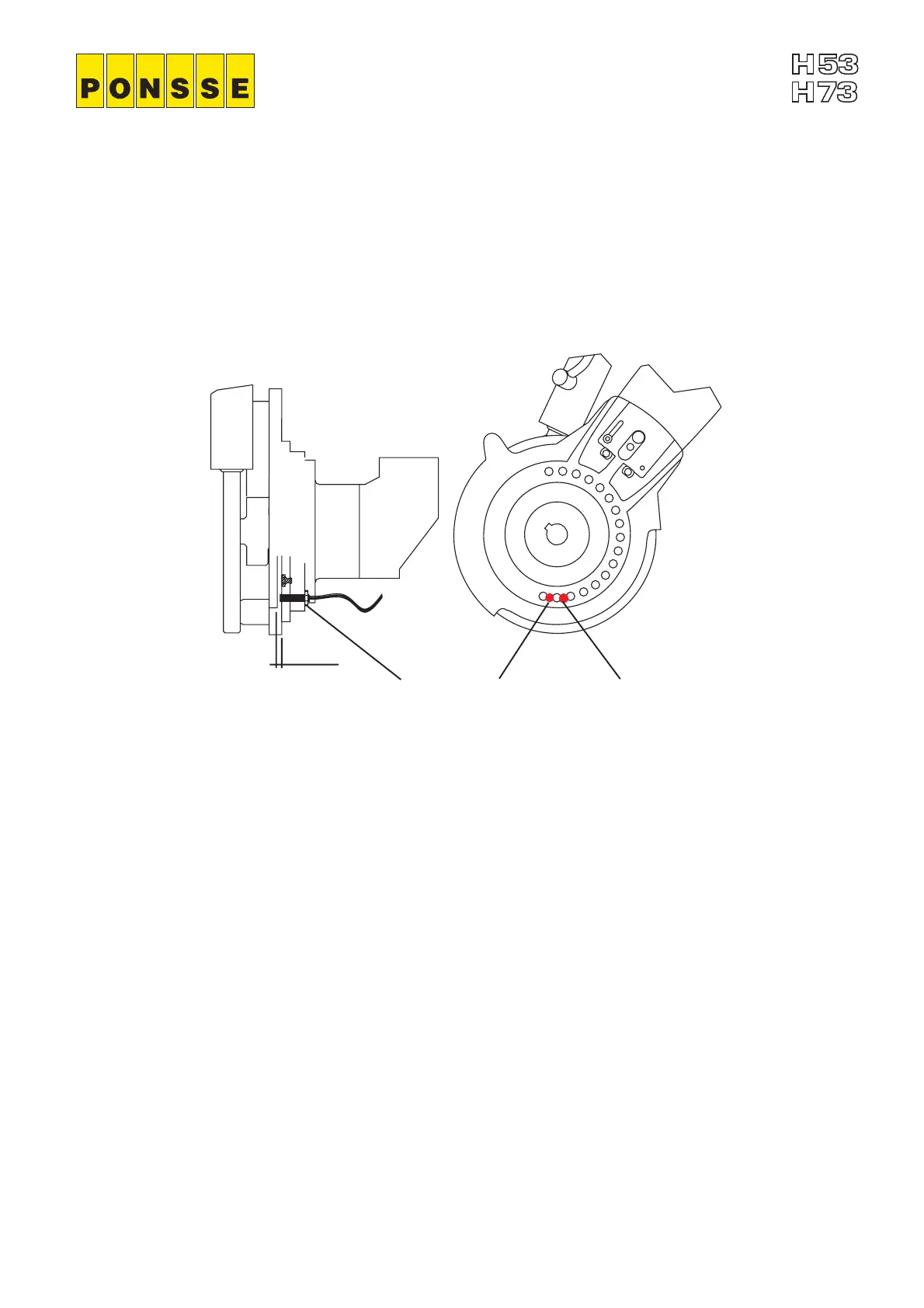

1. Turn the engine off and make sure no one is able to start
the machine.
2. Turn the saw bar to its upper position and remove the old
sensors.
3. Use a thin-bladed screwdriver or similat tool to check that
the detector holes do not coincide with the sensor
locations (A, B).
4. Lightly screw the new sensors into place until they are
seated.
5. Unscrew the sensors one revolution to obtain a 1 mm gap.
6. Tighten the locking nut C.
Adjustment and service
instructions
Saw sensor replacement
