PONSSE H73 - Pressure Adjustment: Harvester Head Tilt Cylinder

Service training
000
04052000
7.7
22
1. Disconnect the electric cable from harvester head.
2. Tilt the harvester head to a horizontal position.

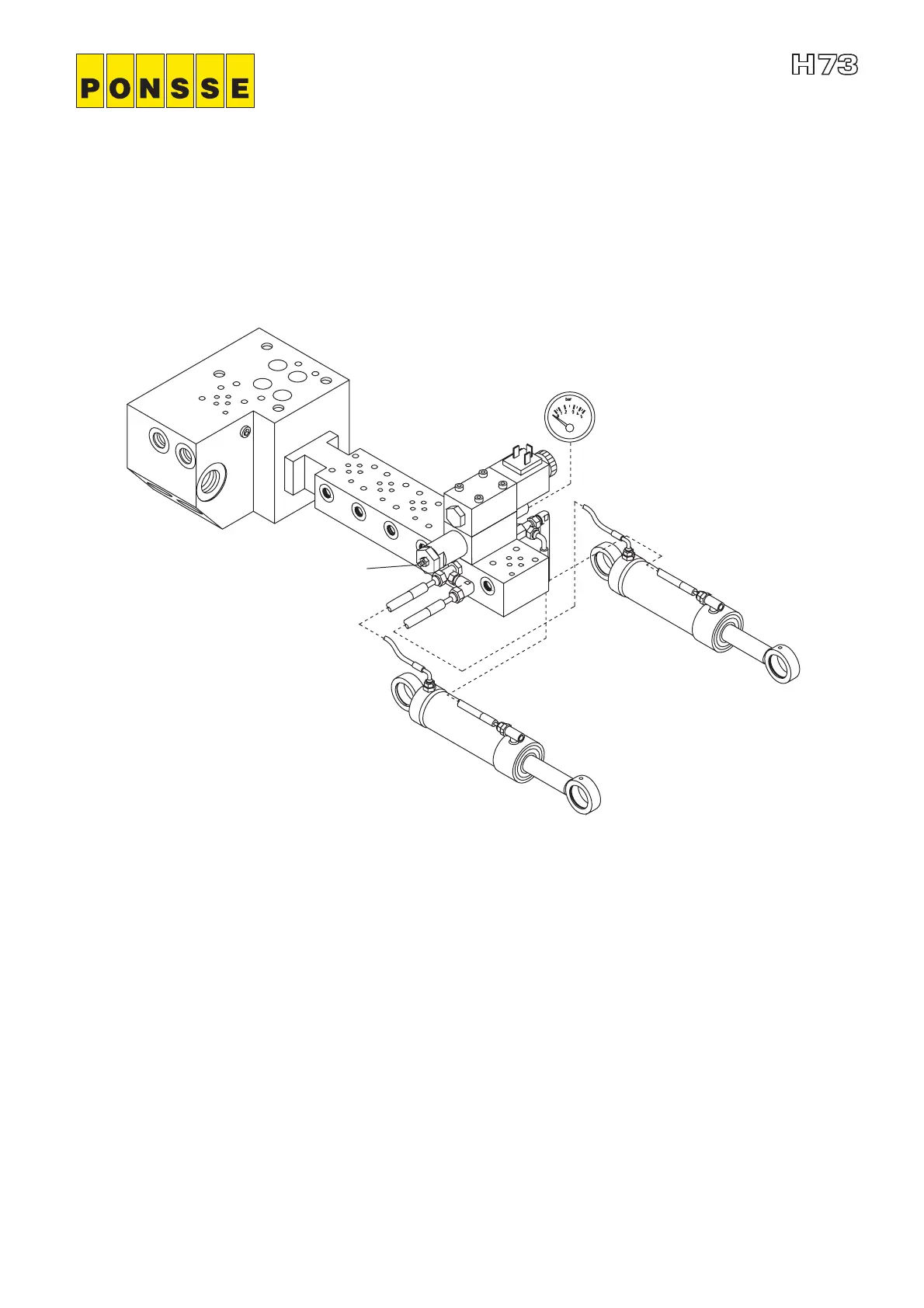

3. Connect a pressure gauge to the measurement connector.
4. Start the engine and set the constant pressure:
- engage the working brake and constant rpms
- turn on the harvester head main switch
5. Open the lock and adjust the pressure reducer valve by turning adjustment
screw no. 22 to obtain 120 bar / 1740 psi.
6. Lock the adjustment screw and connect the electric cable.
Pressure adjustments
Harvester head tilt cylinder pressure adjustment
(tilt)
