PONSSE H73 - Technical Data

Service training
000
28022000
2.1
H73001
Technical data
1
2
3
11
10
9
8
7
6
5
4
12
13
15
14
18
17
16
5
3

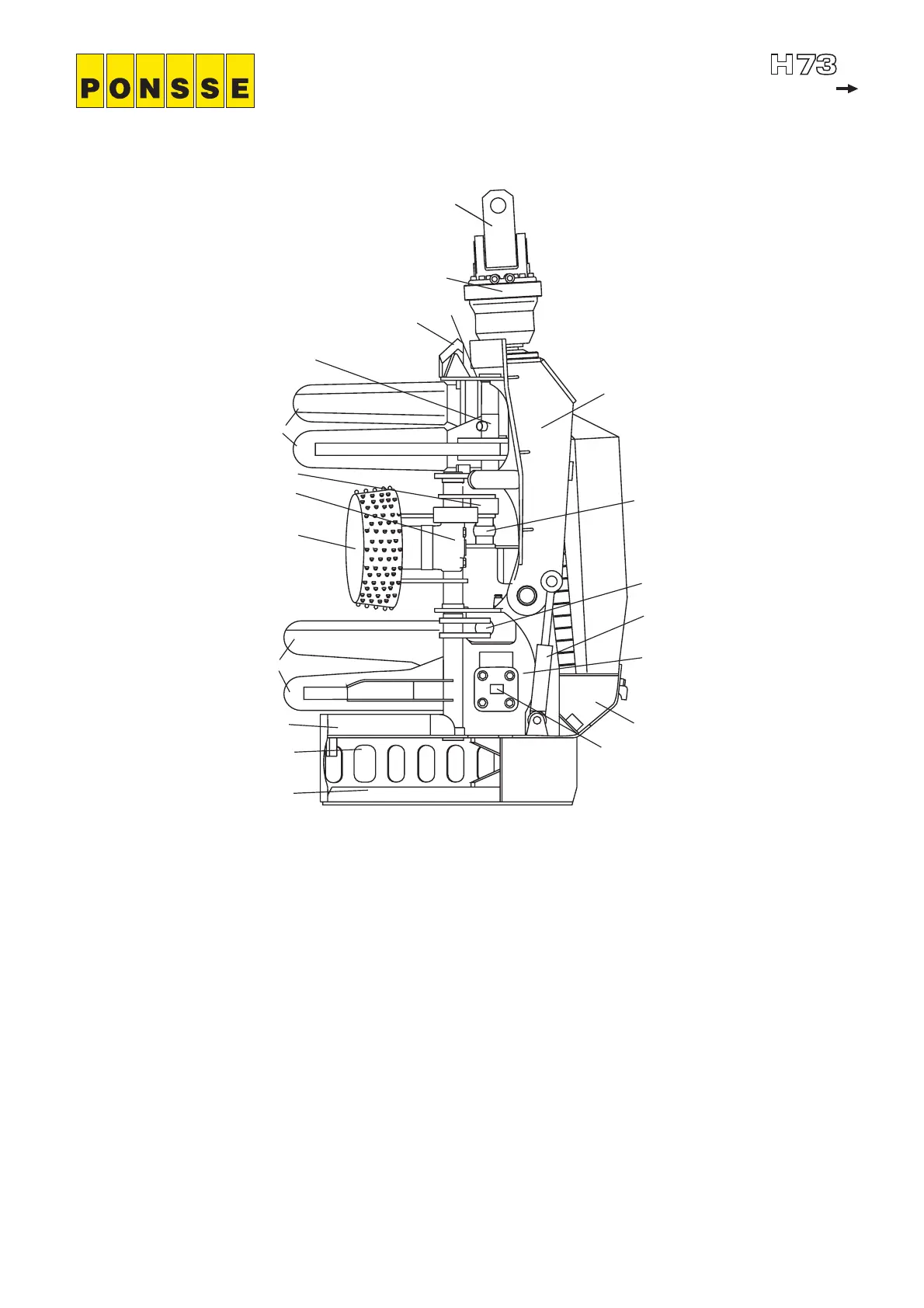

1. Chain lubricating oil container
2. Saw bar
3. Feed rollers
4. Reaction bar
5. Delimbing knives (front)
6. Delimbing knife cylinder (front)
7. Feed roller cylinder
8. Cradle
9. Tilt cylinder
10. Saw bar cylinder
11. Saw motor
12. Rotator
13. Serial number
(Give the serial number when
ordering spare parts or otherwise
contacting the manufacturer)
14. Delimbing knives (rear)
15. Delimbing knife cylinder (rear)
16. Swing coupling
17. Feeding motor (upper side)
18. Feeding motor, 2 pcs (lower
side)
