Service training
000
20032000
6.8
H73001-H73202
Saw Feed (fast) Feed (slow) Rear knives Feed rollers
pressing
Saw feed Front knives Tilting Rotator
Saw feed

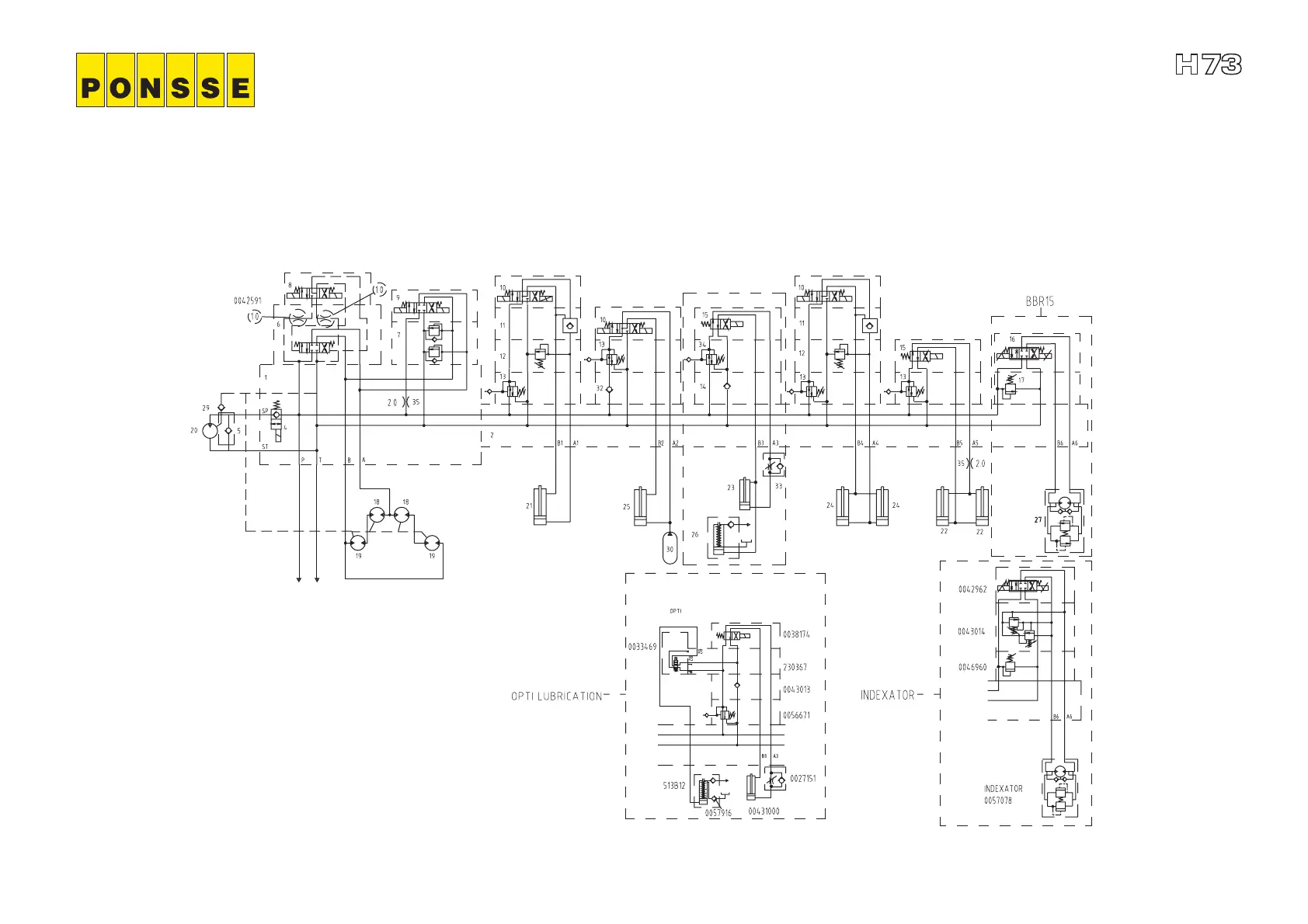

Hydraulic diagram
2-power, F11-19
