Porter-Cable PCE980 - Operation and Controls; On;Off Switch Operation

ENGLISH
6
Fig. I
20

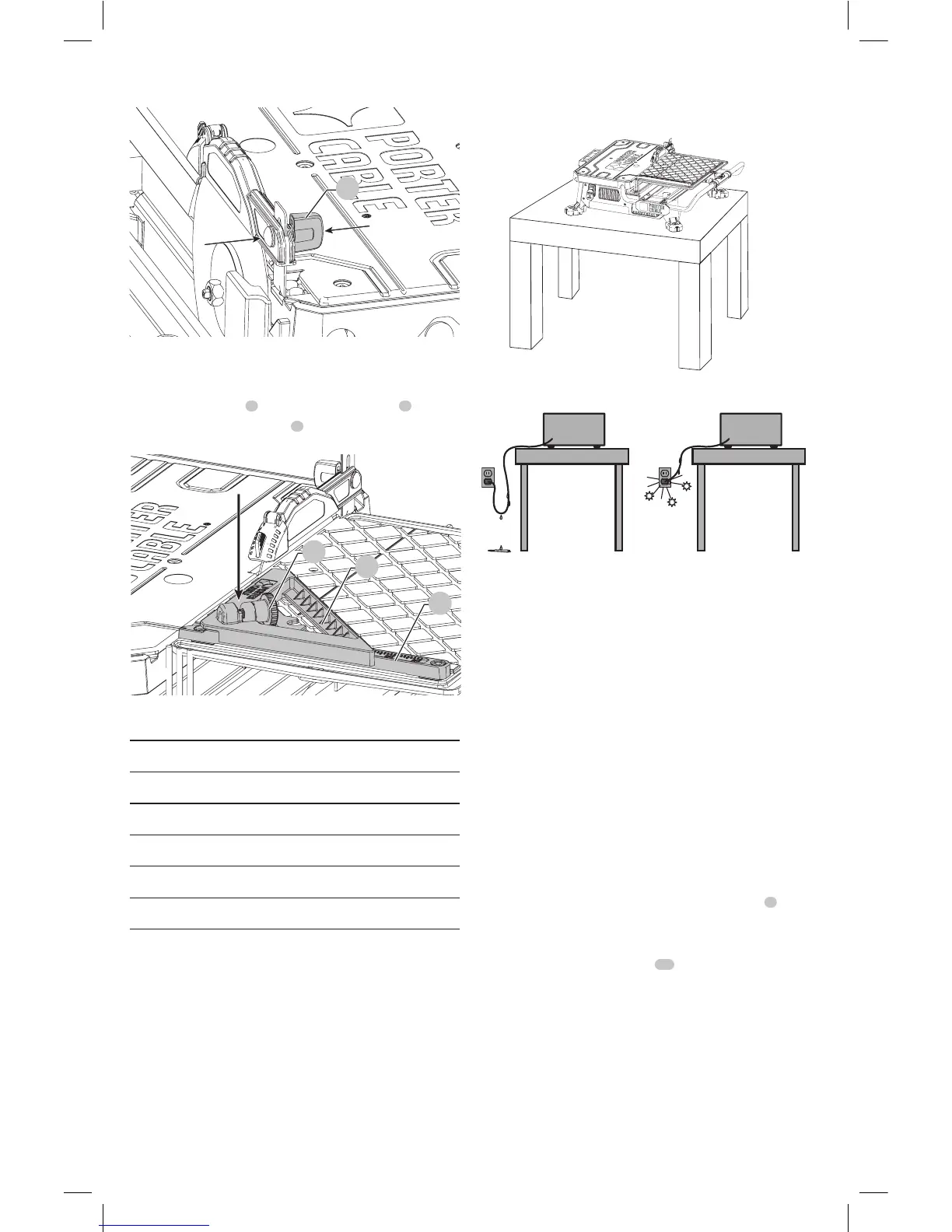

To Attach The Edge Guide (Fig. J)
The edge guide can be installed 1 of 2 ways, 45° or 90°.
1. Place edge gude
7
on the cutting cart fence
9
..
2. Turn the edge guide lock
8
clockwise totighten.
Fig. J
9
7
8
Specifcations
Voltage 120 V
Amps 6.5A
RPM 3600
Depth of Cut 1.25" (32 mm)
Blade Sizes 7" (178 mm)
Arbor Size 5/8" (16 mm)
OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury. Make sure the
switch is in the OFFposition.
Tool Placement (Fig. K)
Place saw on a stable, levelsurface.
Fig. K
Fig. L
On/Off Switch (Fig. L, M)

WARNING: To avoid the possibility of the appliance
plug or receptacle getting wet, position the wet tile
saw to one side of a wall mounted receptacle to
prevent water from dipping onto the receptacle or
plug. The user should arrange a “drip loop” in the
cord connecting the saw to a receptacle (Fig. L). The
“drip loop” is that part of the cord below the level of
the receptacle, or the connector if an extension cord
is used, to prevent water traveling along the cord and
coming in contact with thereceptacle. Always plug
the saw into a GFCI receptacle and test to confirm the
GFCI is operatingproperly. If the plug or receptacle
does get wet, DON'T unplug the cord. Disconnect the
fuse or circuit breaker that supplies power to the tool.
Then unplug and examine for presence of water in the
receptacle.
To turn the wet tile saw on, lift up the on/off switch
1
.
The wet tile saw locks onautomatically.
To turn the tool off, push the on/off switchdown.
NOTE: A removable safety lock
26
. can be removed to
deter unauthorizeduse.
