PUMPOIL(FIG.7,8)
Draintanktoreleaseairpressurebeforeremovingthedipstick
or oil drain plug.
Hot surfaces. Risk of burn. Outlet tube, pump head, and
surrounding parts are very hot, do not touch (see the Hot Surfaces identified in
Important Safety Instructions). Allow compressor to cool prior to servicing.
Risk of property damage. Use SAE 40, non-detergent air compressor
oil only. Multi-weight automotive engine oils like 10W30 should not be used in air
compressors. They leave carbon deposits on critical components, thus reducing
performance and compressor life.
NOTE: Crankcase oil capacity is approximately 10.6 fluid ounces (313.5 mL).
CHECKING
1. Set the Auto/Off lever to "Off".
2. Place unit on a flat level surface.
3. Remove dipstick (Q) and check oil on dipstick for visual

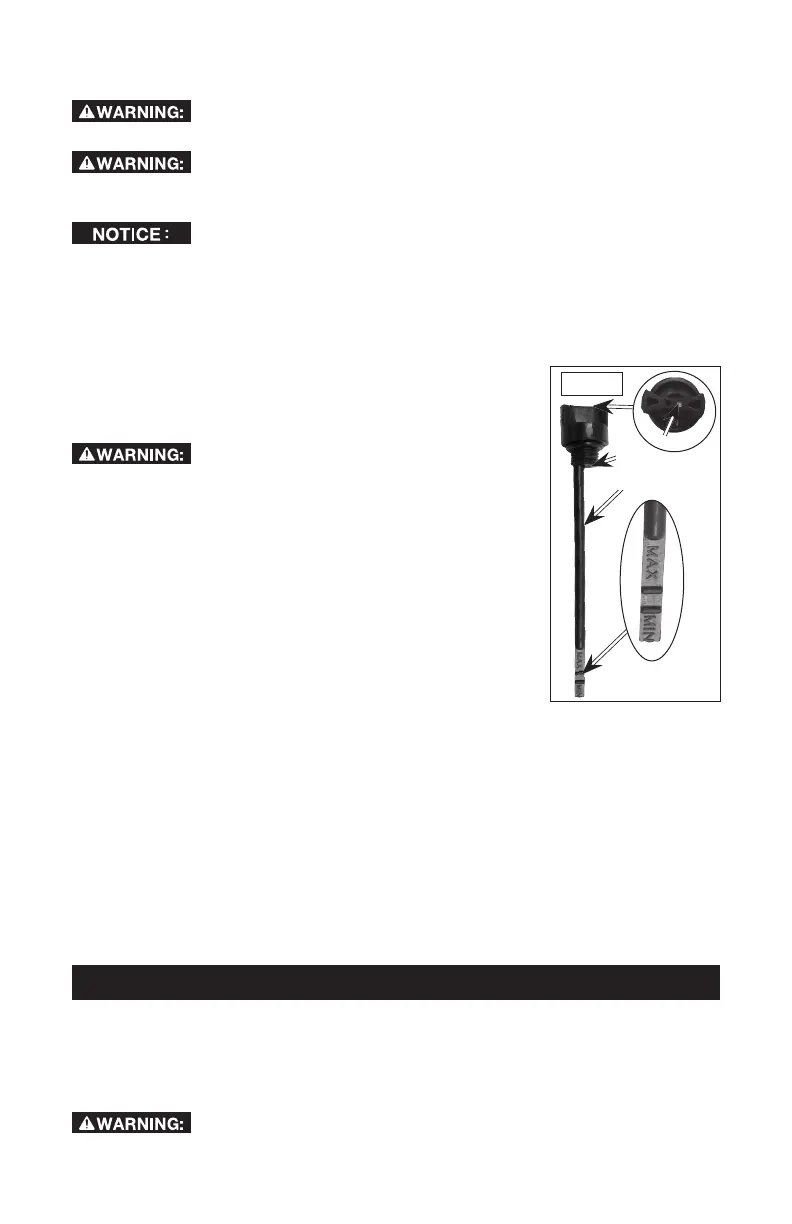

FIG.8
Q
V
V
signs of contaminants (water, dirt, etc).
Makesureairvent(V)indipstickisfree
fromdebris.If air vent is blocked pressure can build
in crankcase causing damage to air compressor and
possiblepersonalinjury.
4. Wipeoilfromdipstick.
5. Replace dipstick and allow oil to collect on dipstick.
6. Remove dipstick and check oil level on dipstick. The
MAX mark on the dipstick indicates full and MIN mark
indicates oil is needed. If oil level is below the MIN mark,
slowly add oil until it reaches the MAX (full) mark on the
dipstick.
7. Replace dipstick (Q).
CHANGING
1. Set the Auto/Off lever to "Off".
2. Allow the unit to cool.
3. Remove air compressor plug from outlet.
4. Remove the dipstick (Q).
5. Remove the oil drain plug (R) and drain oil into a suitable container. (Tilting the
compressor towards the drain plug will assist in draining.)
6. Replace oil drain plug (R).
7. Slowly fill crankcase with SAE 40, non-detergent air compressor oil. Crankcase
capacity is 10.6 fluid ounces (313.5mL). Oil level should be to the MAX mark on
the dipstick.
NOTE: If the oil is added too quickly, it will overflow and appear to be full.
8. Replace dipstick.
STORAGE
Before you store the air compressor, make sure you do the following:
1. Review the Maintenance section on the preceding pages and perform
scheduled maintenance as necessary.
2. Drain water from air tank. See To Drain Tank under Maintenance section for
instructions.
Waterwillcondenseintheairtank.Ifnotdrained,waterwill
corrodeandweakentheairtankcausingariskofairtankrupture.
