G-2108/G-3106 User’s Manual Chapter 2: Setup and Use
24
Adjusting the Position of Media Sensor
1. Lift the top cover.
2. Push the Printhead Release Lever to release the Printhead Module.
3. Lift the Printhead Module to expose the Media Sensor cover (see Figure 7-1).
4. Remove the Media Sensor cover and slide the Media Sensor to the appropriate position (see Figure 7-3, 7-4 and
7-5).
5. Replace the media sensor cover.
Note: If there is more than 1 column of media, the Media Sensor must be positioned under any of the columns.
The Media Sensor CAN NOT be positioned right under the horizontal gap or over the outer edge of the media, or
an error will occur.

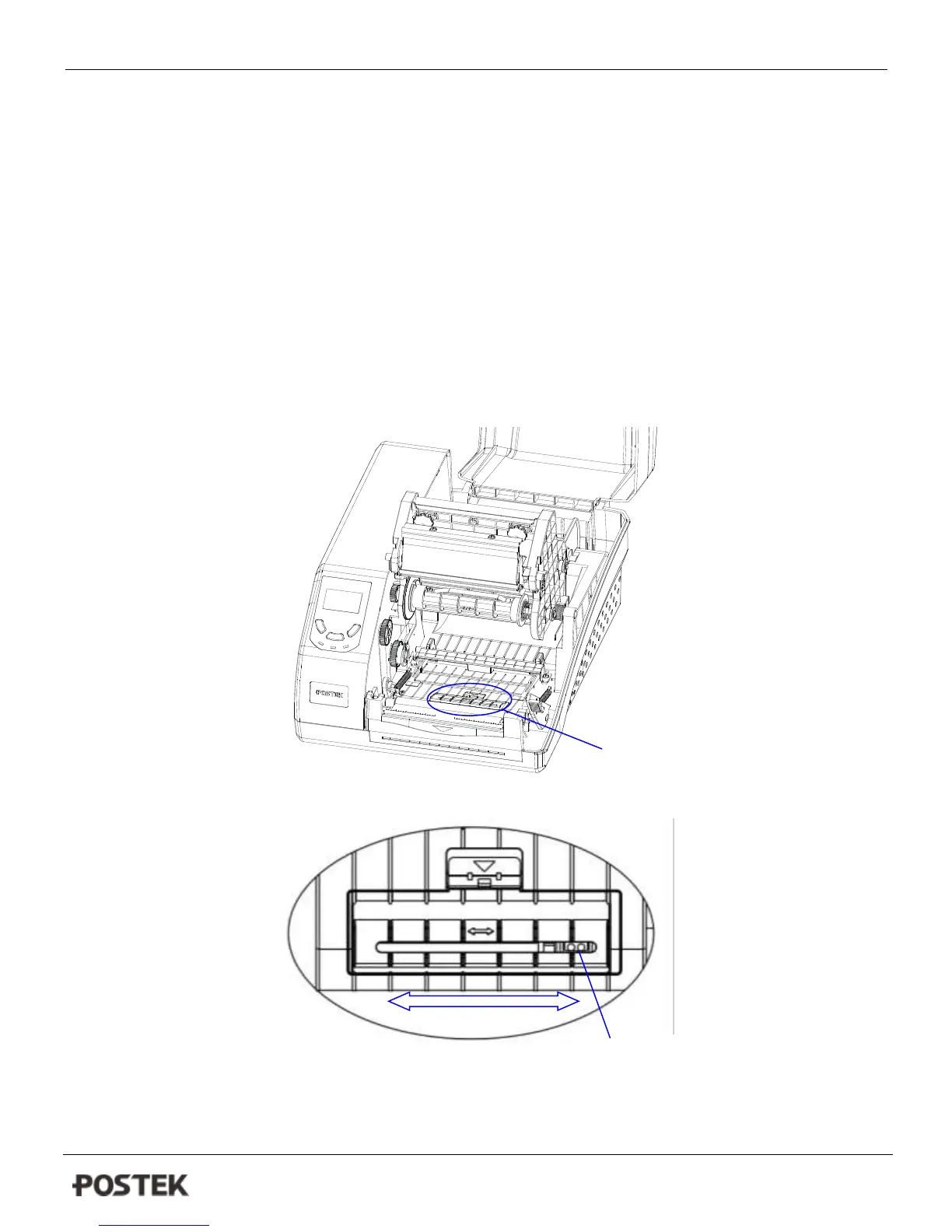

Figure 7-1
Figure 7-2
Reflective media
sensor cover
