PRK-5000 Operation Manual
- 3 -
①
②
①
③
④
⑤
⑥
⑦
⑨
⑩
⑧
⑪

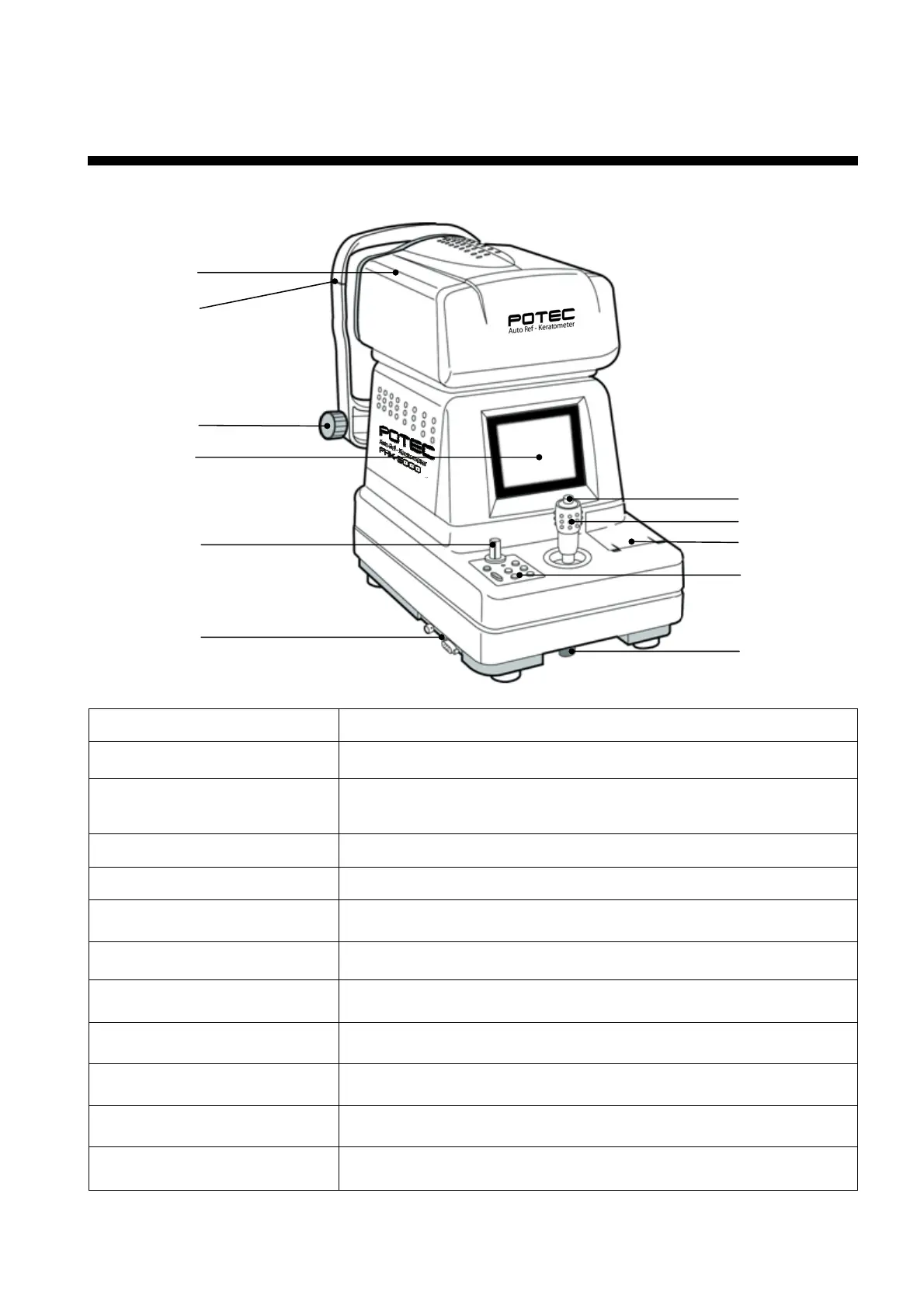

3. Description
3.1 Main Unit
Name Function
① Measurement Head
Unit that performs measurement.
② Height Adjustment mark
Alignment the height of the examinee’s eye with this mark by
adjusting the height of chin rest.
③ Height Adjustment lever Align the height of chin rest up and down.
④ LCD Monitor
Monitor that displays Measurement.
⑤ Stage Holding Knob Holds the movement of stage.
⑥ Measurement button Press this button for measurement.
⑦ Operation Lever Use this lever for alignment and focusing.
⑧ Printer
Print the measured result.
⑨ Operation Panel
There are function buttons.
⑩ Clamping Bolt
Makes the system stage fixed.
⑪ Connectors VGA Video Output, RS-232 Interface and USB port
