PRK-5000 Operation Manual
- 19 -
6. Other Measurement Modes
6.1 Measuring Cornea Diameter (SIZE Mode)
Diameter of cornea can be measured in the SIZE mode for prescribing contact lens.
The size of pupil can also be measured to see how much it is dilated, and the size of contact
lens can be measured without having the examinee remove it.
(1) Enter the SIZE mode.
Press SIZE button in the Measurement MODE. Press SIZE button again in order to go
out SIZE mode.
(2) Positioning and Focusing
Ask the examinee to look at the red roof of the eye fixation target.

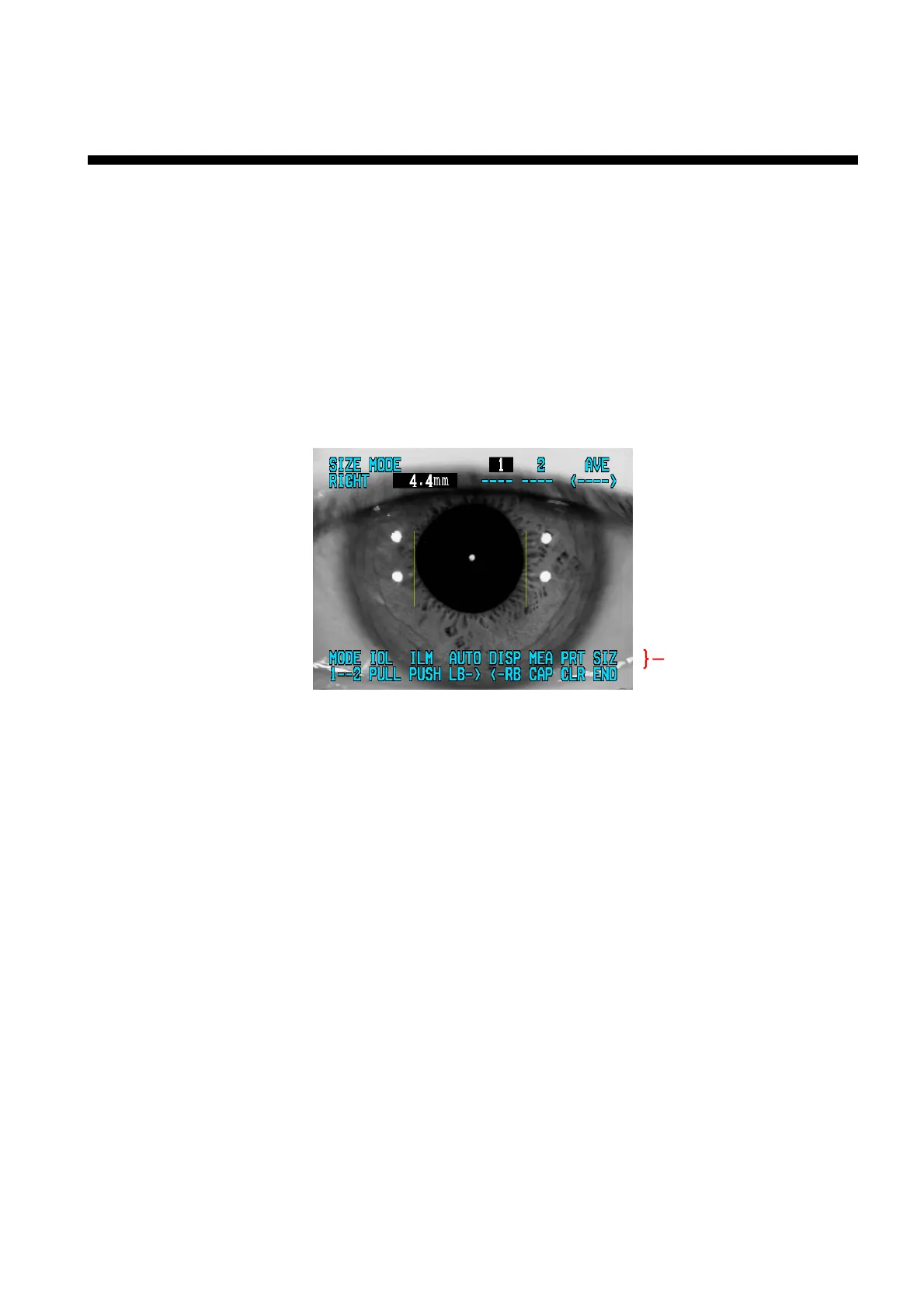

Control operation lever to align the pupil between the two vertical bars
z If the diameter of contact lens is going to be measured, focus on the edge of lens.
z If the diameter of pupil is going to be measured, focus on the iris.
Upper row : name of button
Lower row : function
To Next Page
