7
ASSEMBLY
WARNING: Before using chain
saw, ens ure all fasteners are secure.
CARTON CONTENTS
S Chain Saw (f ull y assembled)
S Bar Sheath
Examine parts for damage. Do not use
damaged part s.
NOTE: If you need assist a nce or find that
part s are missing or damaged, please call
1-800-554- 6723.
ASSEMBLY
Your unit is fully assembled; no assembl y
is requir ed.
OPERATION

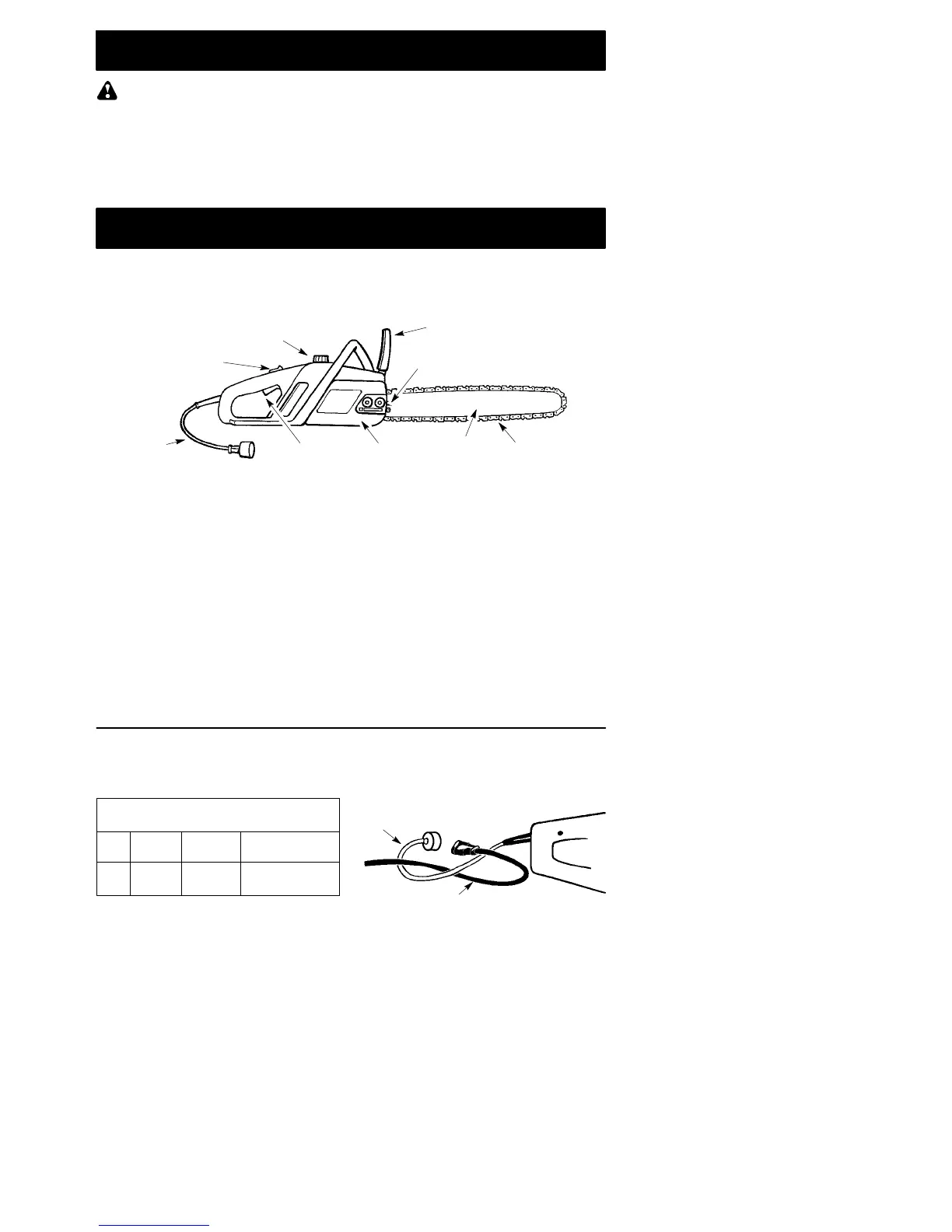

KNOW YOUR SAW
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERA TING YOUR
CHAIN SA W.
Compare the illustrations with your unit to familiarize yourself with the loca-
tion of the vari ous control s and adjustm ents. Save thi s manual for future reference.
Bar Oil Cap
Trigger Switch
Power
Cord
Chain
Bar
Chain Adjustment ScrewTrigger Lockout
Button
Handguard
Bar Clamp
TRIGGER SWITCH
The
TRIGGER SWITCH is used to turn on
the unit. Squee ze the trigger switch to
operate the unit after lock --out button
has been pushed forward. Release the
trigger to turn the unit off.
TRIGGER LOCK--OUT BUTTON
The
TRIGGER LOCK-- OUT BUTTON is a
control feature designed to prevent the
motor from being accidently s tarted.
When the rear handle is gripped in a nor-
mal cutting position, the lock --ou t button
can be pushed in by the thumb, permit-
ting the index finger to squeeze the trig-
ger. It is not neces sary to maintain pres-
sure on the lock--o ut button once the
trigger has been engaged.
BAR OIL CAP
The
BAR OIL CAP is used to fill the bar oil
tank.
CHAIN ADJUSTMENT SCREW
The
CHAIN ADJUSTMENT SCREW is
used to a djust the chain tension.
POWER CORD
The
POWER CORD is used to connect
the chain saw to an approved ex tension
cord.
CHAIN TENSION
It is normal for a new chain to stretch dur-
ing fir st 15 minutes of operat i on. You
should check your chain tension frequent-
ly. See
CHAIN TENSION under t he SER-
VICE AND ADJUST M ENT S
section.
OPERATING INSTRUCTIONS
Use only a voltage supply as specifi ed on
your unit.
SELECT AN EXTENSION CORD
MINIMUM WIRE GAUGE
RECOMMENDATIONS
Volts
120
14
A.W.G.*
*American Wire Gauge
25 ft.
(7.67 m)
12
A.W.G.*
50 ft.
(15.24 m)
100 ft.
(30.48 m)
NOT
RECOMMENDED
ATTACH THE EXTENSION CORD TO
YOUR CHAIN SAW
To prevent disconnection fr om unit, se-
cure extension cord t o power cord as
shown in the following illustration.
Power Cord
Extension Cord
