Power Electronics Standalone NB 120 - DIMENSIONS AND WEIGHT; GENERAL DIMENSIONS OF THE EQUIPMENT

NB 120
POWER ELECTRONICS
24
DIMENSIONS AND WEIGHT
DIMENSIONS AND WEIGHT
The dimensions, gravity center and the weight of the NB 120 equipment are detailed in this section.

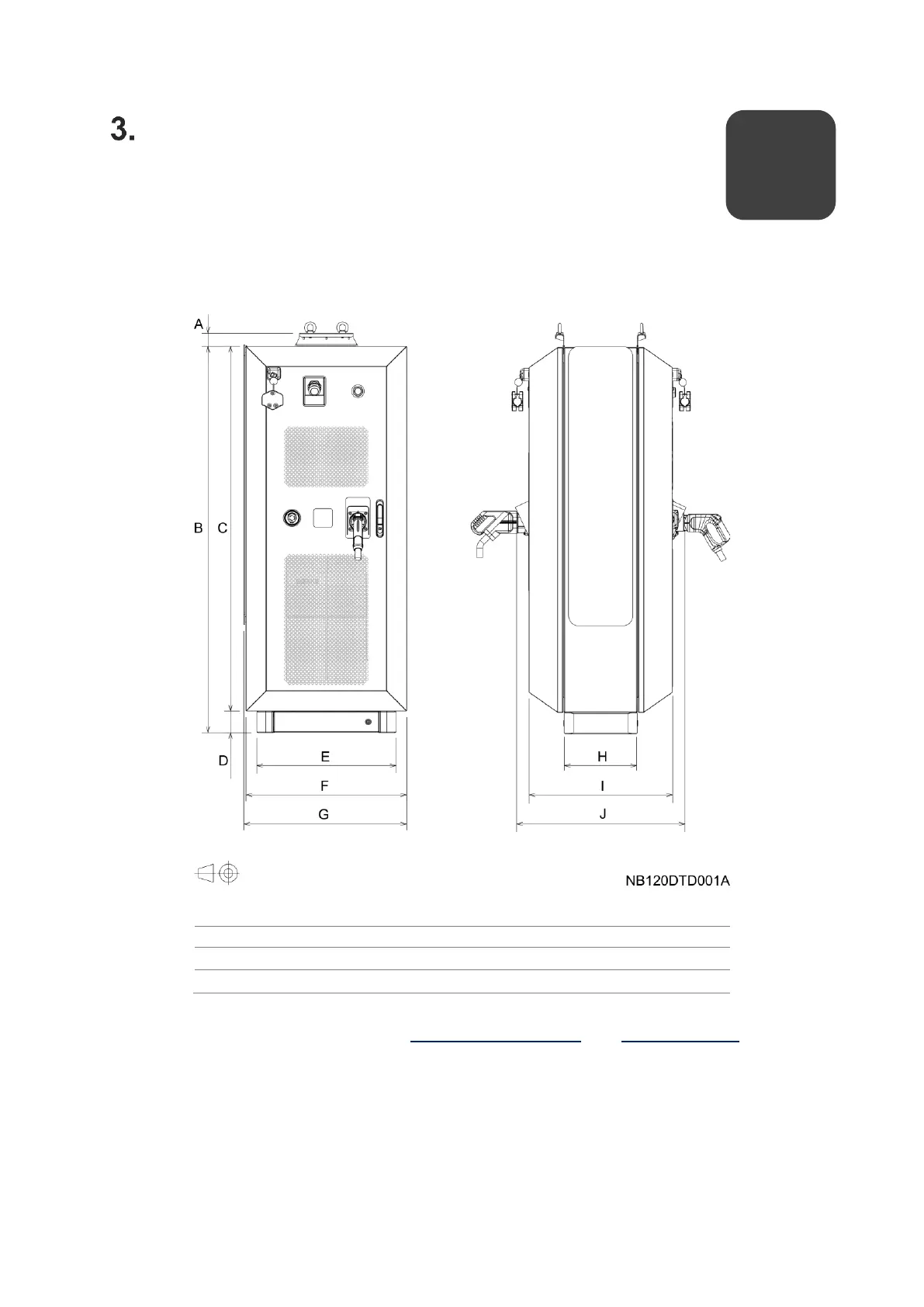

The right and front view, from left to right, are shown below:
GENERAL DIMENSIONS
A
B
C
D
E
F
G
H
I
J
mm
60
1800
1700
100
650
750
760
340
670
796
in.
2.36
70.87
66.93
3.94
25.59
29.53
29.92
13.39
26.39
31.34
Note: The bottom-up view is shown in the "Anchoring of the equipment" and “Cable access plate” section
of this document.
