CABLE ACCESS AND CONNECTIONS

Connections:

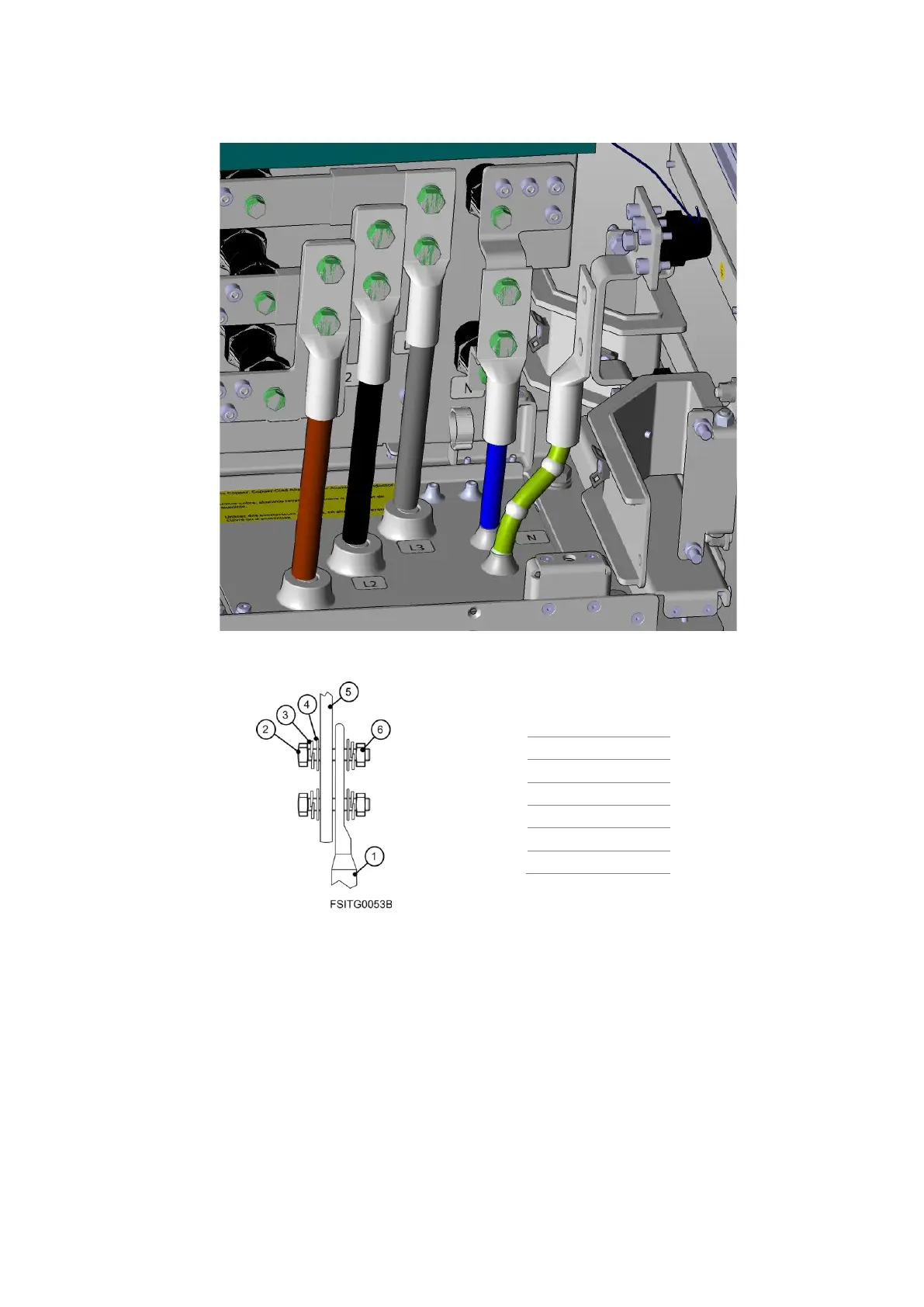

The following figure shows the correct connection:

REF.

ELEMENT

Terminal lug

M12 (1/2”) bolt

Spring washer

Fender washer

Plate

M12 (1/2”) nut

Note: If the terminal is a single-hole terminal, it is recommended to connect it to the upper hole in the

busbar, so that the contact area is maximized.
