POWER ELECTRONICS
NB 120
CABLE ACCESS AND CONNECTIONS
41
Communications connection
Ethernet or Optical fiber (GOF): For high level communications protocols. By default, it is done
through Ethernet, but it is possible to change it to optical fiber
1
.
Recommended cable size: Ethernet CAT 5e or CAT 6 UTP - RJ45 Connection Switch. Or
Optical Fiber (GOF) multi-mode OM3 (50/125 micron) 2 x SC Connectors - optional.
Maximum cable diameter: 7mm (cable gland M16).
Connections:

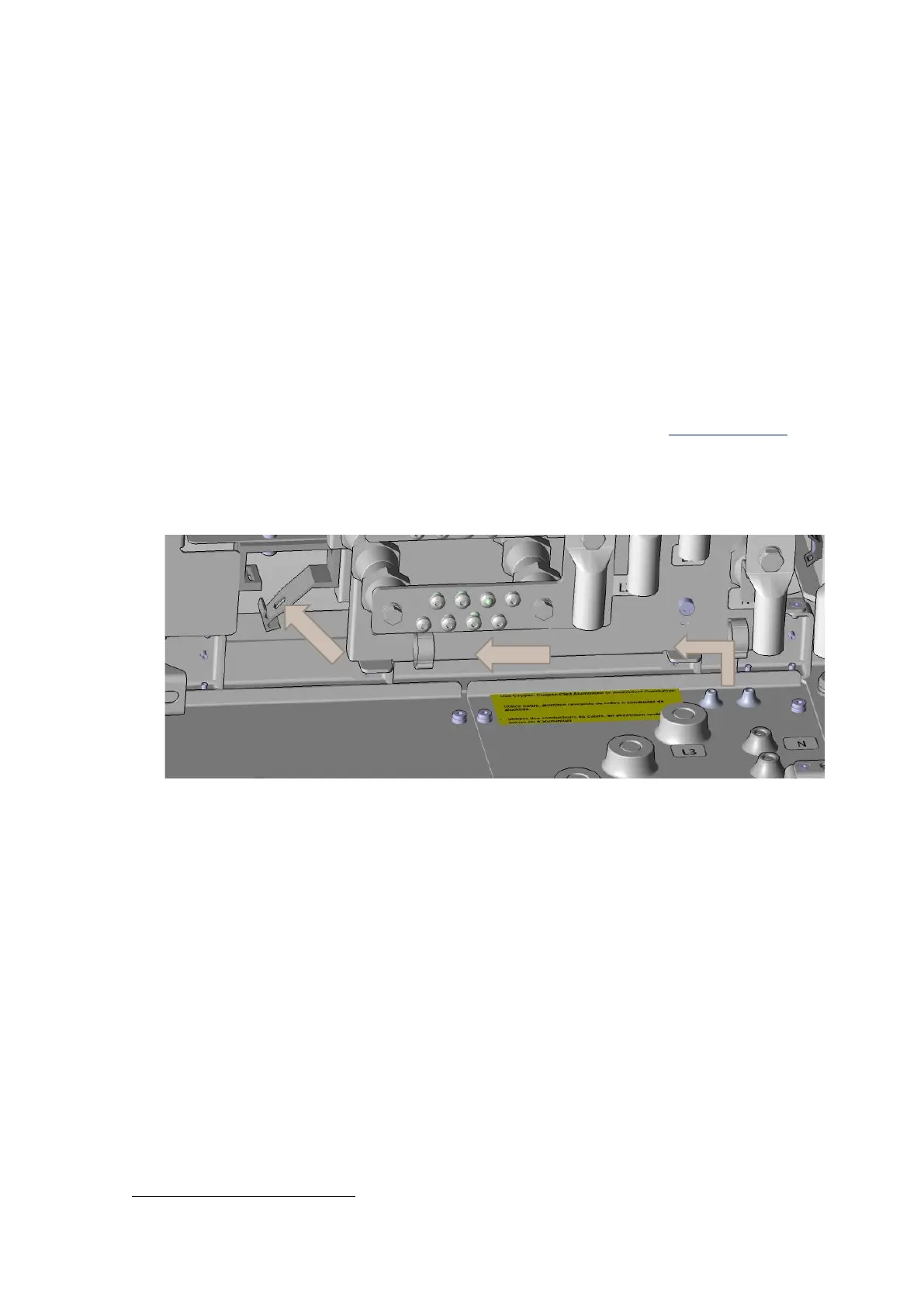

The installation of the communications cable must be done as follows through the interior of the unit
until it reaches the router located on the upper panel.
Enter the cable inside the equipment through the cable gland. Refer to Cable access plate
section for further information.
Use the clamps to hold the cable and pass it to the frontal side of the charger.
1
Upon request. Please contact Power Electronics in case of requiring this option.
