PowerMaster SG - Loop Installation (Standard Layout Chart); Cutting the Required Groove

25
Loop Wire
(See Chart)
Lead In Wire
(Twisted at 6
turns per foot)
1/2” Conduit
Conduit Cut
3/16” to 1/4”
1” to 2”
1” to 2”

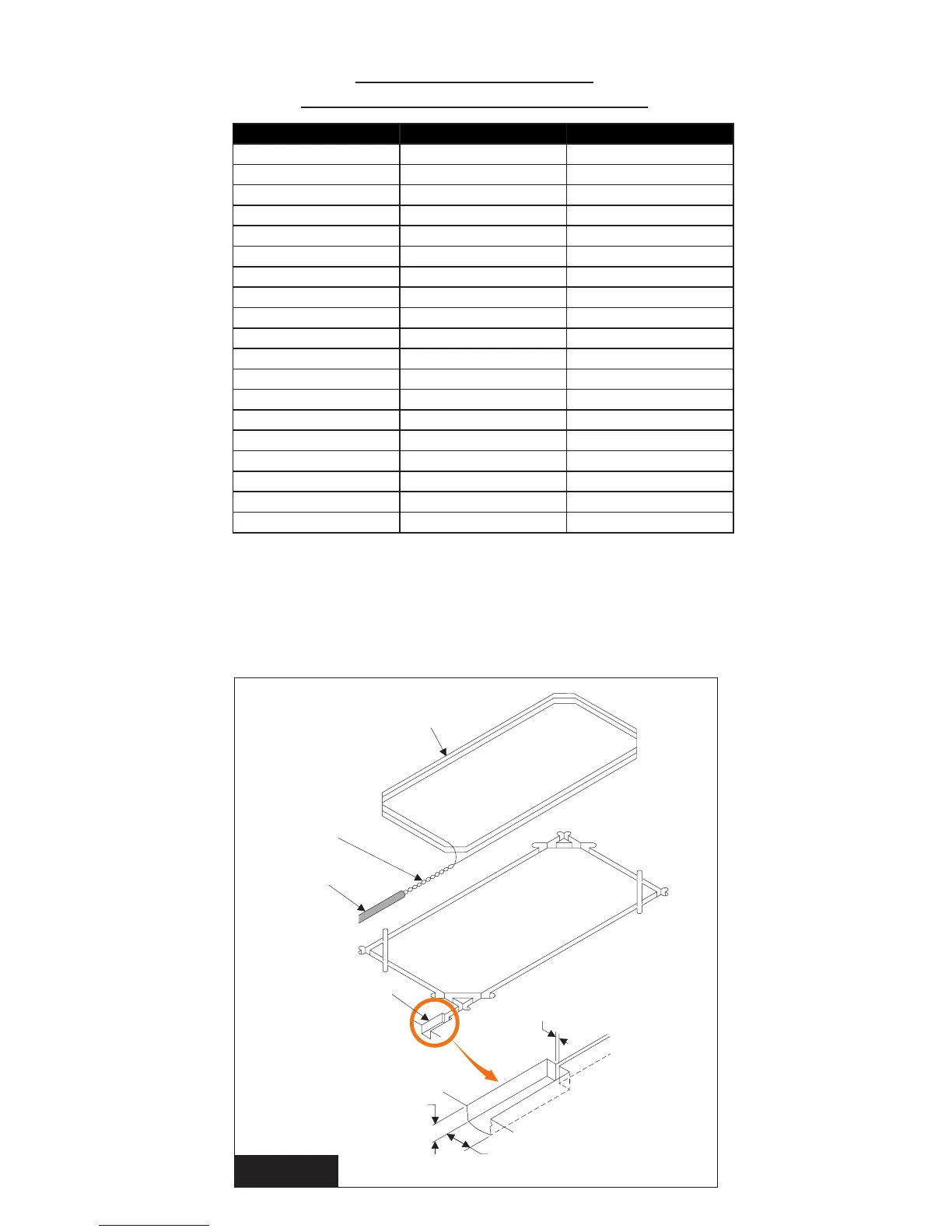

2. Cut the required groove at the locations laid out in Step#1 according to the
diagram below (Figure 9).
FIGURE 9
STANDARD LOOP LAYOUT
FOR APPROX. 36” HEIGHT DETECTION
LOOP SIZE NUMBER OF TURNS LOOP WIRE LENGTH
4X4 4 64
4X6 4 80
4X8 3 72
4X10 3 84
4X12 3 96
4X14 3 108
4X16 3 120
4X18 3 132
4X20 3 144
4X22 3 156
4X24 3 168
4X26 3 180
4X28 3 192
4X30 2 136
4X32 2 144
4X34 2 152
4X36 2 160
4X38 2 168
4X40 2 176
