20
Introduction
CAUTION!
The display provides more functions than those
described in this manual.
There are 17 interfaces available in the LCD display:
Item
Interface Description
Content Displayed
01
CODE
Operational status and mode
02
Input A(Input L1)
Voltage & Frequency
03
Input B(Input L2)
Voltage & Frequency
04
Input C(Input L3)
Voltage & Frequency
05
Bat. +
Voltage & Current
06
Bat. -
Voltage & Current
07
Backup time
Capa city&T ime
08
Output A(Output L1)
Voltage&Frequency
09
Output B(Output L2)
Voltage&Frequency
10
Output C(Output L3)
Voltage&Frequency
11
Load A
Load
12
Load B
Load
13
Load C
Load
14
Total Load
Load
15
Temperature
battery temperature(need to connect ba tter
sensor,Internal temperature and ambien t
temperature
16
Software version & model
Version of rectifier software, version of inverter
software, model
17
CODE
Alarm Code(Warming Message)

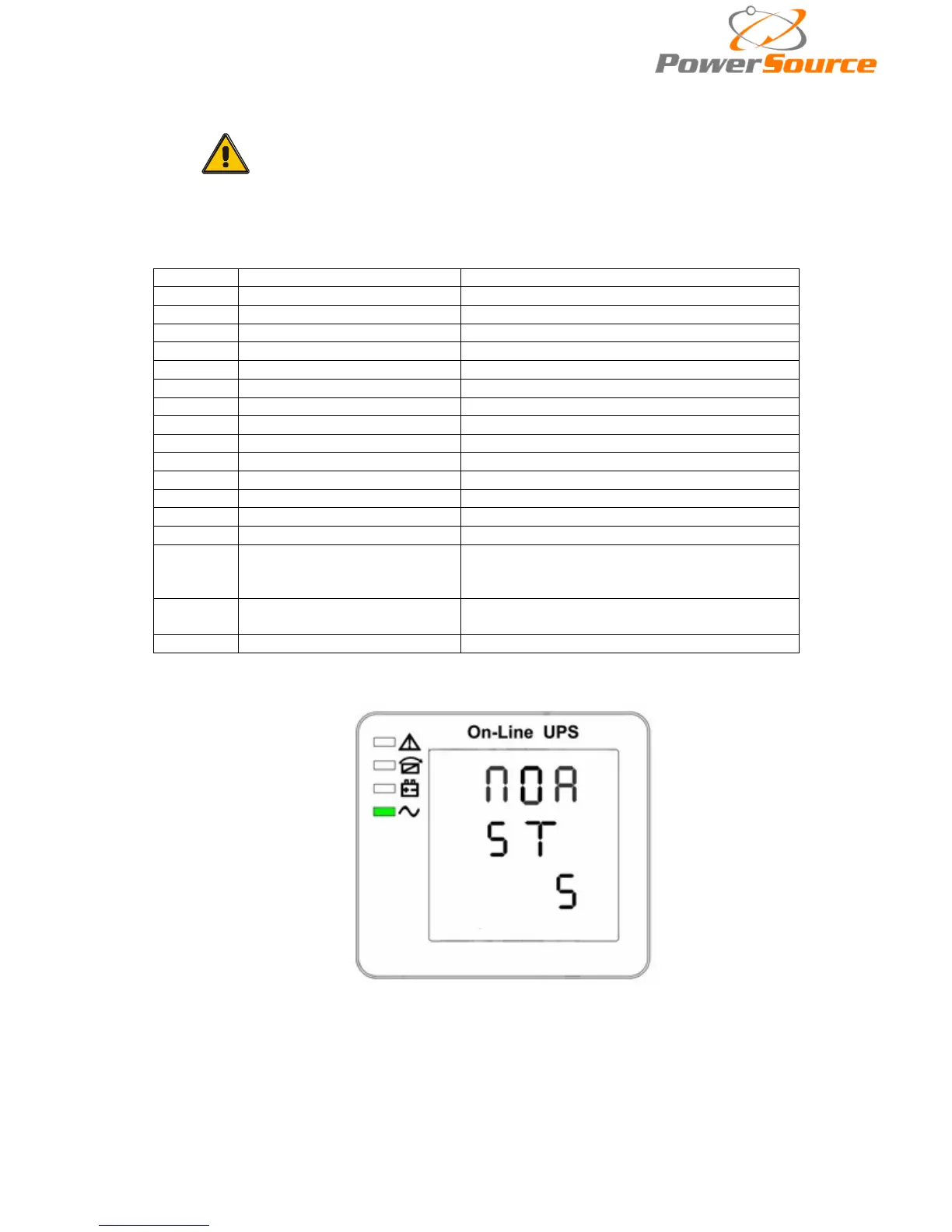

1) When the UPS is connecting with the Utility or Battery at cold start mode, it shows as drawing
below:
Operational Status and mode(When the UPS at single mode, it shows “NOR” or “ECO”, but If the
UPS at parallel mode, it shows “PAL” instead.)
2) Press “scroll” button, the UPS goes to next page as shown below.
