Appendix 5 BAT_T communication port definition

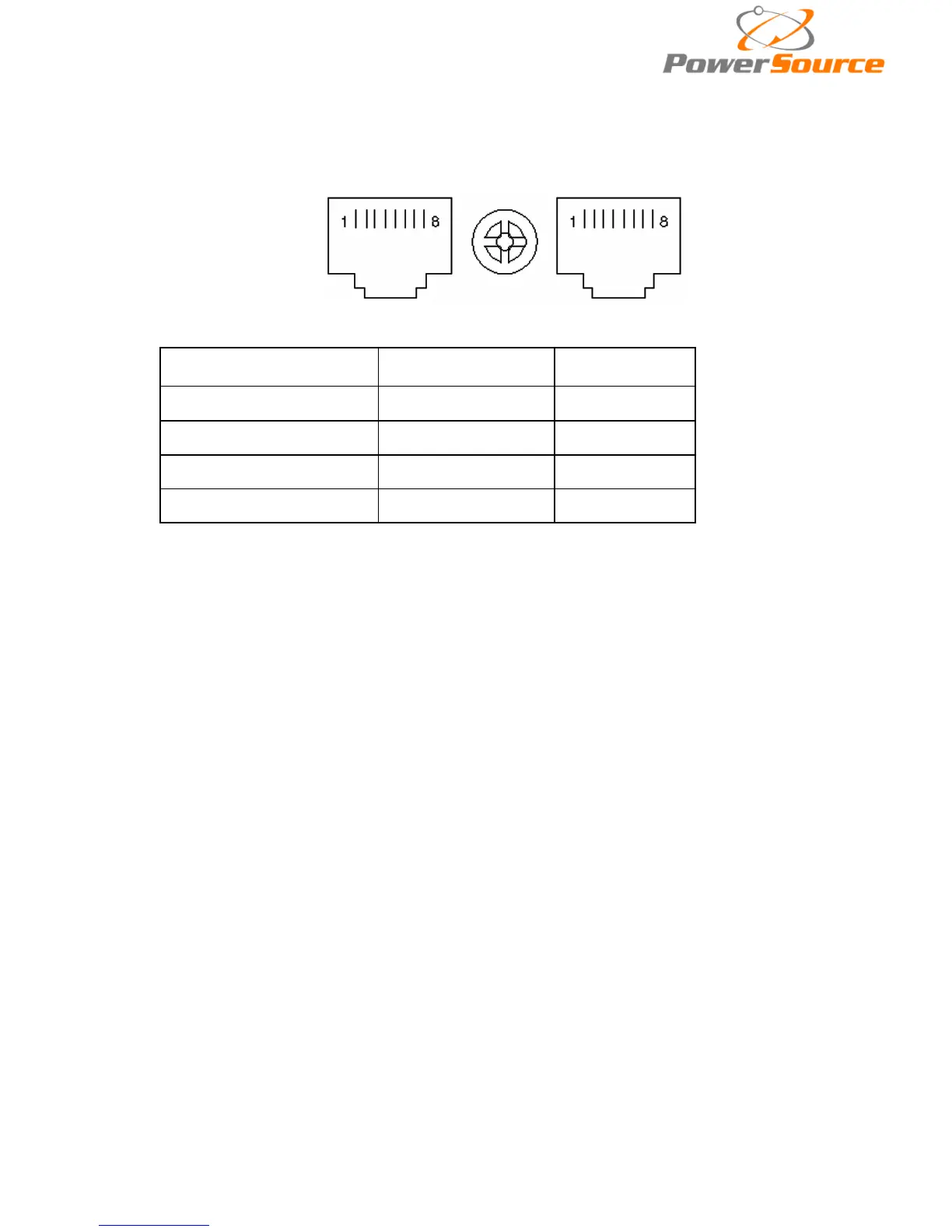

Definition of port：
Temperature sentor’s RS485 port and UPS’s RS485 port.
Temperature sentor（RJ45) UPS2 BAT_T（RJ45）
Description
Pin 1/5
Pin 1/5
TX
Pin 2/4
Pin 2/4
RX
Pin 7
Pin 7
12V
Pin 8
Pin 8
GND
Available function of BAT_T
◆Battery environment temperature monitoring.
◆Charging voltage modulation depending on batteries’ temperature
.
