Appendix 7 REPO instruction
Definition of port：

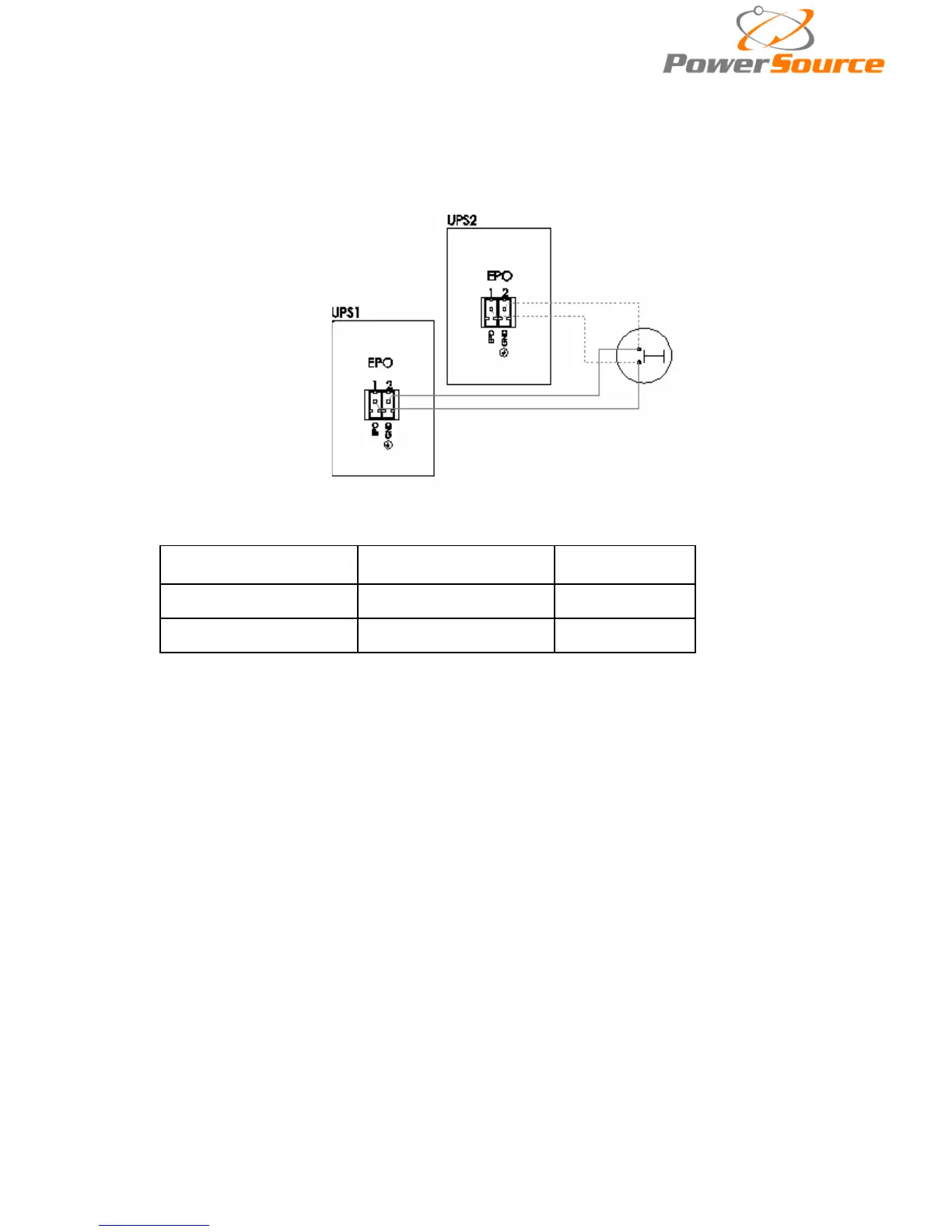

Connection diagram：
Connection between the button and UPS REPO port.
Button
UPS REPO
Description
Pin 1
Pin 1
EPO
Pin 2
Pin 2
GND
◆A remote emergency stop switch (Dry contact signal and “normally open” - not provided) can be
installed in a remote location and connection through simple wires to the REPO connector.
◆The remote switch can be connected to several UPS’s in a parallel architecture allowing the user to
stops all units at once.
