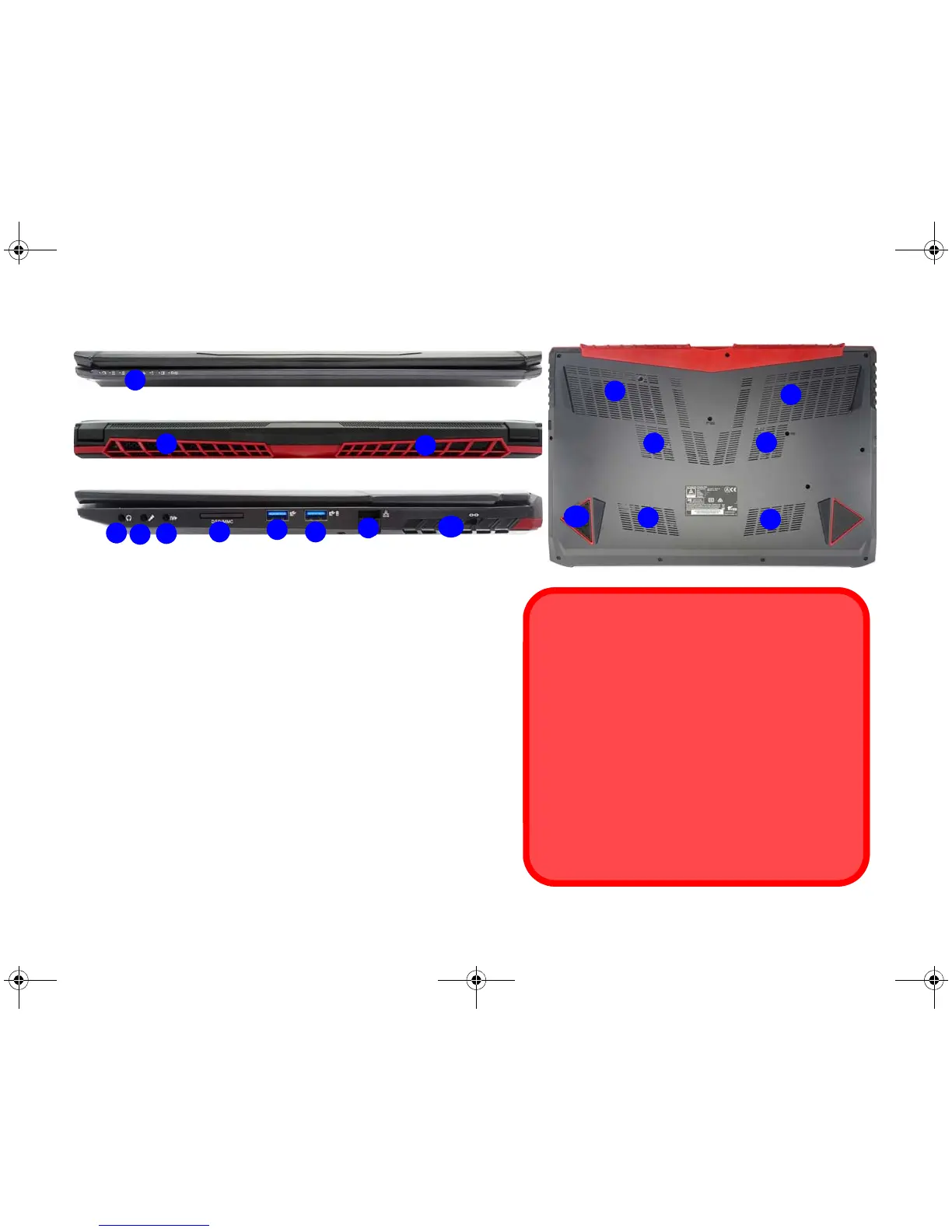

Figure 8
Front, Rear, Right & Bottom Views
1. LED Indicators
2. Vent
3. Headphone-Out Jack
4. Microphone-In Jack
5. 2- In-1 Audio Jack (Line-Out & S/PDIF-Out Combo Jack)
6. Multi-in-1 Card Reader
7. USB 3.0 (USB 3.1 Gen 1) Port
8. *Powered USB 3.0 (USB 3.1 Gen 1) Port
*Toggle power to this port by using Fn + Power Button (see
Table 1 on page 5).
9. RJ-45 LAN Jack
10. Security Lock Slot
11. Sub Woofer
2
2
2
2
2
Overheating
To prevent your computer from overheating make
sure nothing blocks any vent while the computer is
in use.
Bottom Cover Removal Warning
Do not remove any cover(s) and/or screw(s) for the
purposes of device upgrade as this may violate the
terms of your warranty.
If you need to replace/remove the hard disk/RAM
etc., for any reason, please contact your distributor/
supplier for further information.
2
2
2
1
Front
Rear
3
4
7
10
5
11
6 8
9
Right
