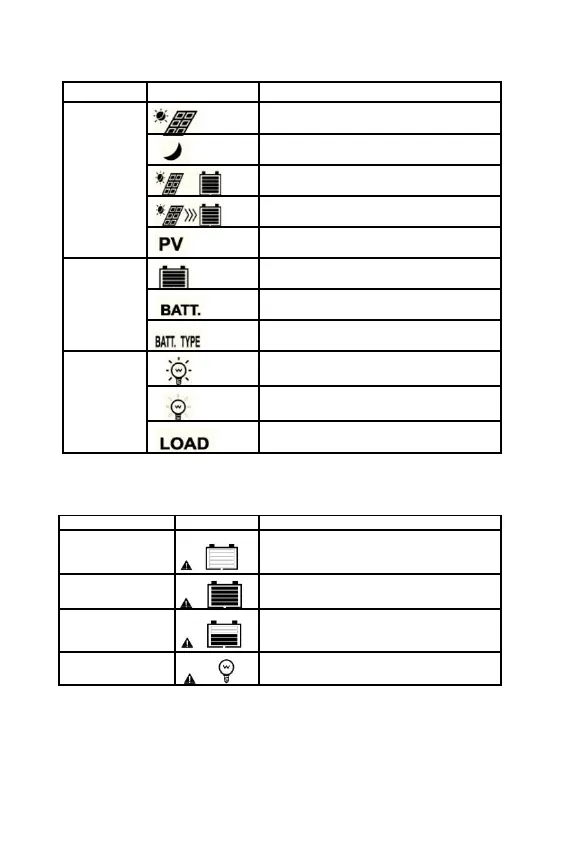

Status
Item
Icon
Status
PV (Solar)
array
Day
Night
No charging
Charging
PV Voltage, Current, Power
Battery
Battery capacity, In Charging
Battery Voltage, Current, Temperature
Battery Type
Load
Load ON
Load OFF
Load Voltage, Current, Load mode
Fault Indication
Status
Icon
Description
Battery over
Battery level shows empty, battery frame
discharged
blink, fault icon blink
Battery over
Battery level shows full, battery frame blink,
voltage
fault icon blink
Battery over
Battery level shows current value, battery
temperature
frame blink, fault icon blink
Load failure
Load overload
①
,Load short circuit
①When load current reaches1.02-1.05 times 1.05-1.25 times, 1.25-1.35 times and 1.35-1.5 times more
than nominal value, controller will automatically turn off loads in 50s, 30s,10s and 2s respectively.

PowerTech MP3741 Specifications

General

Brand	PowerTech
Model	MP3741
Category	Controller
Language	English
