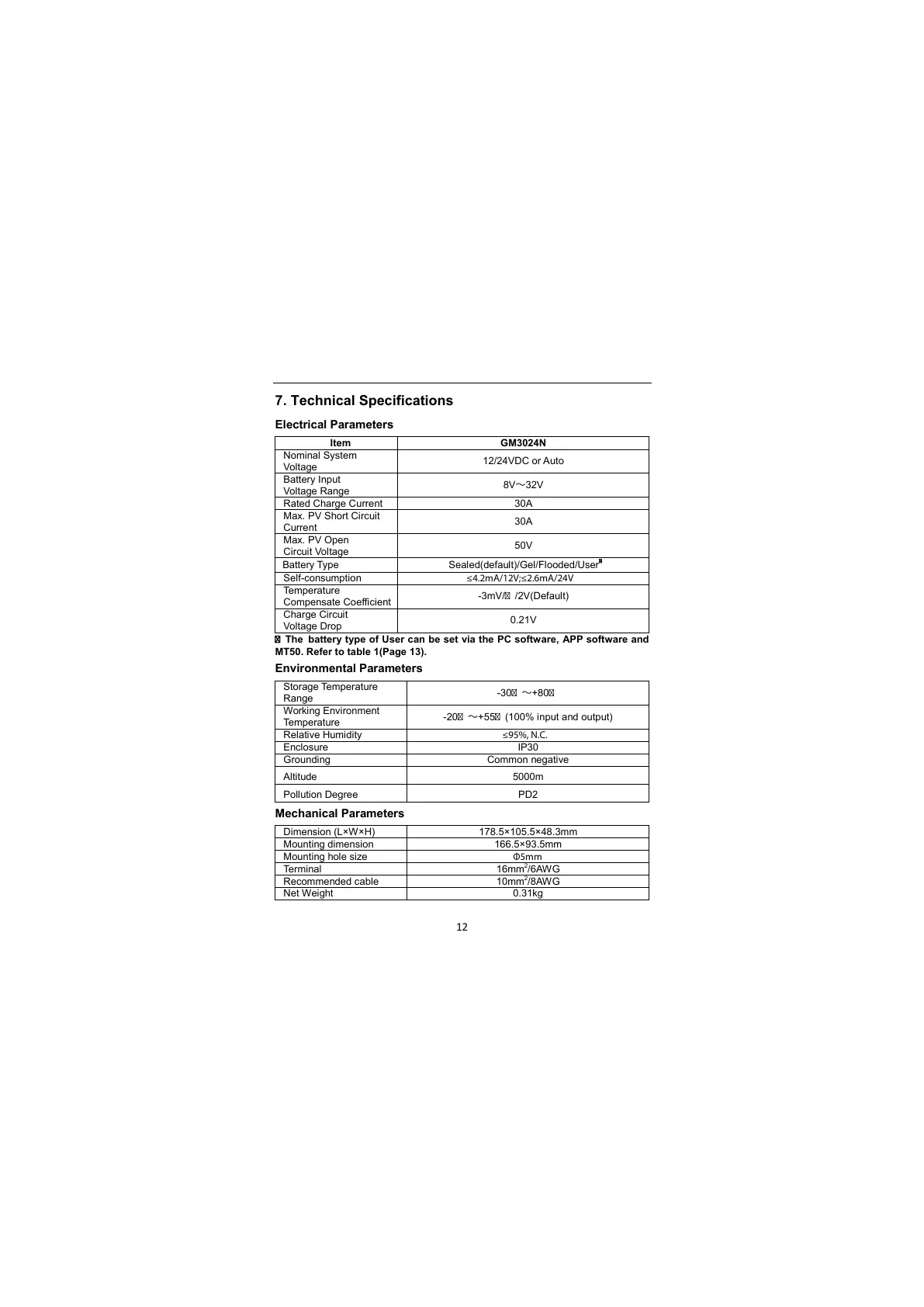

7. Technical Specifications
Electrical Parameters
Item
GM3024N
Nominal System
Voltage
12/24VDC or Auto
Battery Input
Voltage Range
8V
〜
32V
Rated Charge Current
30A
Max. PV Short Circuit
Current
30A
Max. PV Open
Circuit Voltage
50V
Battery Type
Sealed(default)/Gel/Flooded/User

Self-consumption
≤4.2mA/12V;≤2.6mA/24V
Temperature
Compensate Coefficient
-3mV/ /2V(Default)
Charge Circuit
Voltage Drop
0.21V
 The battery type of User can be set via the PC software, APP software and
MT50. Refer to table 1(Page 13).
Environmental Parameters
Storage Temperature
Range
-30
〜
+80
Working Environment
Temperature
-20 〜+55 (100% input and output)
Relative Humidity
≤95%, N.C.
Enclosure
IP30
Grounding
Common negative
Altitude
5000m
Pollution Degree
PD2
Mechanical Parameters
Dimension (L×W×H)
178.5×105.5×48.3mm
Mounting dimension
166.5×93.5mm
Mounting hole size
Φ5mm
Terminal
16mm
2
/6AWG
Recommended cable
10mm
2
/8AWG
Net Weight
0.31kg
