PowerTech MP3764 User Manual

3

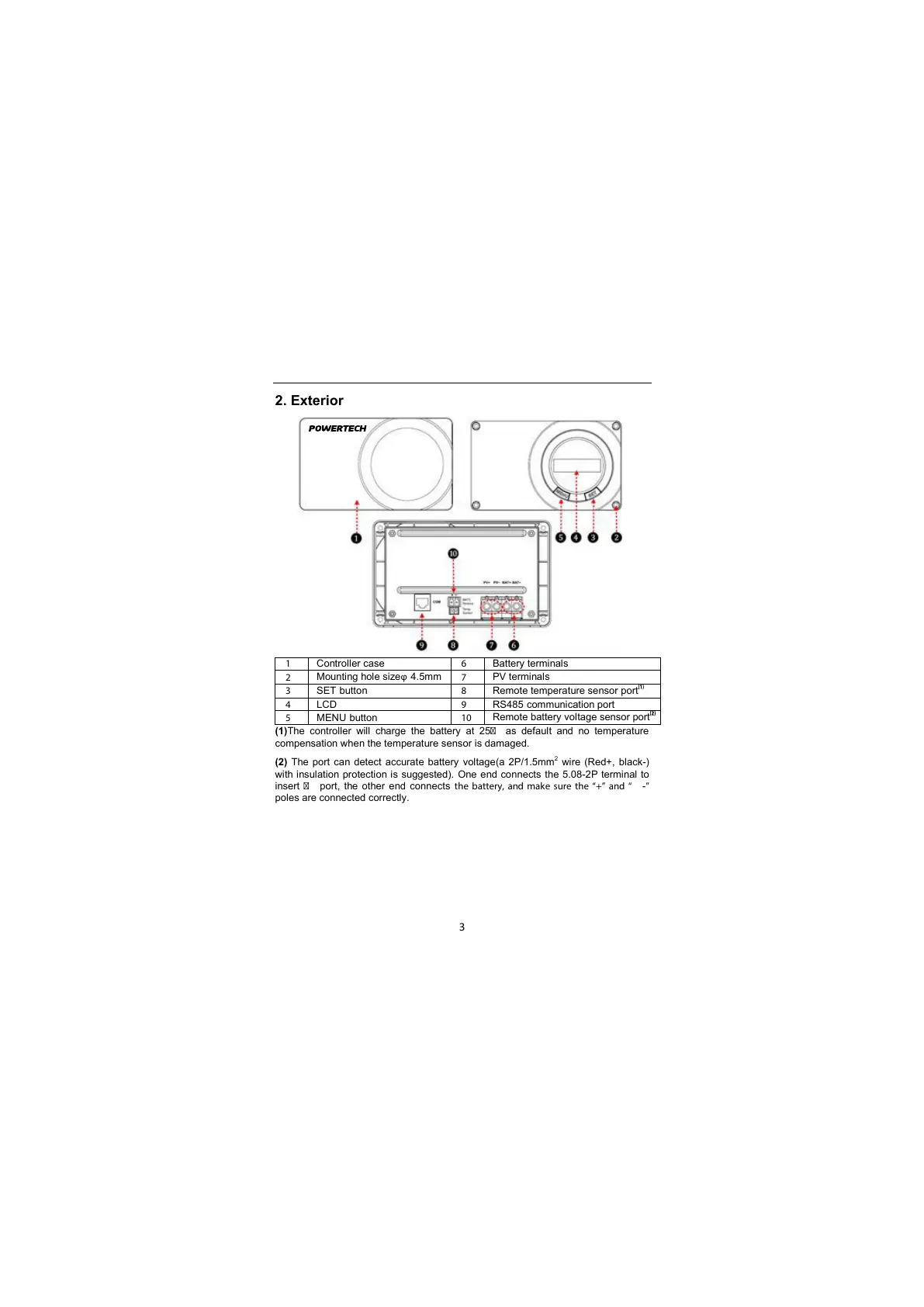

2. Exterior
1
Controller case
6
Battery terminals
2
Mounting hole sizeφ 4.5mm
7
PV terminals
3
SET button
8
Remote temperature sensor port
⑴
4
LCD
9
RS485 communication port
5
MENU button
10
Remote battery voltage sensor port
⑵
(1)The controller will charge the battery at 25 as default and no temperature
compensation when the temperature sensor is damaged.
(2) The port can detect accurate battery voltage(a 2P/1.5mm
2
wire (Red+, black-)
with insulation protection is suggested). One end connects the 5.08-2P terminal to
insert  port, the other end connects the battery, and make sure the “+” and “ -”
poles are connected correctly.
