5

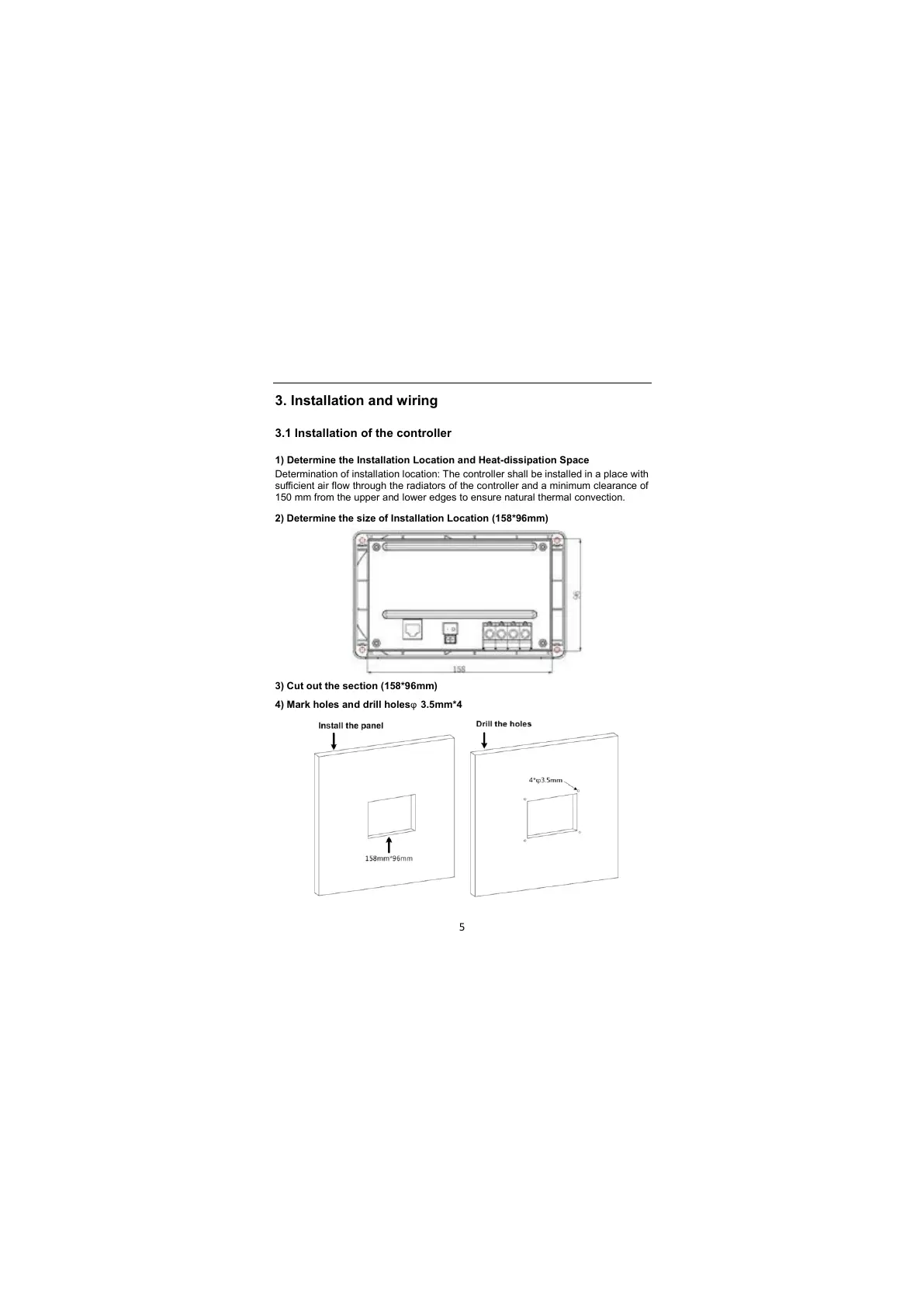

3. Installation and wiring
3.1 Installation of the controller
1) Determine the Installation Location and Heat-dissipation Space
Determination of installation location: The controller shall be installed in a place with
sufficient air flow through the radiators of the controller and a minimum clearance of
150 mm from the upper and lower edges to ensure natural thermal convection.
2) Determine the size of Installation Location (158*96mm)
3) Cut out the section (158*96mm)
4) Mark holes and drill holesφ 3.5mm*4
