Additional UPS Features
25
Powerware
®
5105 User’s Guide S 05146193 A Uncontrolled Copy
Network Transient Protector
The Network Transient Protector, shown in Figure 15, is located on the
rear panel and has jacks labeled IN and OUT. This feature
accommodates a single RJ-45 (10BaseT) network connector.
Low voltage models can also accommodate an RJ-11 telephone
connector that provides protection for modems, fax machines, or other
telecommunications equipment. As with most modem equipment, it is
not advisable to use this jack in digital PBX (Private Branch Exchange)
environments.
Connect the input connector of the equipment you are protecting to the
jack labeled IN. Connect the output connector to the jack labeled OUT.
IN OUT
OUT
IN
NETWORK TRANSIENT PROTECTOR

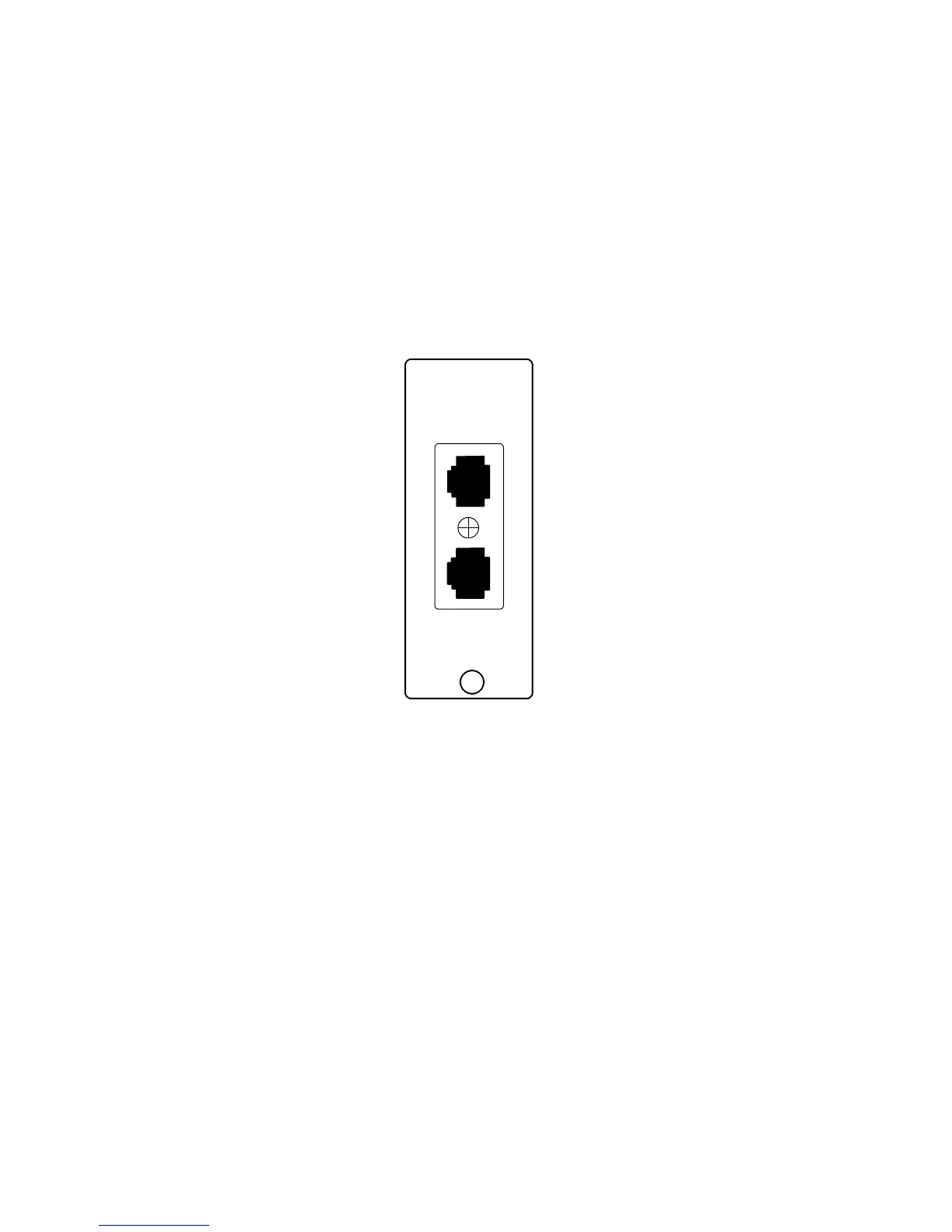

Figure 15. Network Transient Protector
