UPS-Mounted Bypass Switch Installation
30
Powerware
®
9155 UPS (8–15 kVA) User’s Guide S 164201553 Rev D www.powerware.com
3. Attach the supplied L-bracket to the lower rear (for 2-high) or
middle rear (for 3-high) cabinet using three screws (see
Figure 14).
Repeat for the other side.
4. Remove the UPS wiring access cover and retain.
L-Bracket and Screws
UPS Wiring
Access Cover

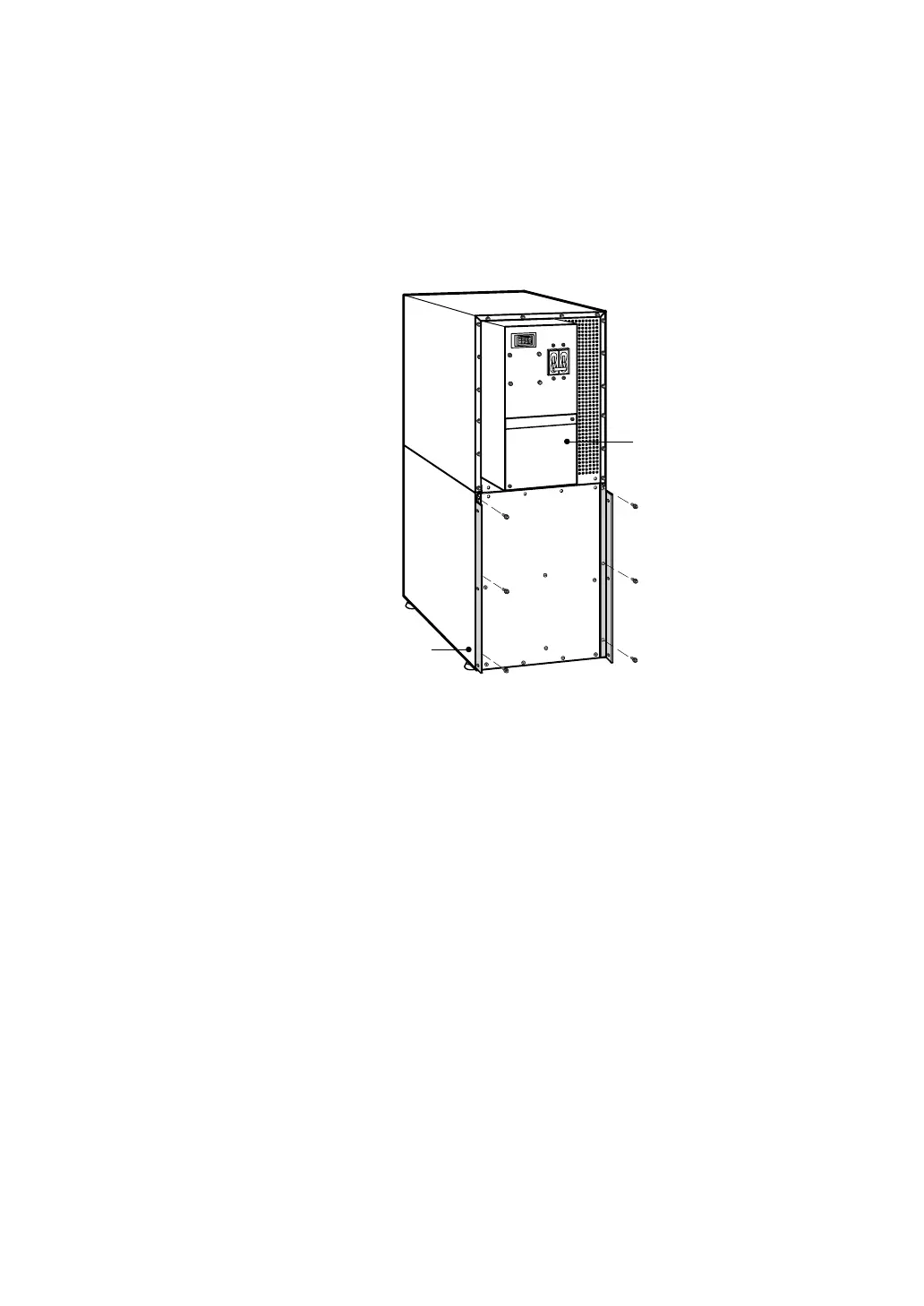

Figure 14. Attaching the L-Brackets
