Wall-Mounted Bypass Switch Installation
43
Powerware
®
9155 UPS (8–15 kVA) User’s Guide S 164201553 Rev D www.powerware.com
5. Verify that the UPS battery circuit breaker is in the OFF position
(see Figure 24).
6. Remove the UPS wiring access cover and retain (see Figure 24).
ON
OFF
UPS Wiring
Access Cover
Conduit Landing
Battery
Connector
Battery Circuit Breaker

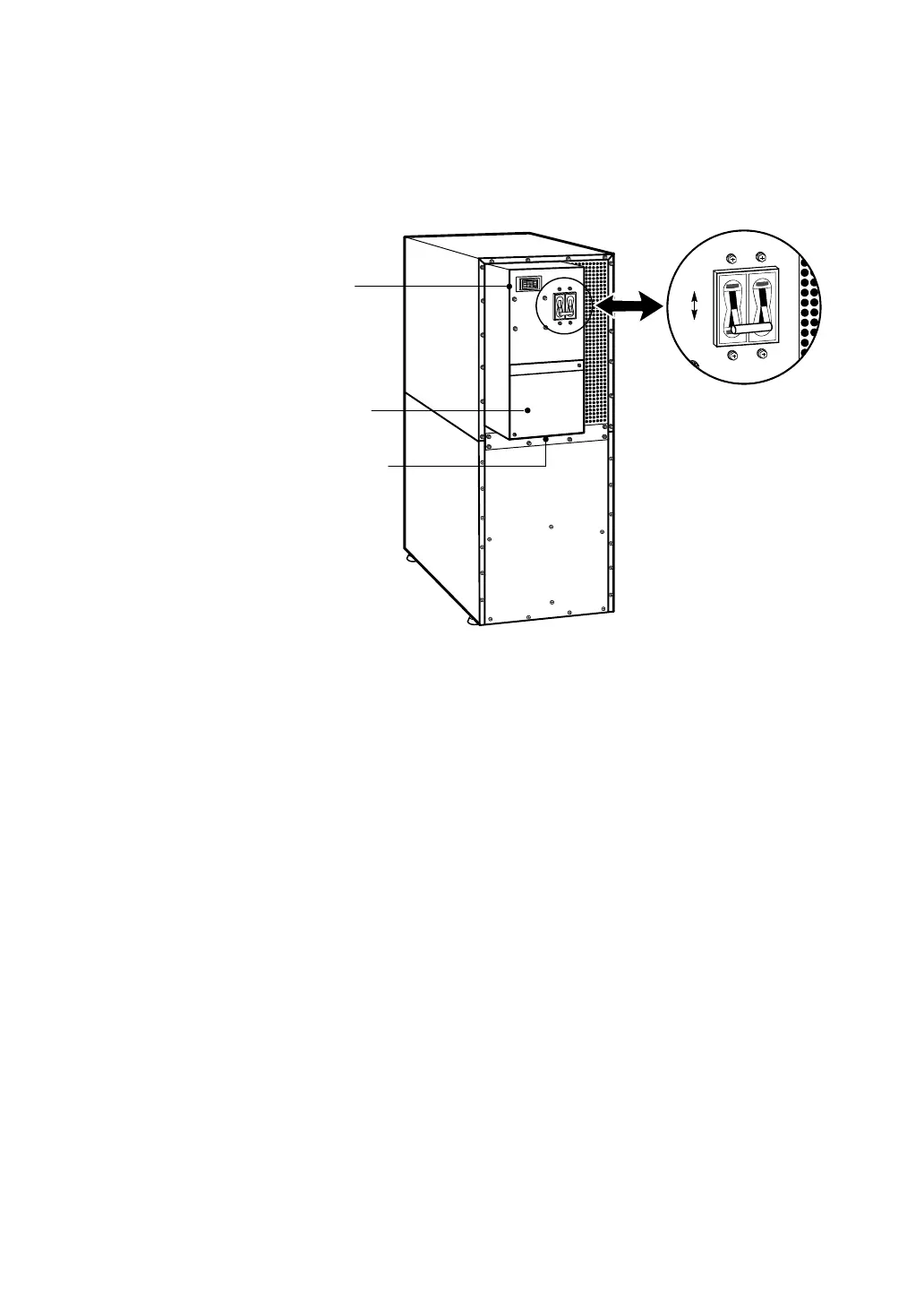

Figure 24. UPS Rear View
