Wall-Mounted Bypass Switch Installation
44
Powerware
®
9155 UPS (8–15 kVA) User’s Guide S 164201553 Rev D www.powerware.com
7. Install t he conduit to the bypass switch cabinet. AC input and
AC output conductors must be run through separate conduit.
UPS output circuits must be installed in a dedicated conduit
system and not shared with other electrical circuits.
8. Hardwire the terminal strip inside the bypass switch cabinet. Use
copperwirethatistheappropriatesizeforthecurrentdraw.
See Figure 25 for a detailed view of the terminal strip label.

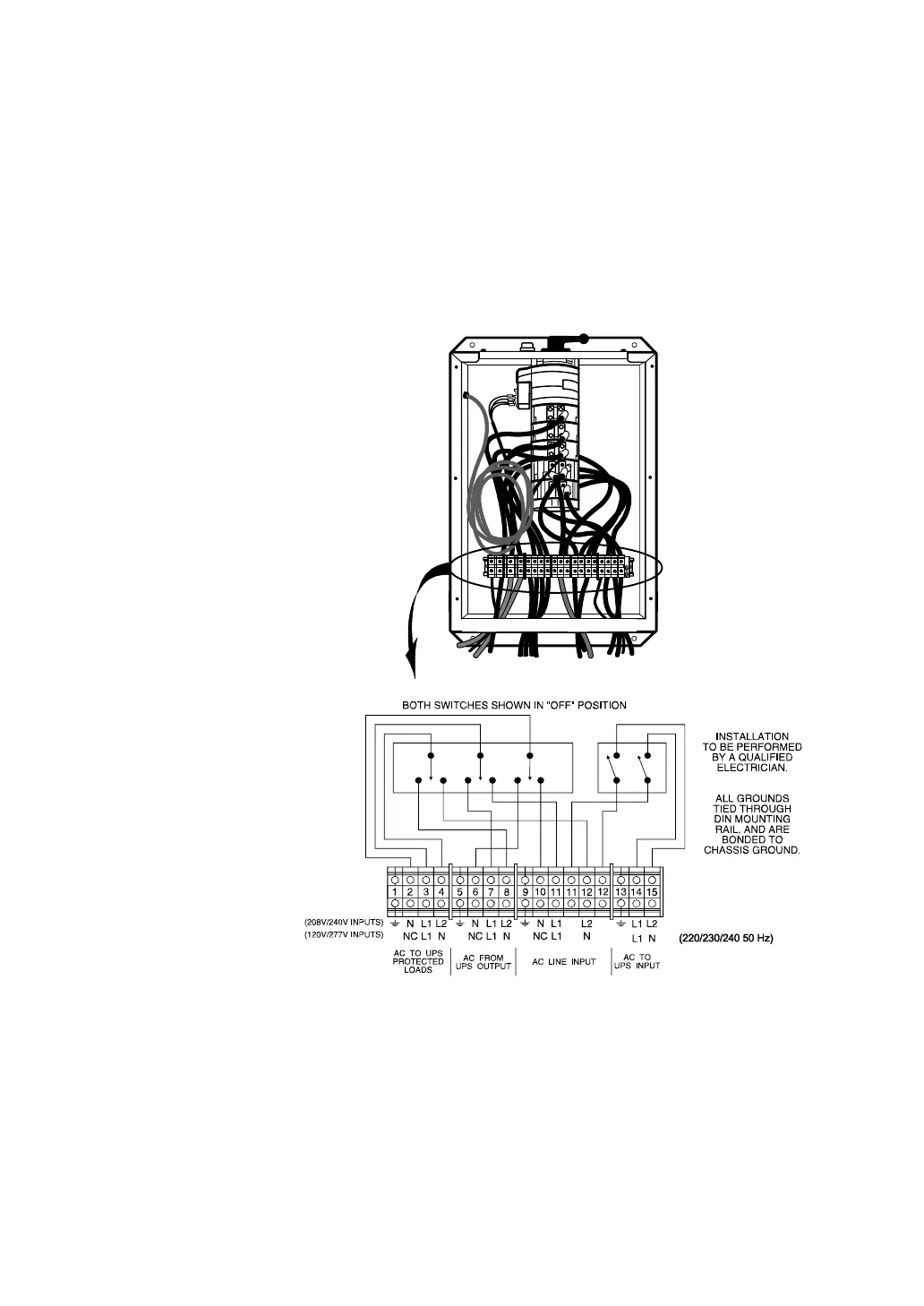

Figure 25. Wall-Mounted Bypass Switch Terminal Strip Wiring
