Communication
56
Powerware
®
9155 UPS (8–15 kVA) User’s Guide S 164201553 Rev D www.powerware.com
4. Routethecable(s)totheapproximatelocationofthecover
access holes.
5. Connect the cables to the appropriate location.
See “Communication Options” on page 57 or “Control
Terminals” on page 61 for detailed information.
6. Reinstall t he front covers, starting with the bottom cabinet (see
Figure 36).
Hang the top edge of the cover on the cabinet first, then lower
the bottom edge and snap into place. Be sure the cables fit in
the access holes in the covers.

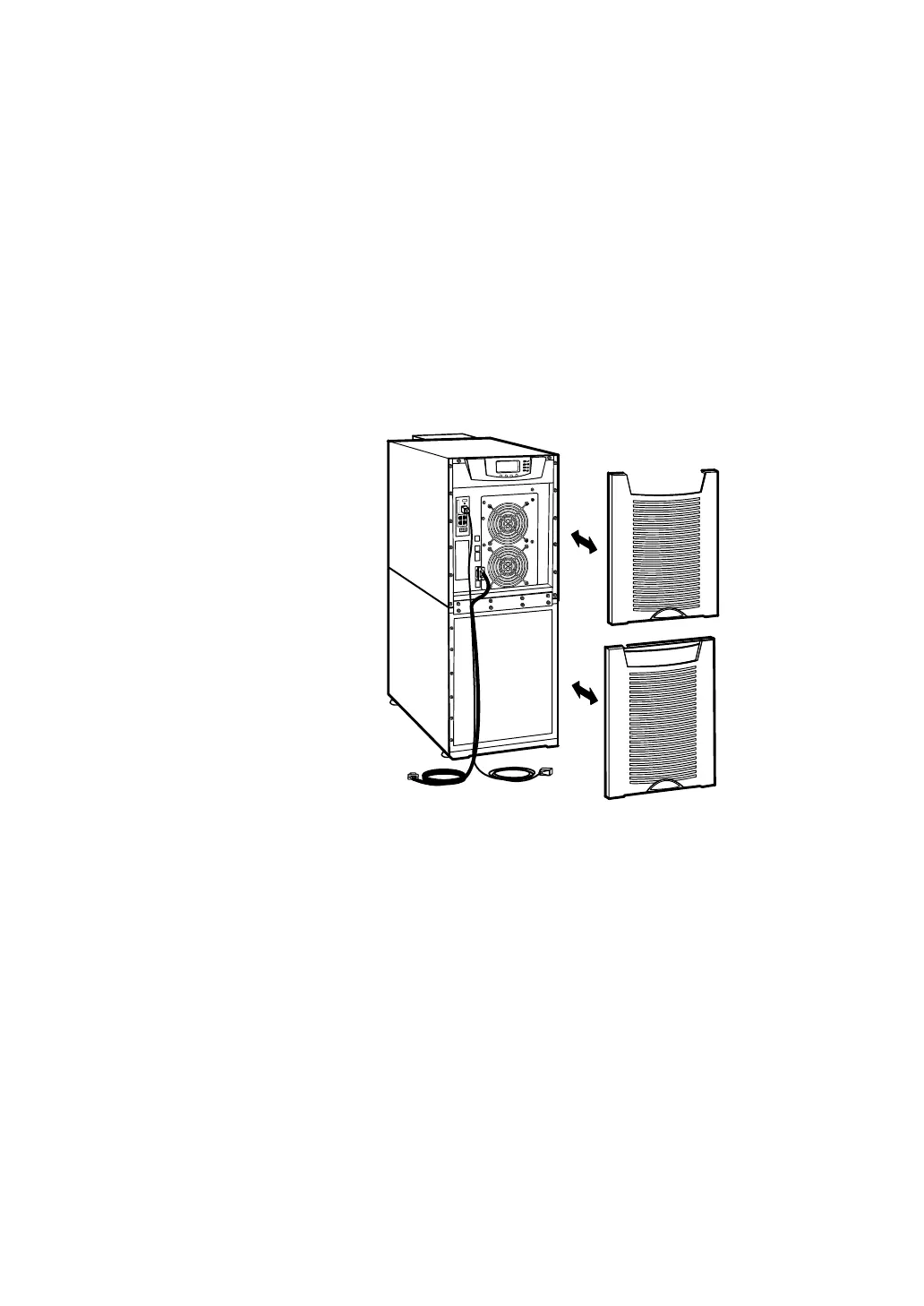

Figure 36. Reinstalling the Front Covers
7. Continue to “Operation” on page 65 to start up the UPS.
