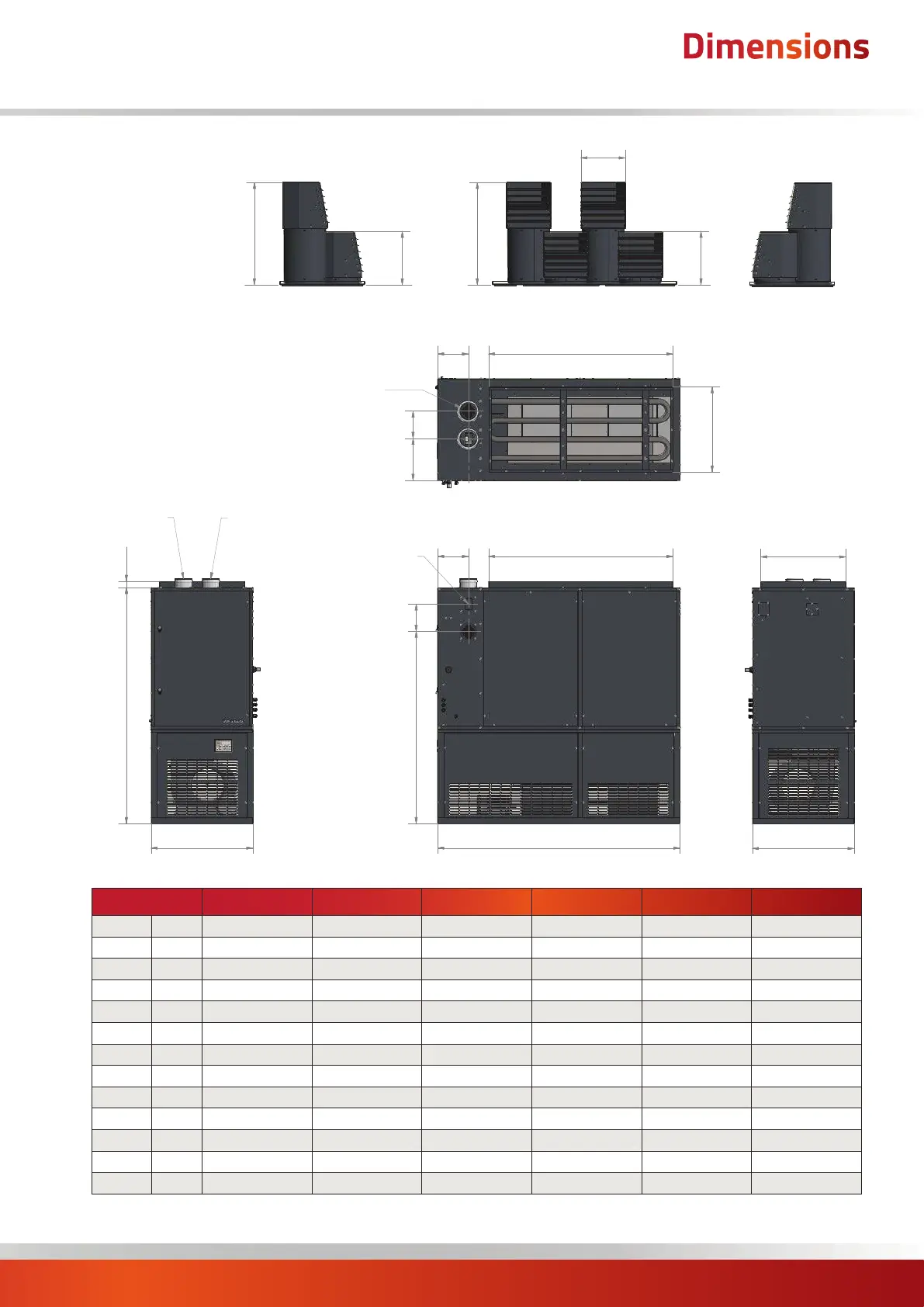

Dimensions
VPx
Model
35 50 70 90 120 140
A mm 1325 1325 1325 1950 1950 1950
B mm 819 819 819 819 819 819
C mm 1672 1672 1672 1900 1900 1900
DØ mm 100 100 130 130 130 130
E mm 356 356 356 337 337 337
F mm 1314 1314 1236 1547 1547 1547
G mm 142 142 220 220 220 220
H mm 237 237 237 247 247 247
J mm 255 286 345 345 345 400
J1 mm 512 614 709 707 707 822
K mm 207 256 308 308 308 320
L mm 915 915 915 1485 1485 1485
M mm 685 685 685 685 685 685
