page no. 14 of 40
VPx Range Users, Installation & Servicing Instructions Doc Ref M205 issue 1.2 Nov 2018.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
"Title Here"
VPX - Space Fitting Requirements
SCALE: 1:15SHEET 1 OF 1
"Description Here"
"Material Gauge & Spec Here"
ISSMODIFICATIONSDATEDCRI/ADRN
UNSPEC. TOLS.
Hole centers
±0.1mm
General ±0.1mm
Finished sizes ±0.1mm
MM
-
DO NOT SCALE
This drawing is copyright and the property of POWRMATIC
LIMITED. It must not be used without their knowledge, nor
communicated to any other person or company.
Powrmatic Ltd. Hortbridge, Ilminster. Somerset.
TA19 9PS.
Tel: 01460 53535 Fax: 01460 52341
Web: www.powrmatic.co.uk E mail: r&d@powrmatic .co.uk
POWRMATIC LTD
01
NEW DRAWING06/09/2018
--
chrisbromfield
TITLE:
DESCRIPTION:
DRAWING NUMBER:
MATERIAL GAUGE & SPEC:
SALVAGNINI:
MATERIAL REQUIRED:
PROJECTION:
UNITS:
D*
E* A
B
C

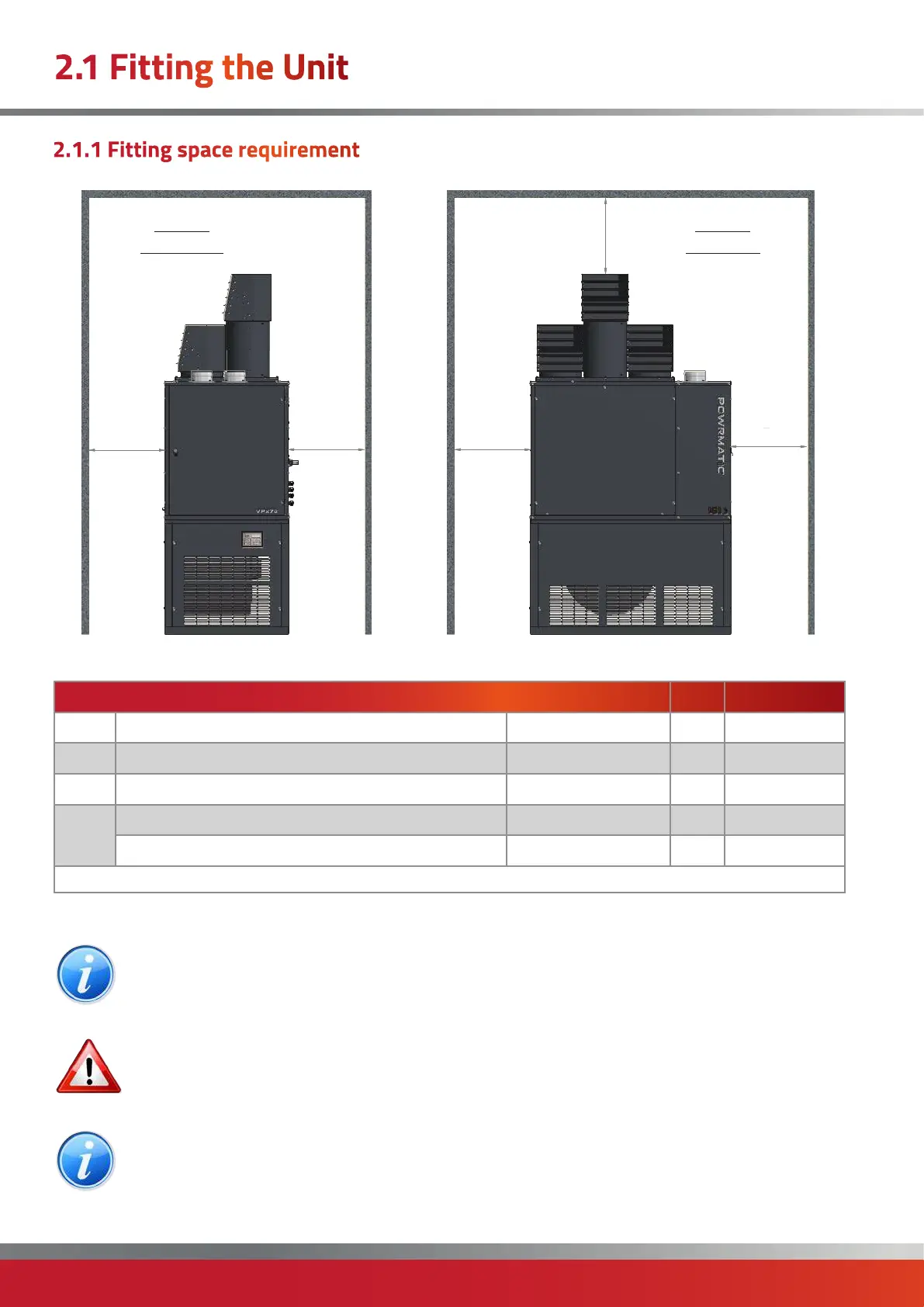

2.1.1 Fitting space requirement
VPx UF
Front View
D*
2.1 Fitting the Unit
Distance from outside of heater to closest obstacle Distance
A Front mm 1000
B Rear mm 500
C Above mm 1000
D*
Side adjacent to wall mm 150
Opposite Side mm 500
VPx UF
Side View
D* D*B
A
C
Note: The minimum clearances must be
observed for installation and servicing.
Warning: Any combustible material adjacent
to the air heater and the flue system must
be so placed or shielded as to ensure that its
temperature does not exceed 65 °C.
Note: The access door to the controls section
may be removed to improve access. Open the
door to 90°, remove the earth cable at the
bottom, and then lift the door vertically
upwards to disengage the hinge plates. Refit in reverse
order. Ensure that the earth cable is refitted.
Before installation, check that the local distribution
conditions, nature of gas and pressure, and adjustment of
the appliance are compatible.
The air heater must be installed in accordance with
the rules in force and the relevant requirements of any
fire regulations or insurance company's requirements
appertaining to the area in which the heater is located,
particularly where special risks are involved such as
areas where petrol vehicles are housed, where cellulose
To Next Page
