1. Getting Started

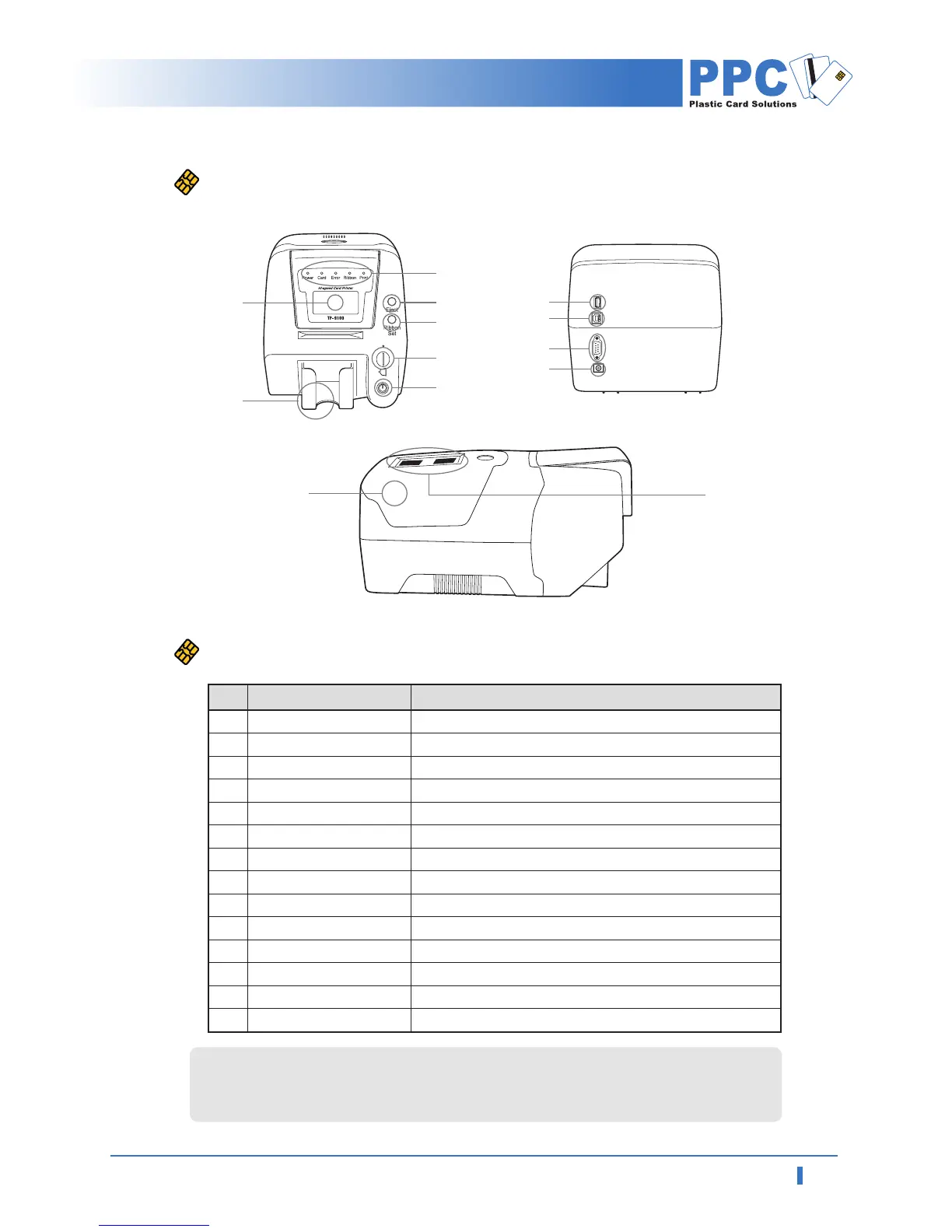

ID-2100 ( Automatic Feeding, Single-sided Printing )
1
3
4
5
6
2
7
Front
14
Side
8
No
Features
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
LED Display
LCD Display
Card Eject
Ribbon Load
Mobile Connector
Power Button
Card Output Stacker
Printer Lid
Flipper
USB Socket
USB Communication Port
RS232C Communication Port
Power Socket
External RF
LED shows the status of printer
LCD panel displays the status of printer
Button for ejecting card from the printer
Button for replacing or repositioning ribbon
Socket for mobile chip (Option)
Power on and off
Stacker for released output cards
Open for replacing ribbons and cleaning rollers
Used for Dual sided printing (Option)
Used for memory stick or USB connecting
Used for connecting PC and printer with USB cable
Used for connecting PC and printer with RS232C
Used for supplying power
Recognize RF Card
Features Description
Even though we have three different models of ID series, since there is no big difference in
operating them, user manual is designed for ID-2200 Dual Sided as main reference.
