Abort
The timer operation is suspended until a new start command is
issued.
Start
The timer re-runs the complete soak time.
Continue
The Soak Timer resumes operation for the balance time.
POWER-FAIL RECOVERY METHOD
5 to 250 Sec.
(Default : 10 Sec.)
END-OF-SOAK ALARM TIME
The Output-3 Relay/SSR activates at the end of soak timer to
indicate an end of the running autoclave cycle. This parameter
value sets the time interval for which the Alarm output remains
activated before turning off.
(The user can also use Acknowledgment key to turn off the
output.)
HOLD BAND
Sets the temperature limit(s) with respect to the SP for the soak
timer to pause. This ensures guaranteed soak time elapse.
1 to 5 or
0.1 to 5.0
(Default : 1.0)
(Re)Start
Abort
Continue
(Default : Continue)
(Refer end of this section for detailed Soak Timer Operation)
Table 5.1
TIMER-START BAND
The temperature band around the control setpoint. The soak timer
starts counting down once the Temperature enters this band.
HOLDBACK STRATEGY
None
Temperature based timer pause is not required.
Up
Timer is paused if Temperature is outside holdband and above
Control SP .
Down
Timer is paused if Temperature is outside holdband below Control
SP.
Both
Timer is paused if Temperature is outside holdband both above
and below Control SP.
None
Up
Down
Both
(Default : Down)
SOAK TIME
The time duration in ‘Minutes’ for which the autoclave temperature
is maintained at the set control setpoint value.
1 to 999 Minutes
(Default : 20)

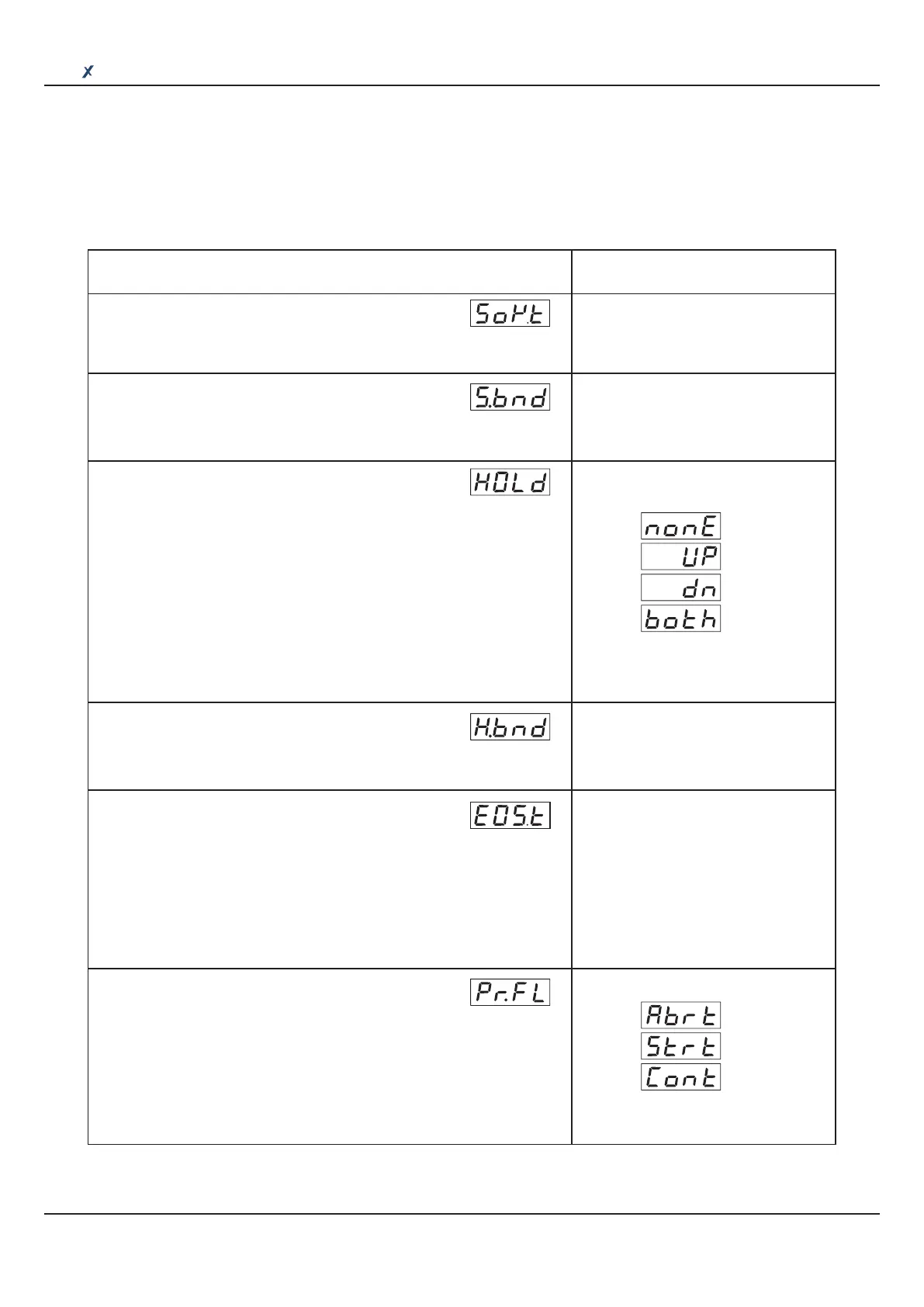

SOAK TIMER PARAMETERS
Parameter Description
Settings
(Default Value)
1 to 5 or
0.1 to 5.0
(Default : 1.0)
Section 5
User Manual
