PPI claveX Series User Manual

1

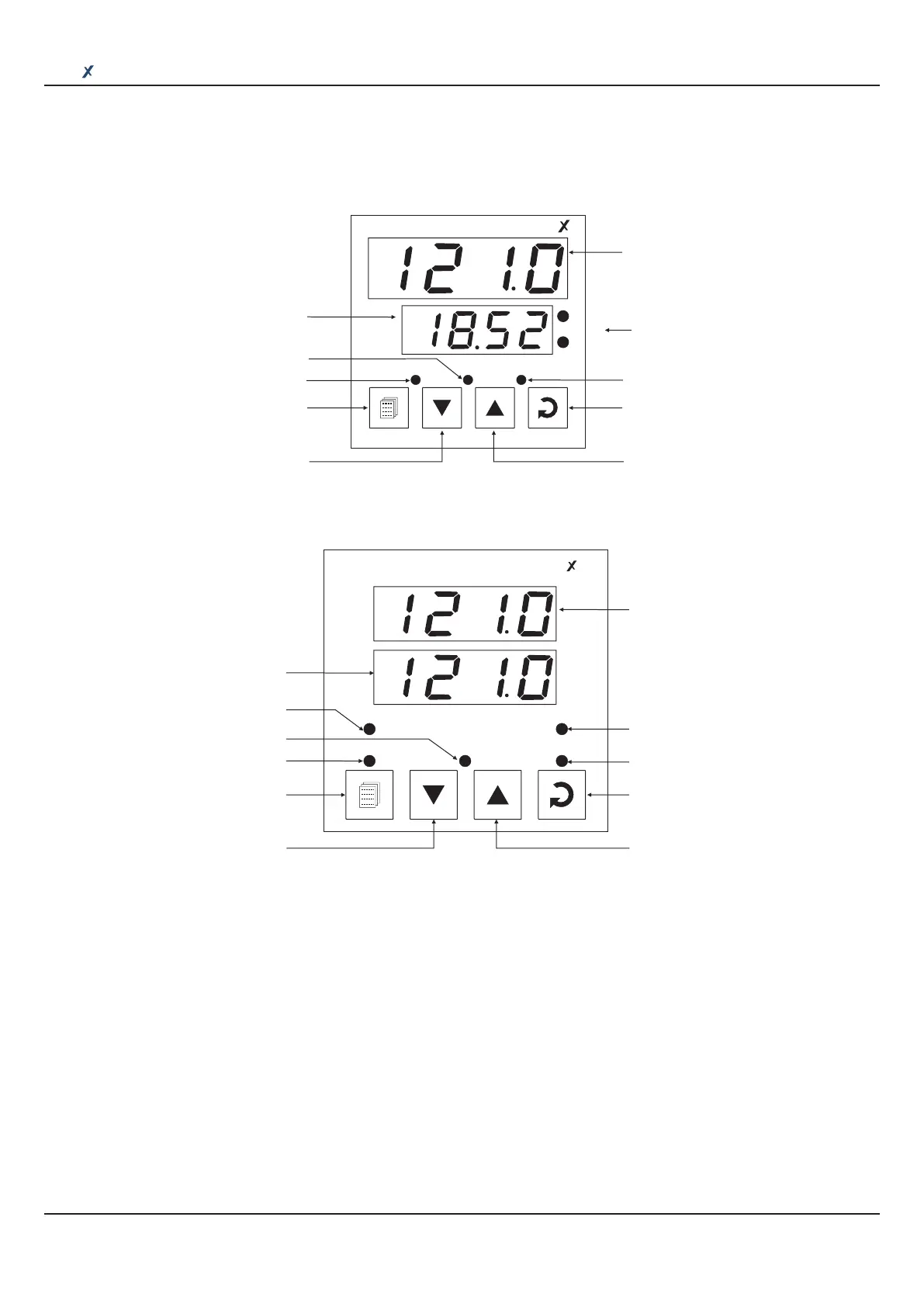

Figure 1.1 (a) : 48 X 48 Version
FRONT PANEL LAYOUT
The front panel contains digital readouts, LED indicators and keys.
READOUTS
The Upper Readout is a 4 digit, 7-segment bright red LED display and usually displays the Temperature Value in . In °C
Program Mode, the Upper Readout displays parameter values/options.
The Lower Readout is a 4 digit, 7-segment bright green LED display and usually displays either Control Setpoint value or
Saturated Steam Pressure value or the balance Soak Time value, depending on the autoclave cycle state. In Program Mode,
the Lower Readout displays parameter names (prompts).
INDICATORS
The Table 1.1 lists each front panel LED and the associated status.
Section 1
User Manual
Clave
PPI
S
P
HTR AIR
ALM
Upper Readout
Lower Readout
Alarm Status
ENTER Key
UP Key
DOWN Key
PAGE Key
Heater Status
Air Outlet Status
}
Lower Readout
Display Mode
Indicators
Clave
PPI
S P
HTR AIR ALM
Upper Readout
Lower Readout
Alarm Status
ENTER Key
UP Key
DOWN Key
PAGE Key
Heater Status
Air Outlet Status
Lower Readout Display
Mode Indicators
Lower Readout
Display Mode Indicators
Clave 96
Figure 1.1 (b) : 96 X 96 Version
