PR electronics 4510 - ATEX;UKEX Installation Drawing; ATEX;UKEX Installation Instructions

4510V100-UK 11
ATEX Installation Drawing
ATEX/UKEX Installation drawing
4500QA01-V1R0
Ex Certificates DEKRA 13ATEX0098 X
DEKRA 21UKEX0167X
Standards: EN IEC 60079-0
EN 60079-7
Marking: II 3G Ex ec IIC T5
Temperature range -20°C ≤ Ta ≤ +60°C
ATEX/UKEX Installation Instructions
For safe installation of the 4500 series of products the following must be
observed.

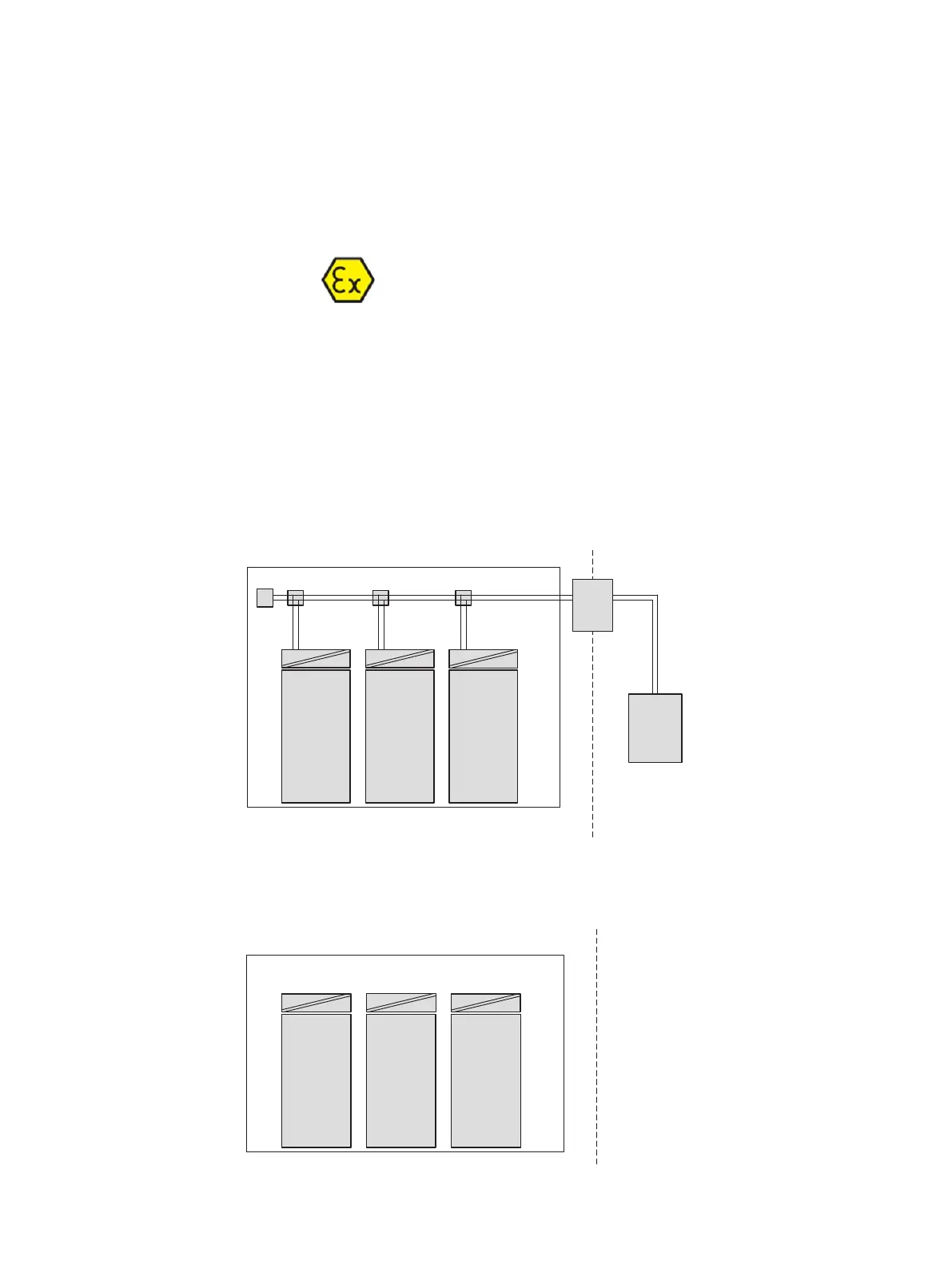

Unclassified Area
Hazardous Area
II 3G Ex IIC
PR
4000/9000
PR
4000/9000
PR
4000/9000
4511
4511
4511
IP 54
T
Gateway
PLC/DCS
HMI/PC
Modbus RTU
Unclassified Area
Hazardous Area
II 3G Ex IIC
PR
4000/9000
PR
4000/9000
PR
4000/9000
4510/
4512
IP 54
4510/
4512
4510/
4512
