PR electronics 4510 - IECEx Installation Drawing; IECEx Installation Instructions

IECEx Installation drawing 4500QI01-V1R0
Ex Certificates IECEx DEK 13.0026X
Standards: IEC 60079-0
IEC 60079-7
Marking: Ex ec IIC T5 Gc
Temperature range -20°C ≤ Ta ≤ +60°C
IECEx Installation Instructions
For safe installation of the 4500 series of products the following must be
observed.

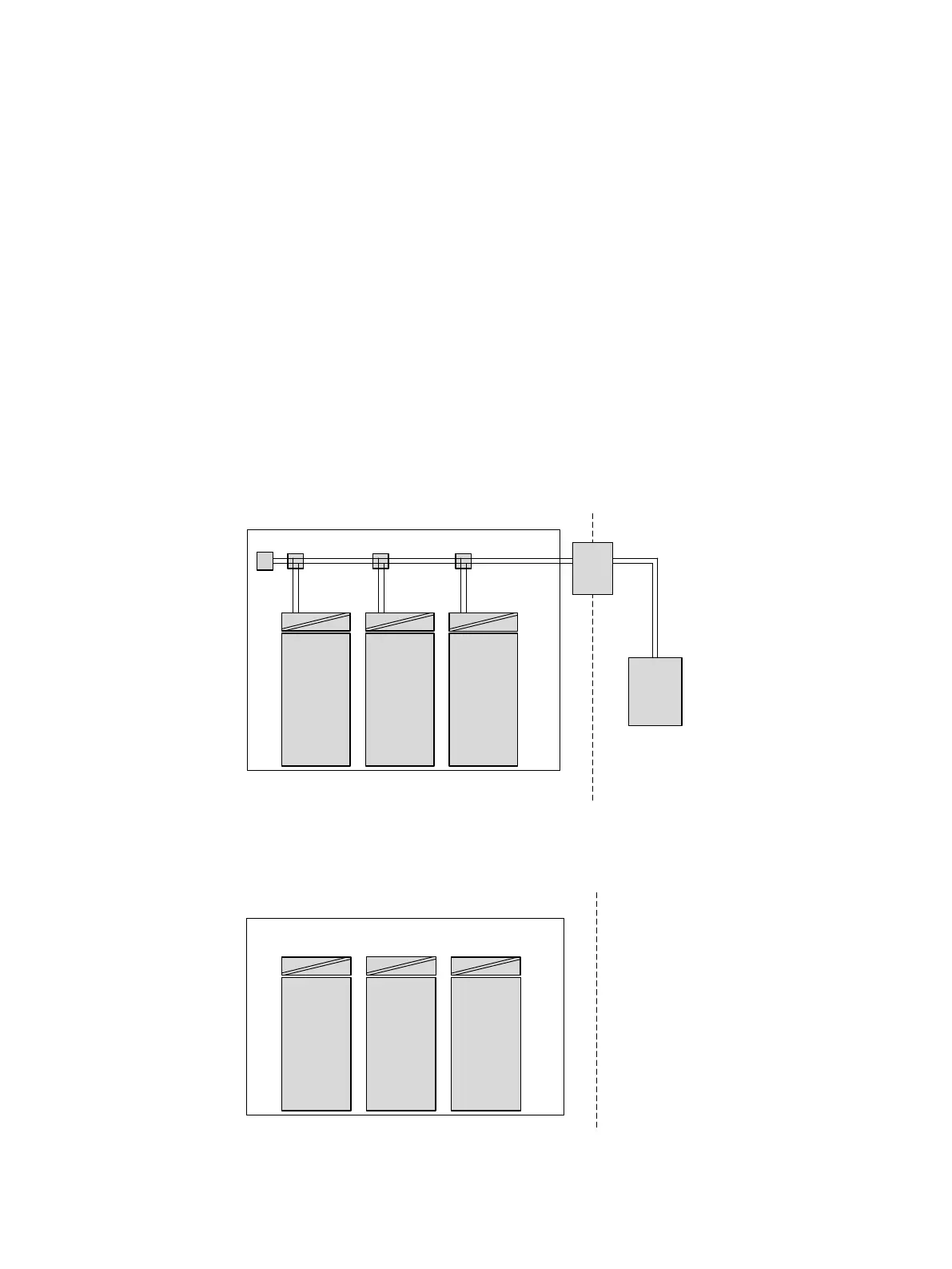

Unclassified Area
Hazardous Area
PR
4000/9000
PR
4000/9000
PR
4000/9000
4511
4511
4511
IP 54
T
Gateway
PLC/DCS
HMI/PC
Modbus RTU
Unclassified Area
Hazardous Area
PR
4000/9000
PR
4000/9000
PR
4000/9000
4510/
4512
IP 54
4510/
4512
4510/
4512
IECEx Installation Drawing
4510V100-UK 13
