HOW TO ADJUST DIPSWITCHES
AND DISPLAY OF CONNEXTIONS ON SYSTEM
5500
Picture 1 shows how to adjust the dipswitch configuration. Also, the connection
to Opto Link on the 5511 module is shown.
Picture 2 shows the connector to the programming unit Loop Link.
29
DECLARATION OF CONFORMITY
As manufacturer
PR electronics A/S
Lerbakken 10
DK-8410 Rønde
hereby declares that the following product:
Type: 5514
Name: Programmable LED indicator
is in conformity with the following directives and standards:
EMC directive 2004/108/EC and later amendments
EN 61326
This declaration is issued in compliance with article 10, subclause 1 of the EMC
directive. For specification of the acceptable EMC performance level, refer to
the electrical specifications for the module.
The Low Voltage directive 73/23/EEC and later amendments
EN 61010-1
The CE mark for compliance with the Low Voltage directive was affixed in the
year: 1997
Rønde, 23 March 2006 Peter Rasmussen
Manufacturer’s signature
28

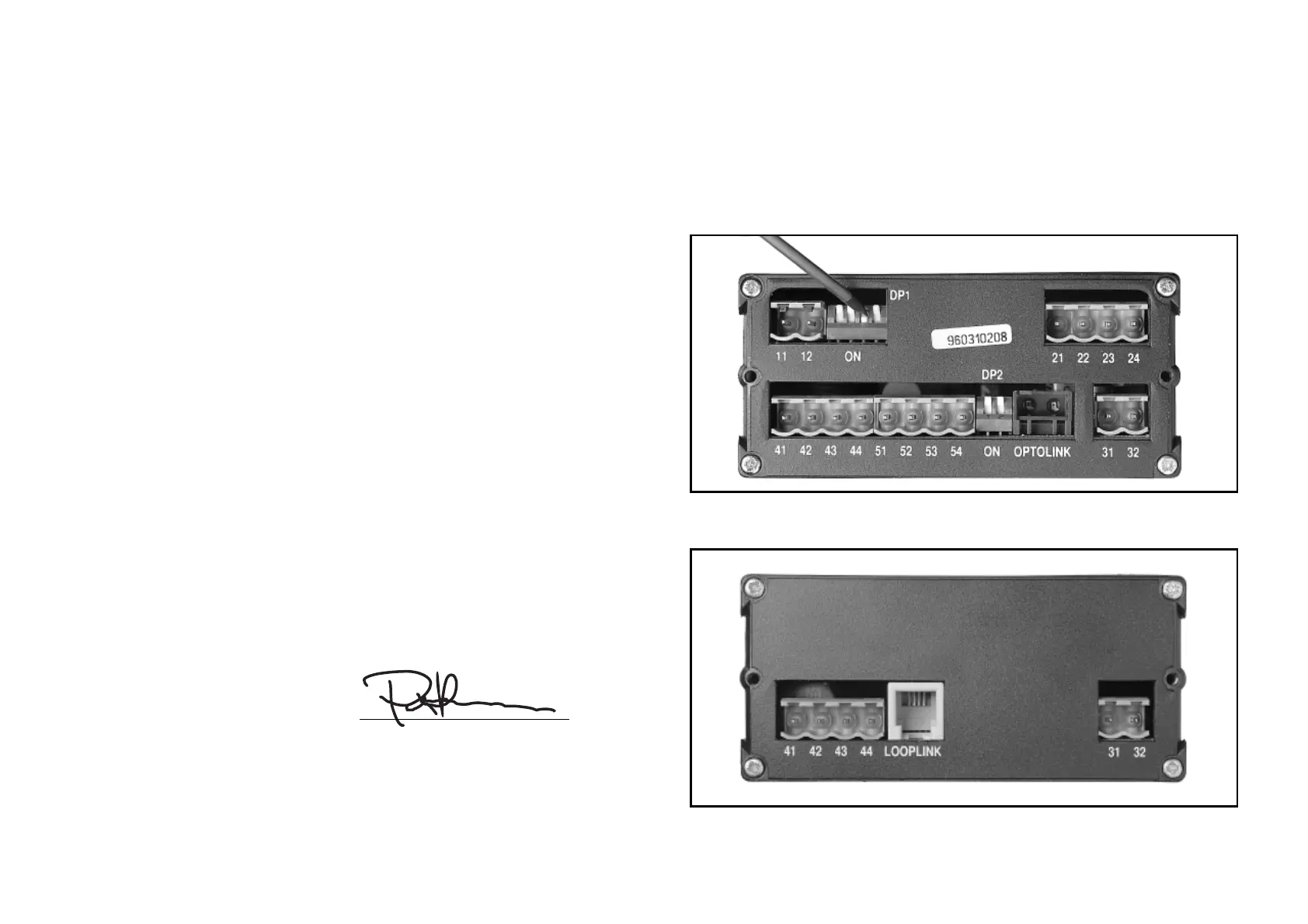

Picture 1: Adjustment of dipswitches and display of connections.
Picture 2: Connector to the programming unit Loop Link.
