When menu 4.1 has been selected for EFS - Enable Fast SETTING -, a fast set-
point change is possible by activating the Fast Setting function. In this menu, the
front keys have a special feature as
1 increases the setpoint and 3 decreases
the setpoint from the value it had when activated. Activating for more than 2 s
automatically activates the upcount / downcount function. The setpoint value is
displayed either in % or in display units depending on the selection in menu 4.3.
2 stores the displayed setpoint value.
1 Fast setting - Short cut key for changing the relay 1 setpoint.
3 Fast setting - Short cut key for changing the relay 2 setpoint.
Start by selecting % or display units in menu 4.3 as this is important for the entry
of the setpoint and hysteresis of the relays. When a set-up is sent from the PC
program PReset to the display with either one or both relays as inactive, relay
setting by way of the front keys is blocked.
0.0 Default - Scaled input value is displayed.
At power ON or if no keys have been activated for a period of 2 minutes,
the display returns to default.
1.0 rE 1 - SETTING OF PARAMETERS FOR RELAY 1.
In menu 4.3 entry of either % of input span or of display units is selec-
ted.
41
PROGRAMMING / OPERATING
THE FUNCTION KEYS

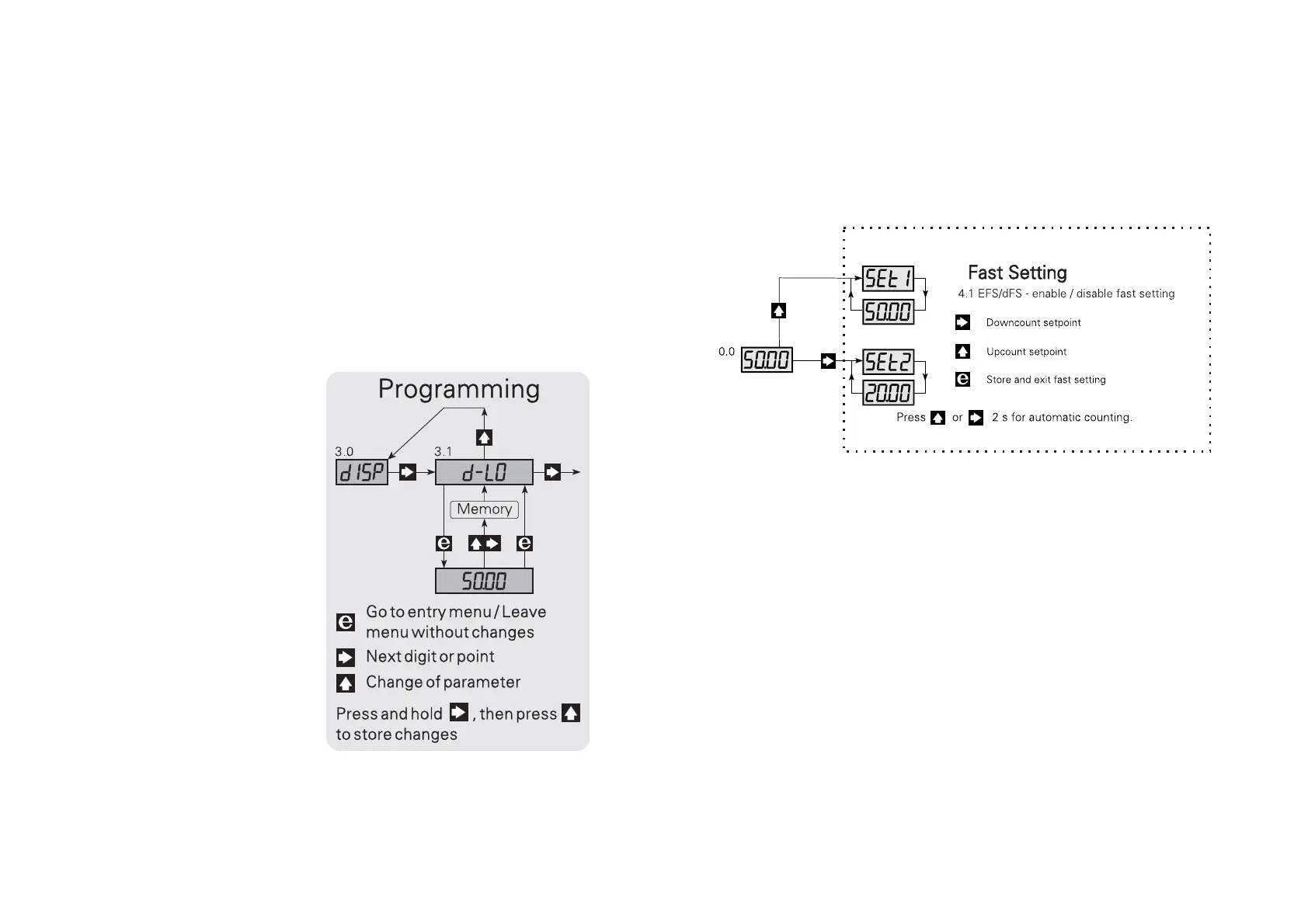

DOCUMENTATION FOR ROUTING DIAGRAM
GENERAL:
The programming is menu-controlled. The main menus are numbered in level 0
(X.0), and the submenus are numbered in level 1 (X.1...X.5). Each submenu has
an entry menu. The menus are structured in such a way that the menus most
frequently used are closer to the default menu 0.0. Please note that programming
is only possible when submenu 4.3 PAS has the value 0040.
Main, sub-, and entry menus are selected by the 3 function keys
2, 3, and 1 as
outlined in the routing diagram.
Activating
2 in the submenus will
display the present parameter value
in the entry menu.
In entry menus, the digit that can be
changed will flash.
Active digit position is shifted by the
3 key and changed by the 1 key.
In d-Pt menu 3.3, the position of the
decimal point can be changed by
the
1 key.
In entry menus with fixed para-
meters, you switch between the para-
meters by the
1 key.
Store by first activating the
3 key
and the
1 key simultaneously. Acti-
vate
2 to return to the previous menu
without changing the parameters.
40
