5/22

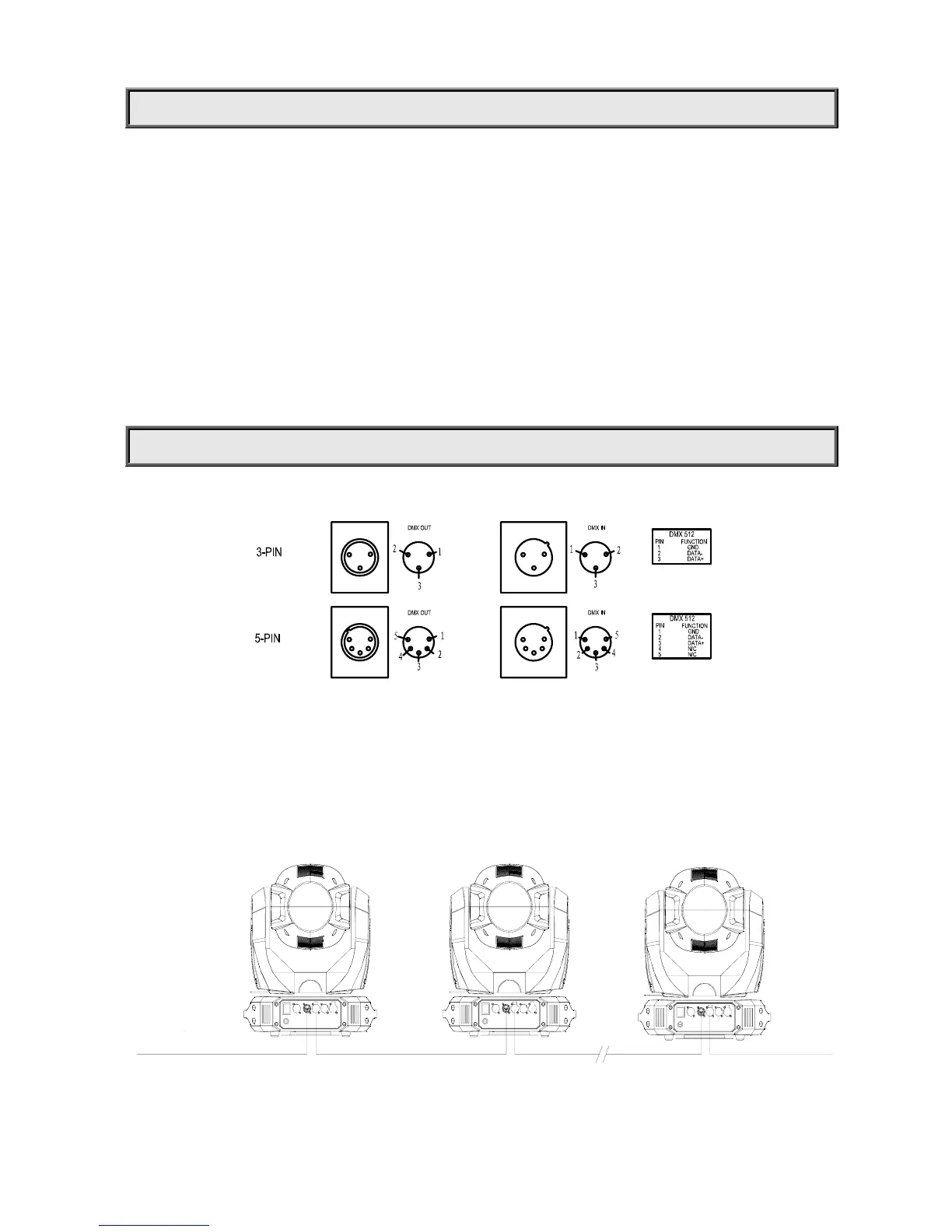

POWER SUPPLY-MAINS
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel
of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.
IMPORTANT
It is essential that each projector is correctly earthed(yellow/green twin wire) and the electrical installation conforms to all
relevant standards.
CONTROL CONNECTION
Connection between controller and projector and between one projector and another must be made with a 2 core-screened cable, with
each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not
connected in any way other than as shown above. The projector accepts digital control signals in protocol DMX512 (1990).
Connect the controllers output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input and connect
the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure below.
TO CONTROLLER
DMX512
DMX IN
DMX OUT
TO TERMINATER
DMX IN
DMX OUT
DMX IN
DMX OUT
