PR Lighting XR 200 BEAM User Manual

6/22

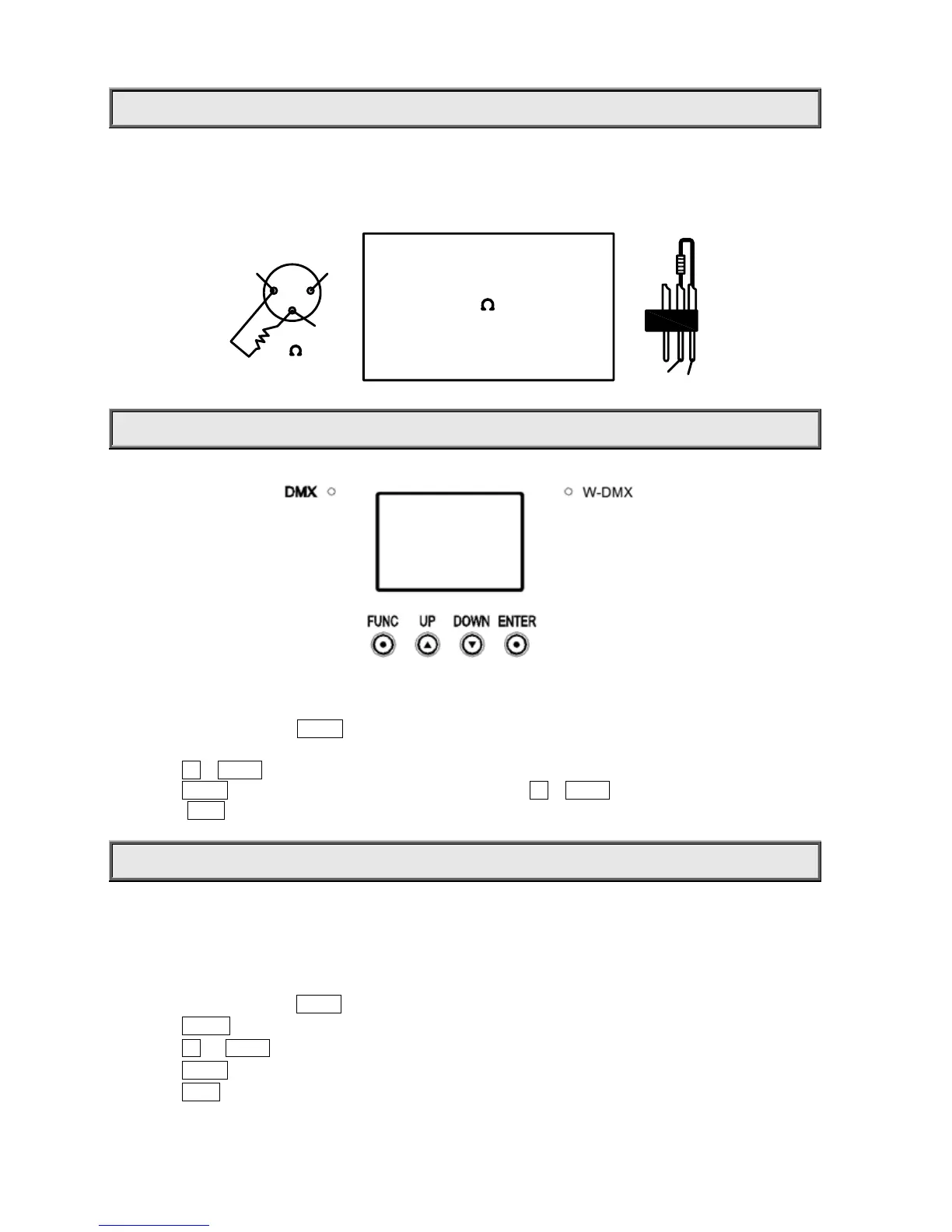

DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.
2
1
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
SETUP OPTIONS-PROJECTOR CONFIGURATION
Projector configuration can be set conveniently via switch button and LCD display. Turn the projector on and the LCD display will
show DMX address you set and save last time and it can be reset and saved again as you please.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel. After this, the display shows the projector’s function
menu and each option has its own sub-menus. Each menu stands for special function, see details as follows.
Press button UP or DOWN if you want to browse through the various Setup Options.
Press button ENTER to save your settings or enter the next menu. Press button UP or DOWN to change the values(plus or minus)
Press button FUNC, it will return to the upper menu one by one. If the button not pressed, defaulted will show display status
automatically.
TO SET THE DMX START ADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start
address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. XR 200 BEAM has 3 DMX modes. There are standard mode ,short mode and extended mode. For example standard
mode have 14 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 015, No. 3 projector’s address 029, No. 4
projector’s address 043, and so on.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel.
Press button
ENTER
to display DMX address;
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm; after powered next time, It will display latest values.
Press button FUNC, it will return to the upper menu one by one.
