PR Lighting XR 200 BEAM User Manual

7/22
STAND-ALONE MODE
Operate the projector without connecting a controller, enable the master mode in the operation panel, the projector
will run in Stand-Alone mode automatically.
MASTER/SLAVE MODE

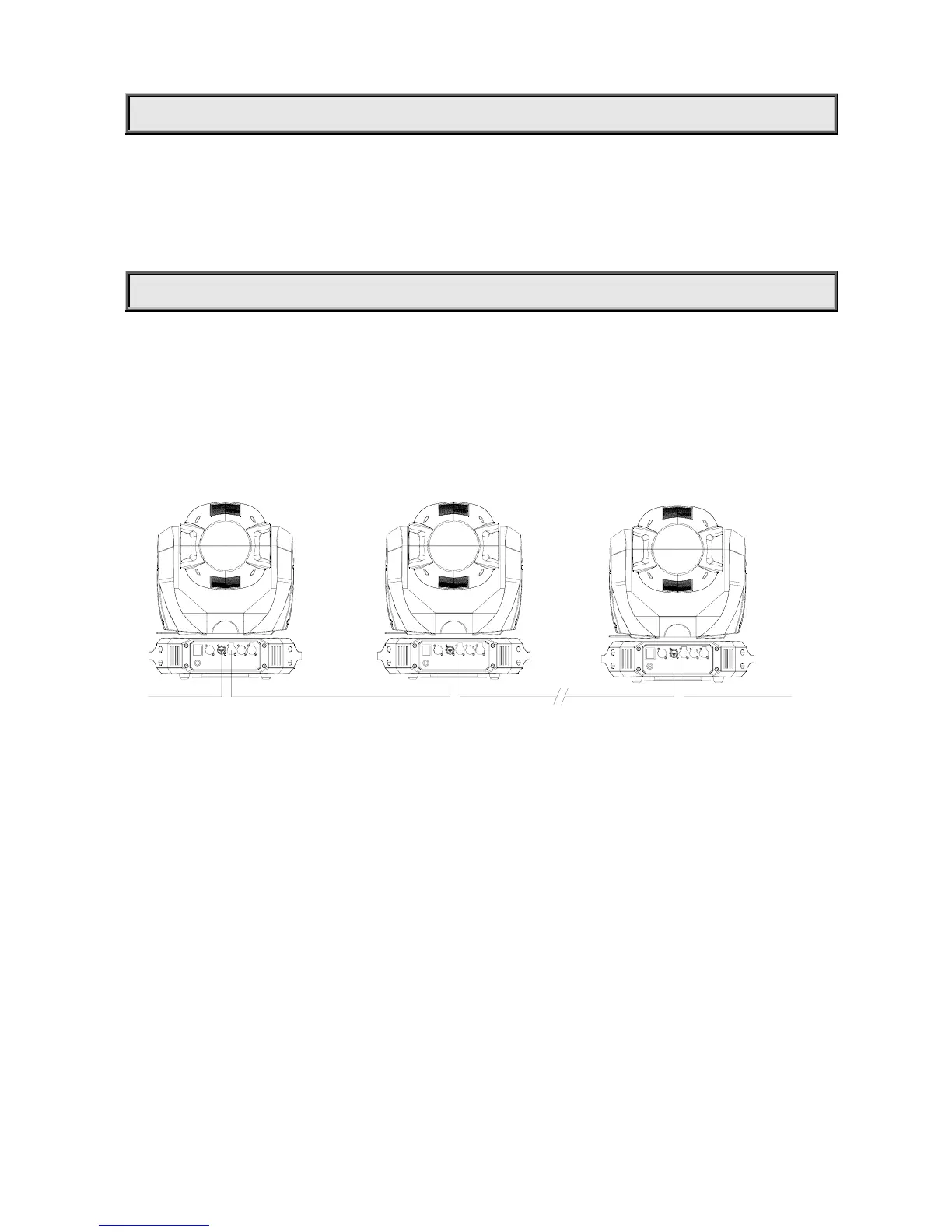

Without using a controller, many projectors can run synchronously in the Master/Slave mode by linking them with
each other. Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input
and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure
below. Then the first one is the master with setting options as master mode enabled, and others are slaves.
Start Address for all slaves is 001. The Master can run at any mode for the Master and Slaves run at the corresponding
mode compared to the Master.
After powered , the group will run at Master/Slave Mode.
.
INPUT
OUTPUT
MASTER
SLAVE
SLAVE
INPUT
OUTPUT
INPUT
DMX TERMINATOR
