22 Assembling and Maintaining AMT 800-Series Adaptive Motion Trainers
6. Place the flanges of the two side arm supports against the
sets of screw holes on the center support. Insert a
screwdriver through the middle holes in both flanges and
the center support to keep the screw holes aligned.
Note: Use narrow screwdrivers, such as #1 Phillips
screwdrivers, for this step. If necessary, use them to help
pull the side arm supports into place against the center
support.

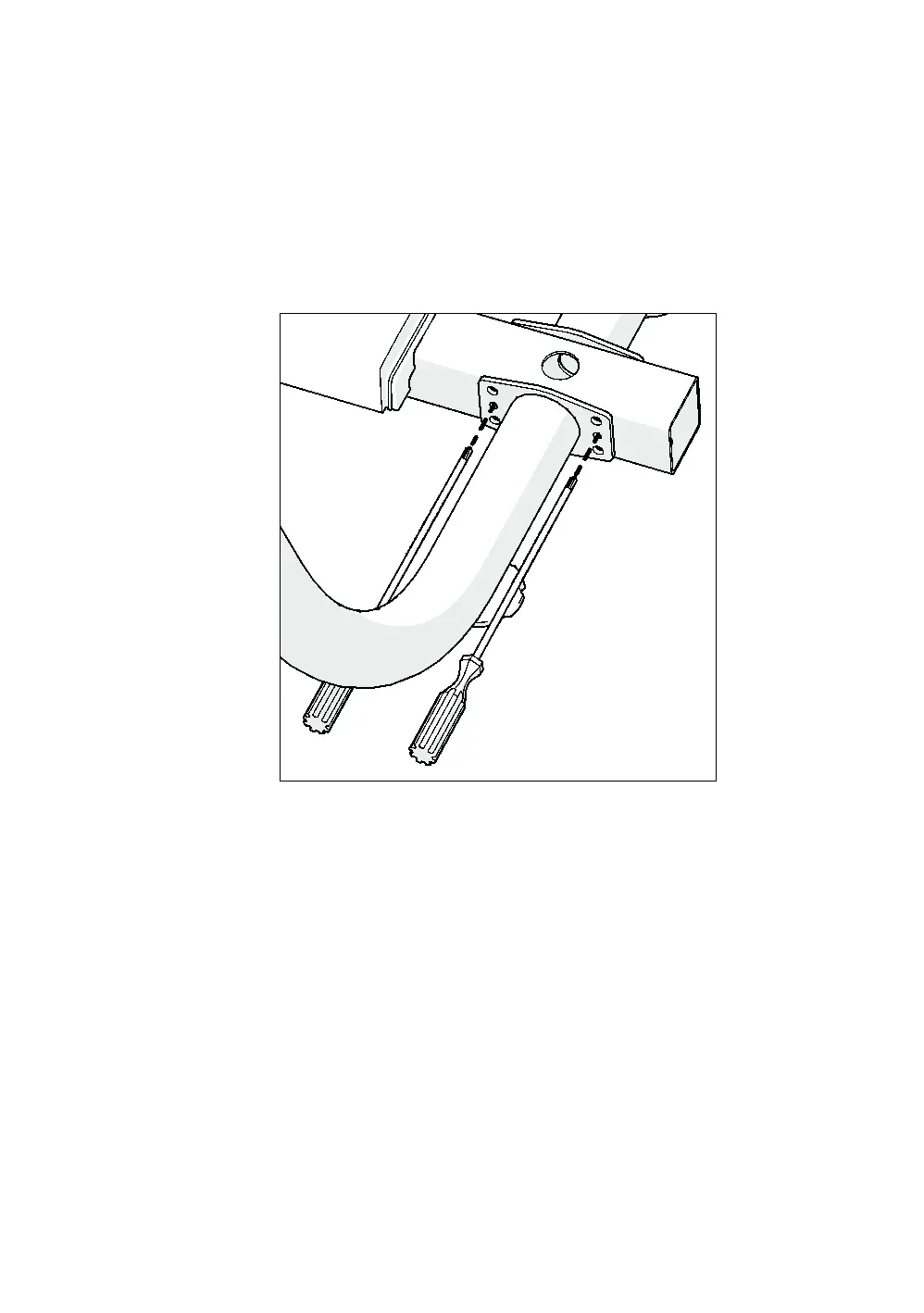

Figure 5: Lower side arm support alignment
7. Slide a ⁵₁₆-inch flat washer over each of the four ⁵₁₆-inch x
3¹₂-inch hex head bolts.
