Assembling the AMT 31
2. Remove the nut from the outward end of the television
cable coupler.
3. Insert the connectors into the jack plate at the lower front
of the AMT, as shown in the following figure and table.

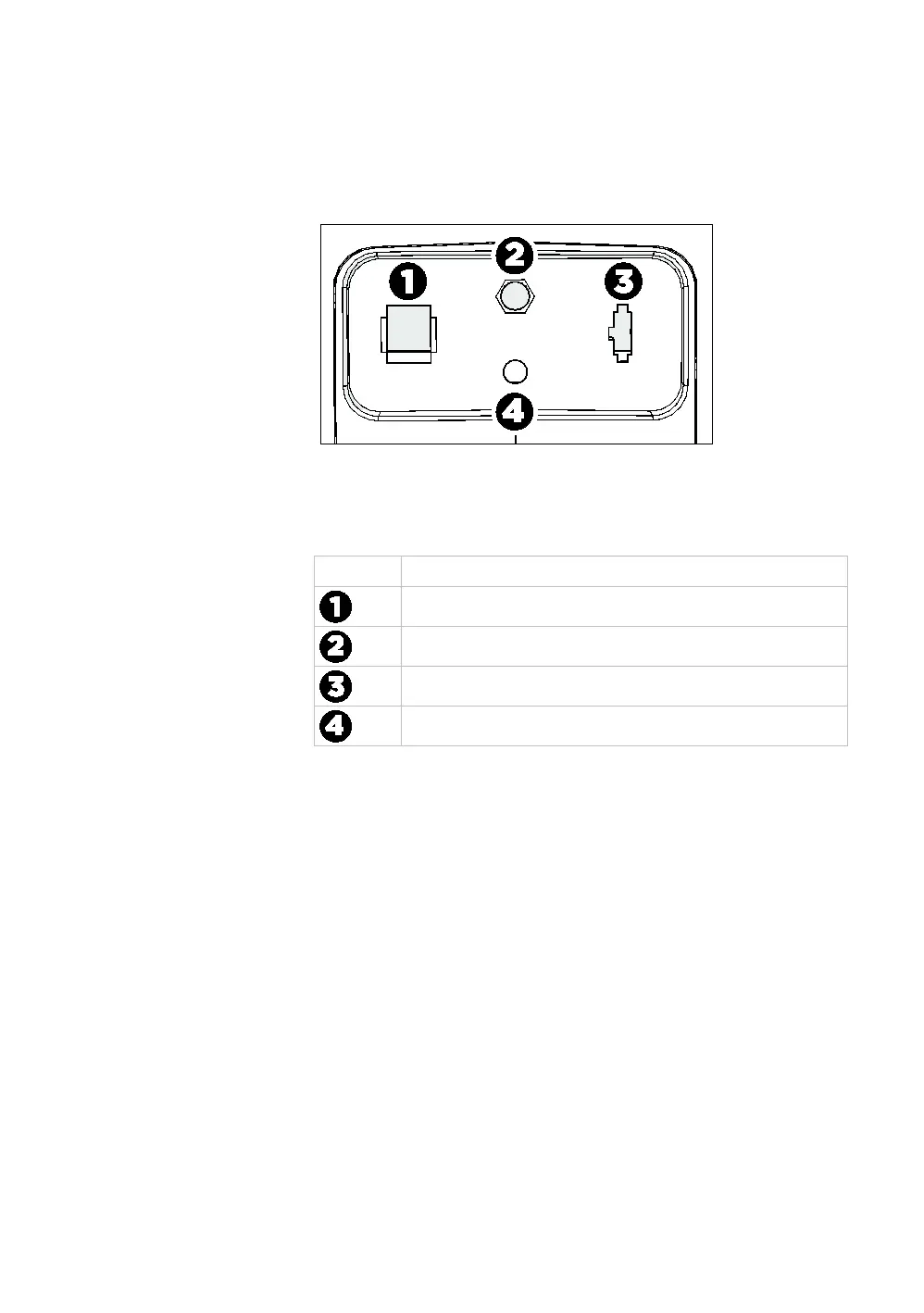

Figure 15: Jack plate layout
Table 1. AMT connector locations
Position Connector
Ethernet coupler (P80 console only)
Television cable coupler (P80 console only)
Console power cable (P80 console only)
External power connector for base unit (optional)
Important: In the following step, do not overtighten the
connector. Finger-tighten it until it is snug, then use the
wrench to tighten it only slightly (8 to 9 inch-pounds).
4. Replace the nut that you removed from the television
cable coupler in step 2, then tighten it slightly using a
⁷₁₆-inch open-end wrench.
5. Plug the Ethernet cable into the inside jack on the
Ethernet coupler.
6. Connect the television cable to the inside end of the
television cable coupler. Tighten the connector slightly
using a ⁷₁₆-inch open-end wrench.
