C966 Treadmill
Page 33

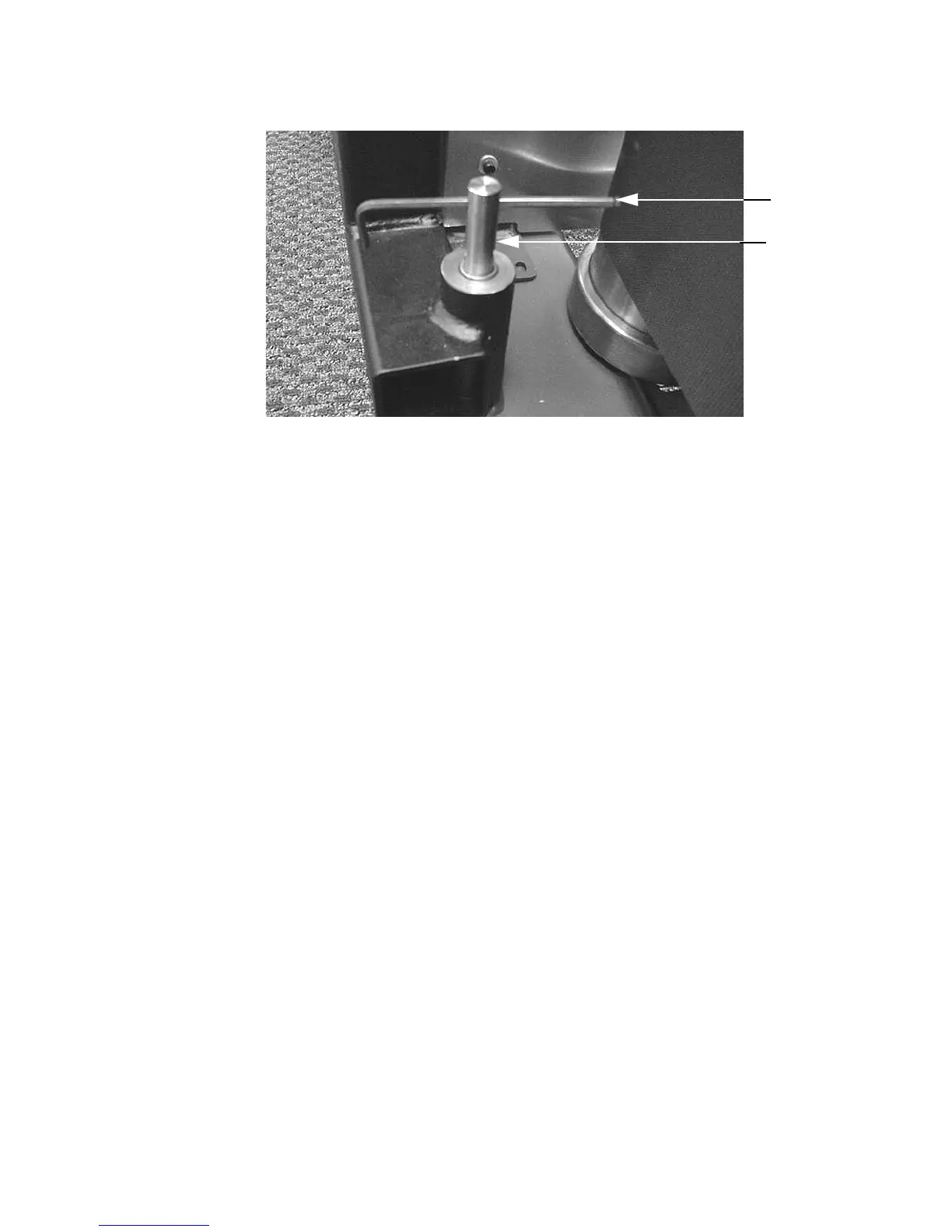

Diagram 6.2 - Lift Pin Removal
6. Pull the left hand (upper) lift pin out of the treadmill frame in the same manner as in step 5.
Remove the lift platform from the treadmill.
7. Remove both wheels from the lift platform and re-mount them on the replacement lift
platform.
8. Set the replacement lift platform in it’s mounting position. Slide the allen wrench into the
right hand lower lift pin alignment hole as shown in Diagram 6.2. Carefully, align the lift pin
with it’s mating bushing in the treadmill frame and tap the lift platform into the frame bushing
with a rubber mallet. The pin should be in as far as possible while still allowing the allen
wrench to be easily removed.
9. Slide the allen wrench into the left hand (upper) lift pin alignment hole and tap the lift pin into
its frame bushing as described in step 8.
10. Slide the retaining bolt into its mounting hole and apply slight inward pressure on the
retaining bolt. Rotate the lift pin using the allen wrench until you feel the retaining bolt “drop”
into its chamfered and threaded hole in the lift pin. Hand thread the retaining bolt into the lift
pin as far as possible. Care must be taken to ensure that you do not cross thread the
retaining bolt.
11. Hand thread the right hand (lower) retaining bolt into the lift platform as described in step 10.
12. Tighten both lift platform retaining bolts.
13. Fasten the lift motor tube to the lift platform with the clevis pin and hitch pin removed in step
3.
14. Check treadmill operation per Procedure 3.
15. Set the replacement lower power PCA in it’s mounting position. Note that the lip on the
lower power PCA heat sink fits over the center wall of the mounting bracket.
Allen
Wrench
Lift Pin
To Next Page
