Procedure 6.11 - Replacing the PROM
Anti-static kits (part number 20024-101) can be ordered from Precor.
1. The PROM and the associated printed circuit assembly (PCA) are static sensitive. Anti-
static devices must be used and all anti-static precautions must be followed during this
procedure.
2. Remove the printed circuit assembly per its associated procedure.
3. Currently we are using two styles of IC software packages. they are a 28 pin dual in line
package (DIP28) and a forty-four pin square package (PLCC44). Each of these packages
should be removed with a proper IC removal tool (see the illustrators below)
4. The IC’s may inserted into their socket by hand by carefully aligning the notch on the IC with
the notch on the IC socket and carefully pressing the IC into its socket. See the illustrations
below for the alignment notches. Care must be taken that the IC legs on a DIP28 are all
aligned in the socket to prevent the legs from bending when inserted. The PLCC44 IC must
be carefully aligned squarely in its socket or it will not insert. Do not force the IC into its,
socket. If it does not insert easily, remove the it and re-align it in its socket.

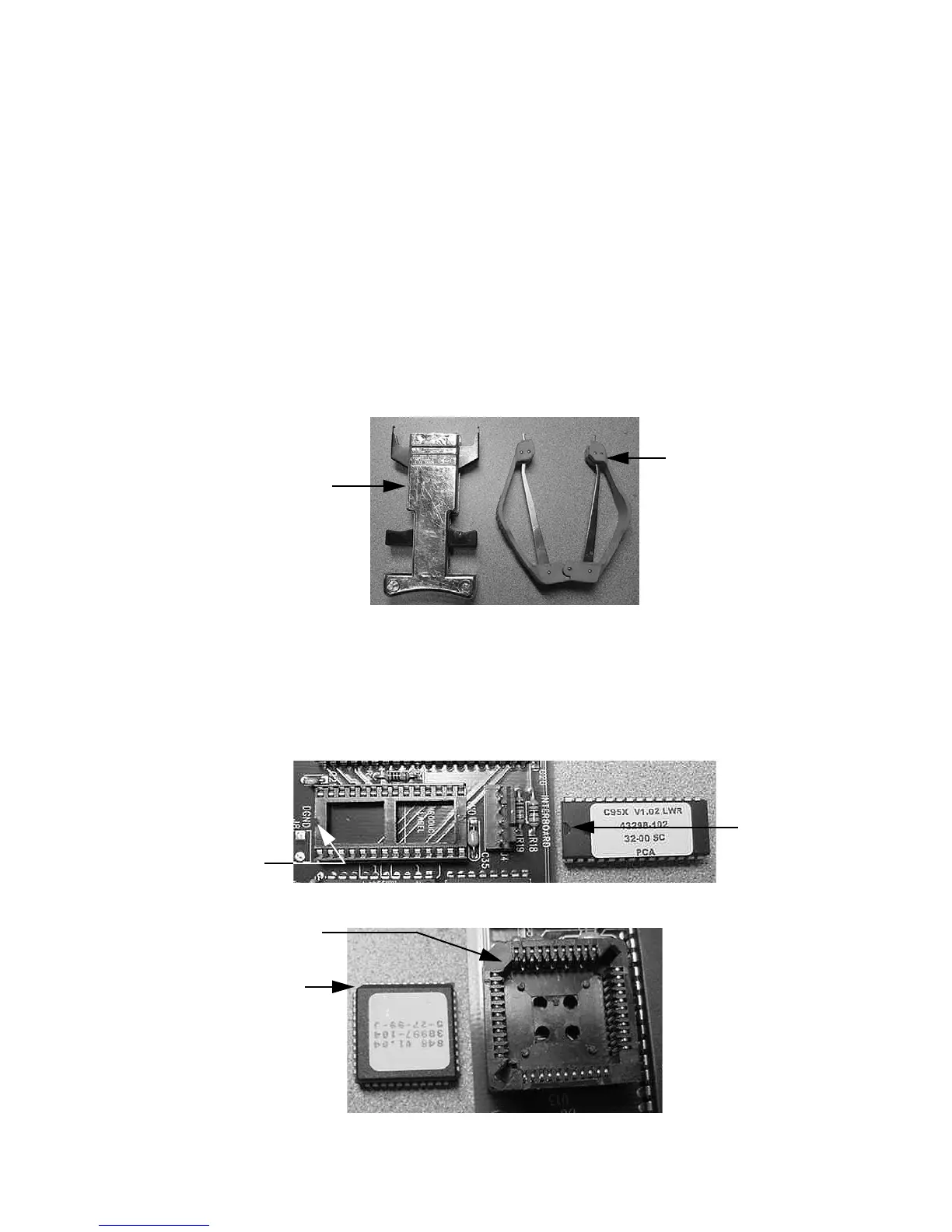

DIP28 removal tool
PLCC44 removal tool
Notch
Notch
DIP28
Notch
N
o
t
c
h
PLCC44

Precor C966 Specifications

Power

motor	4.0 hp continuous duty
power at 120 V	120 v @ 50/60Hz 20 Amps
power at 240 V	240v @ 50/60Hz 20 Amps

Performance

speed	0.5 to 16 mph (1 to 26 kph)
incline	- 3% to 15% grade
frame	Powder-coated steel

Weight and Dimensions

length	86 inches (218 cm)
width with handrails	37 inches (93 cm)
width without handrails	34 inches (86 cm)
height	59 inches (150 cm)
weight	375 lbs (170 kg)
shipping weight	470 lbs (213 kg)
running surface	60 inches x 20 inches (153 cm x 51 cm)
