Precor C966 Serivce Manual

C966 Treadmill
Page 42
Procedure 6.8 — Replacing the Drive Motor Cooling Fan
1. Set the treadmill circuit breaker in the “off” position and unplug the treadmill’s line cord from
the AC outlet.
2. Remove the hood.
3. Remove the drive motor per Procedure 6.4, steps 2-8.
4. Remove the four screws that mount the drive motor cooling fan to the drive motor. See
Diagram 6.8

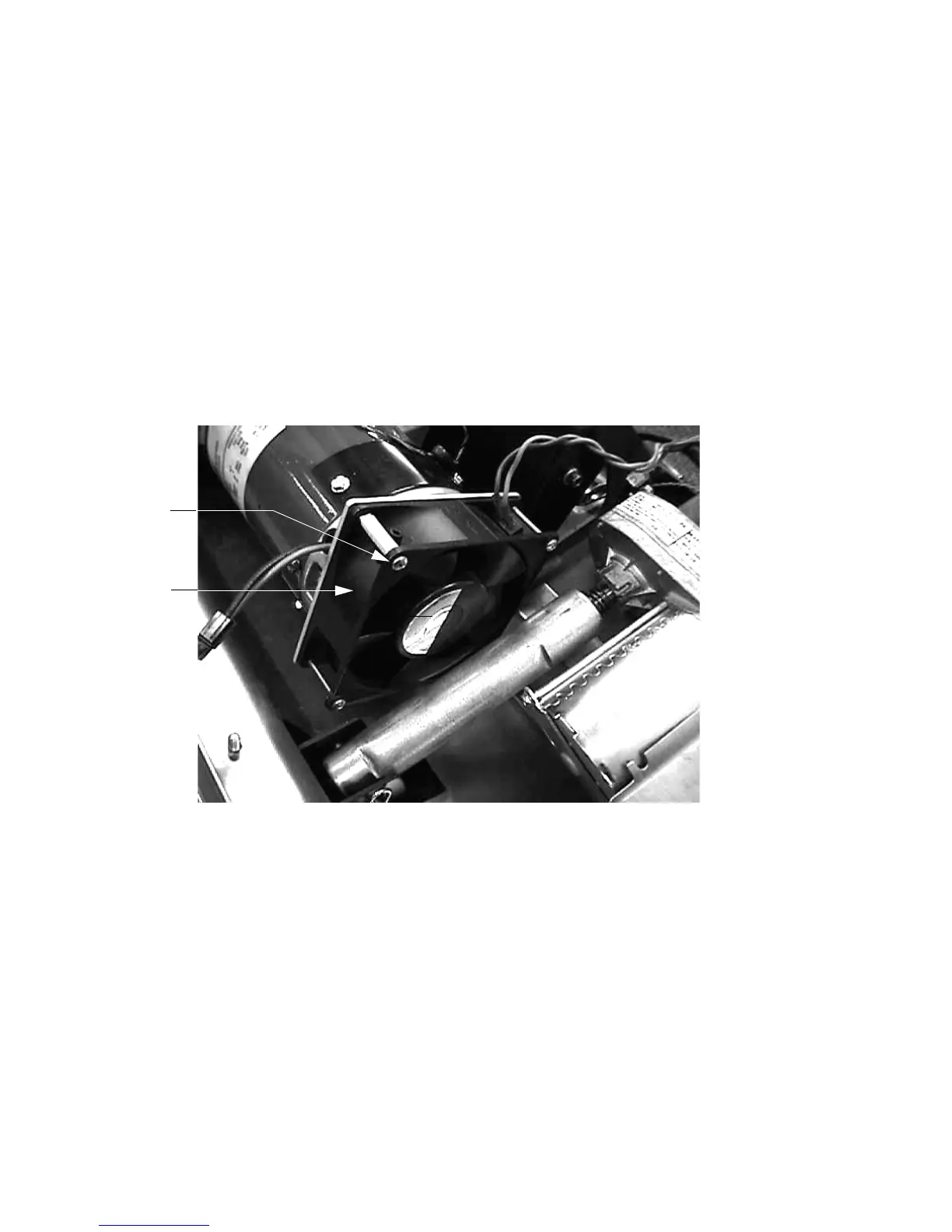

Diagram 6.8 — Drive Motor Cooling Fan Mounting
5. Set the replacement drive motor cooling fan at it’s mounting position on the drive motor and
fasten it with the hardware removed in step 4.
6. Replace the drive motor per Procedure 6.4, steps 11-15.
7. Check treadmill operation per Procedure 3.
Fan
Mounting
Screw

Precor C966 Specifications

Power

motor	4.0 hp continuous duty
power at 120 V	120 v @ 50/60Hz 20 Amps
power at 240 V	240v @ 50/60Hz 20 Amps

Performance

speed	0.5 to 16 mph (1 to 26 kph)
incline	- 3% to 15% grade
frame	Powder-coated steel

Weight and Dimensions

length	86 inches (218 cm)
width with handrails	37 inches (93 cm)
width without handrails	34 inches (86 cm)
height	59 inches (150 cm)
weight	375 lbs (170 kg)
shipping weight	470 lbs (213 kg)
running surface	60 inches x 20 inches (153 cm x 51 cm)
