Precor C966i Service Manual

C956i, C966i (Gen 06) Treadmill
Page 1-18 Page 18
Procedure 5.1 - Troubleshooting the Keypad and Upper PCA
Procedure
Note The red wire on the cables shown in Diagram 5.1 denotes pin 1. When these cables are
inserted into their connectors, the red wire must align with the pin 1 designation on the PCA.
1. Set the treadmill’s on/off switch in the “off” position. Remove the display back plate and
display face per Procedure 6.10.
2. If the message STUCK KEY is displayed when the treadmill is turned on, skip to step 23.
3. If a key does not function, skip to step 18.
4. If the display does not illuminate, continue with step 5.

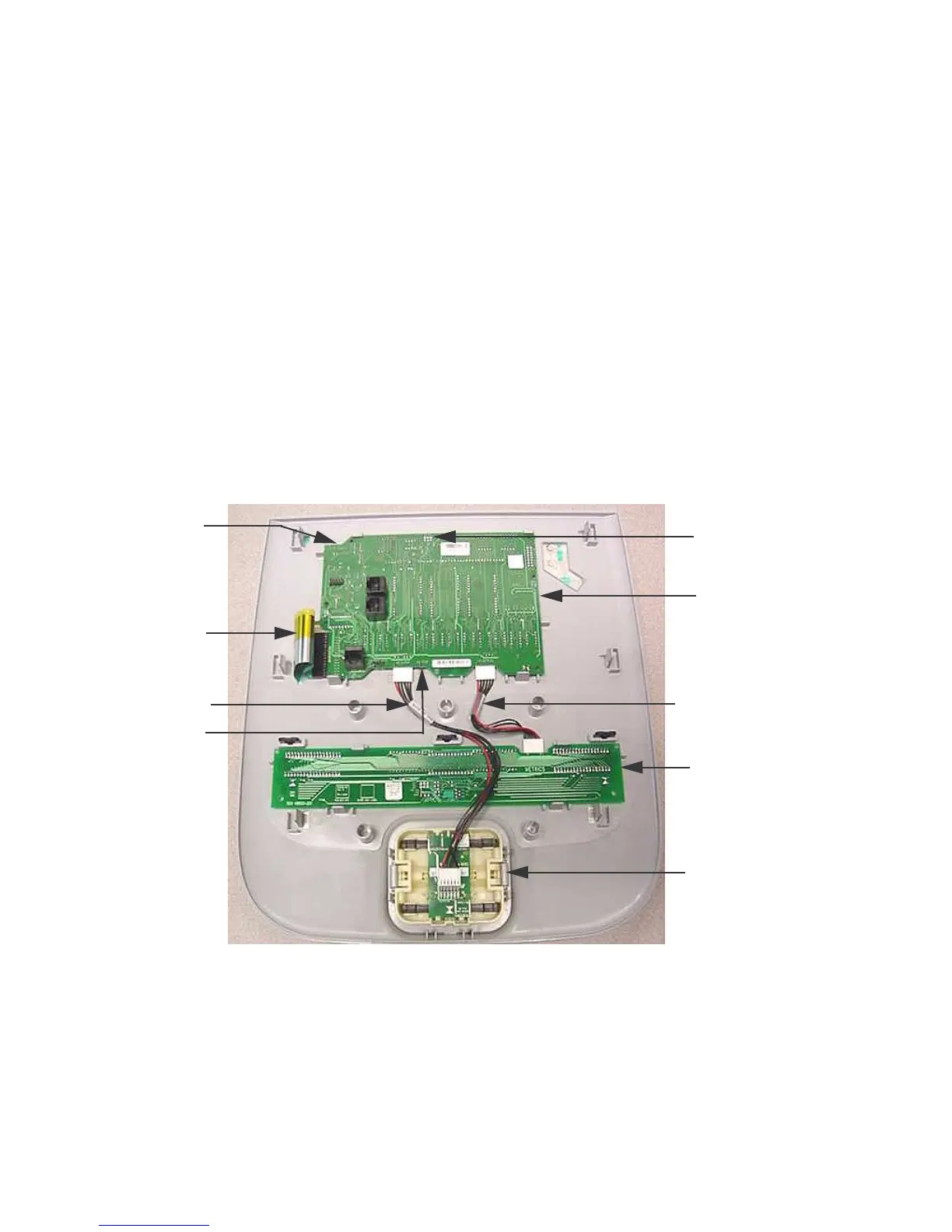

Diagram 5.1 - Display Face, Rear View
5. If the upper PCA is not illuminating, skip to step 12.
6. If the metrics PCA is not illuminating, continue with step 7.
7. Un-clip the metrics PCA from the display face and rotate it so that the front of the PCA is
visible. Set the treadmill’s on/off switch in the “on” position.
Upper PCA
Metrics PCA
D-Pad Assembly
Keypad Cable
Stop Switch
Connector
ISP Connector
J4
Entertainment
Connector
J1
D-Pad Cable
Metrics Cable

Precor C966i Specifications

Power and Motor

motor power	4.0 hp continuous duty
power requirements 120v	120 v @ 50/60Hz 20 Amps
power requirements 240v	240v @ 50/60Hz 20 Amps

Performance

speed range	0.5 to 16 mph (1 to 26 kph)
incline range	-3% to 15% grade

Weight and Dimensions

length	86 inches (218 cm)
width with handrails	37 inches (93 cm)
width without handrails	34 inches (86 cm)
height	59 inches (150 cm)
weight	375 lbs (170 kg)
shipping weight	470 lbs (213 kg)
running surface	60 inches x 20 inches (153 cm x 51 cm)
