Precor C966i Service Manual

C956i, C966i (Gen 06) Treadmill
Page 1-32 Page 32
Procedure 6.2 - Replacing the Incline Platform
1. Set the treadmill circuit breaker in the “off” position. Remove the AC line cord from the AC
outlet.
2. Carefully, lay the treadmill on its side.
3. Remove the hitch pin and clevis pin that fastens the incline motor tube to the incline
platform. While the incline tube is not fastened to the incline platform, care must be taken to
not allow the incline tube to rotate. If the incline tube rotates, the incline motor must be re-
calibrated per Procedure 4.1.
4. Remove the two large hitch pins (one each side) from the incline platform to frame
mounting. See Diagram 6.1. Remove the incline platform mounting pins and remove the
incline platform from the treadmill.

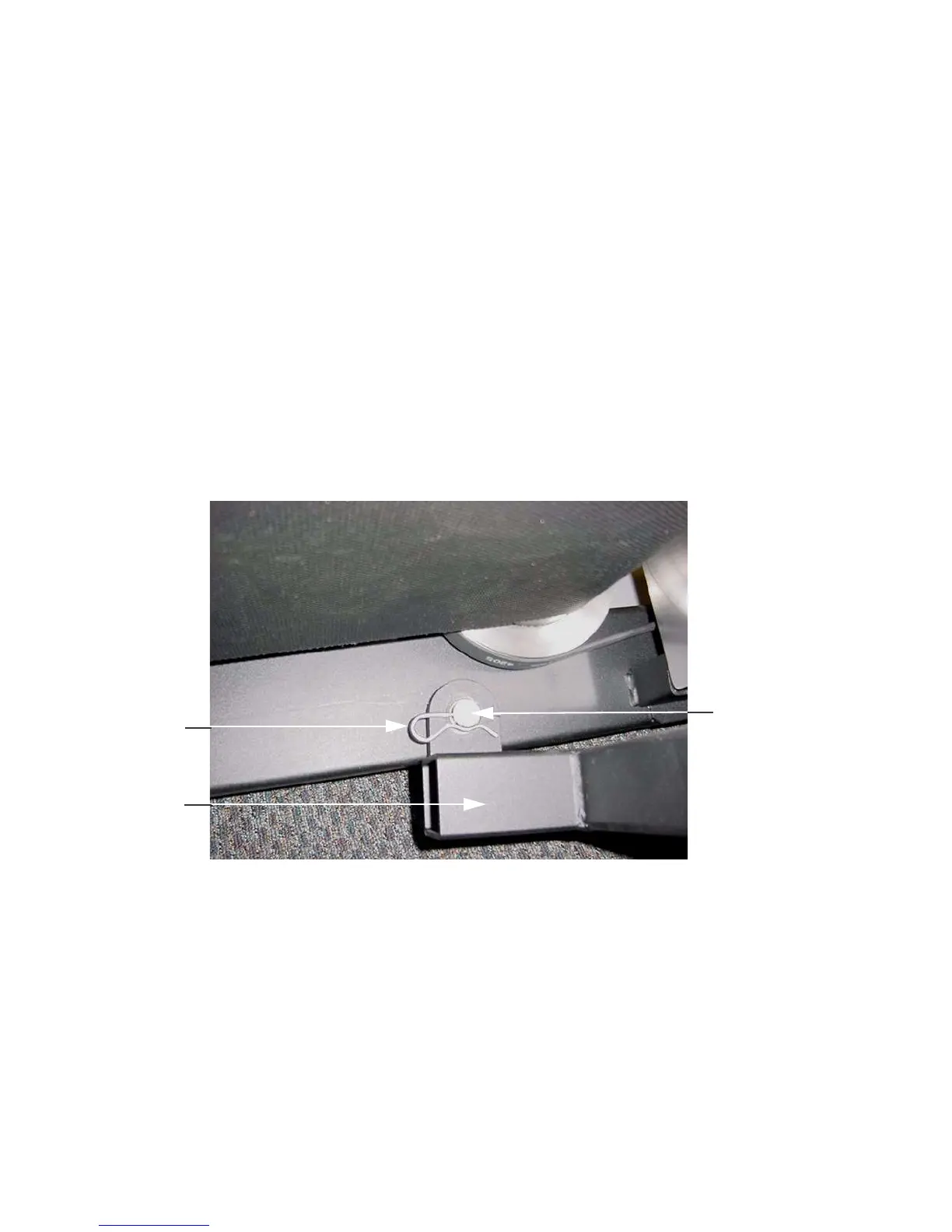

Diagram 6.1 - Incline Platform Mounting
5. Remove the wheels from the old incline platform and remount them on the replacement
incline platform.
6. Set the replacement incline platform in it mounting position. Align the key the incline
mounting pin with the keyway in the frame and slide the incline mounting pins into place.
See Diagram 6.2. Fasten the incline mounting pins with the hitch pins removed in step 4.
7. If the incline tube or the incline motor’s drive screw have been moved, re-calibrate the
incline motor per Procedure 4.1, at this time.
Mounting Pin
Hitch Pin
Incline
Platform

Precor C966i Specifications

Power and Motor

motor power	4.0 hp continuous duty
power requirements 120v	120 v @ 50/60Hz 20 Amps
power requirements 240v	240v @ 50/60Hz 20 Amps

Performance

speed range	0.5 to 16 mph (1 to 26 kph)
incline range	-3% to 15% grade

Weight and Dimensions

length	86 inches (218 cm)
width with handrails	37 inches (93 cm)
width without handrails	34 inches (86 cm)
height	59 inches (150 cm)
weight	375 lbs (170 kg)
shipping weight	470 lbs (213 kg)
running surface	60 inches x 20 inches (153 cm x 51 cm)
